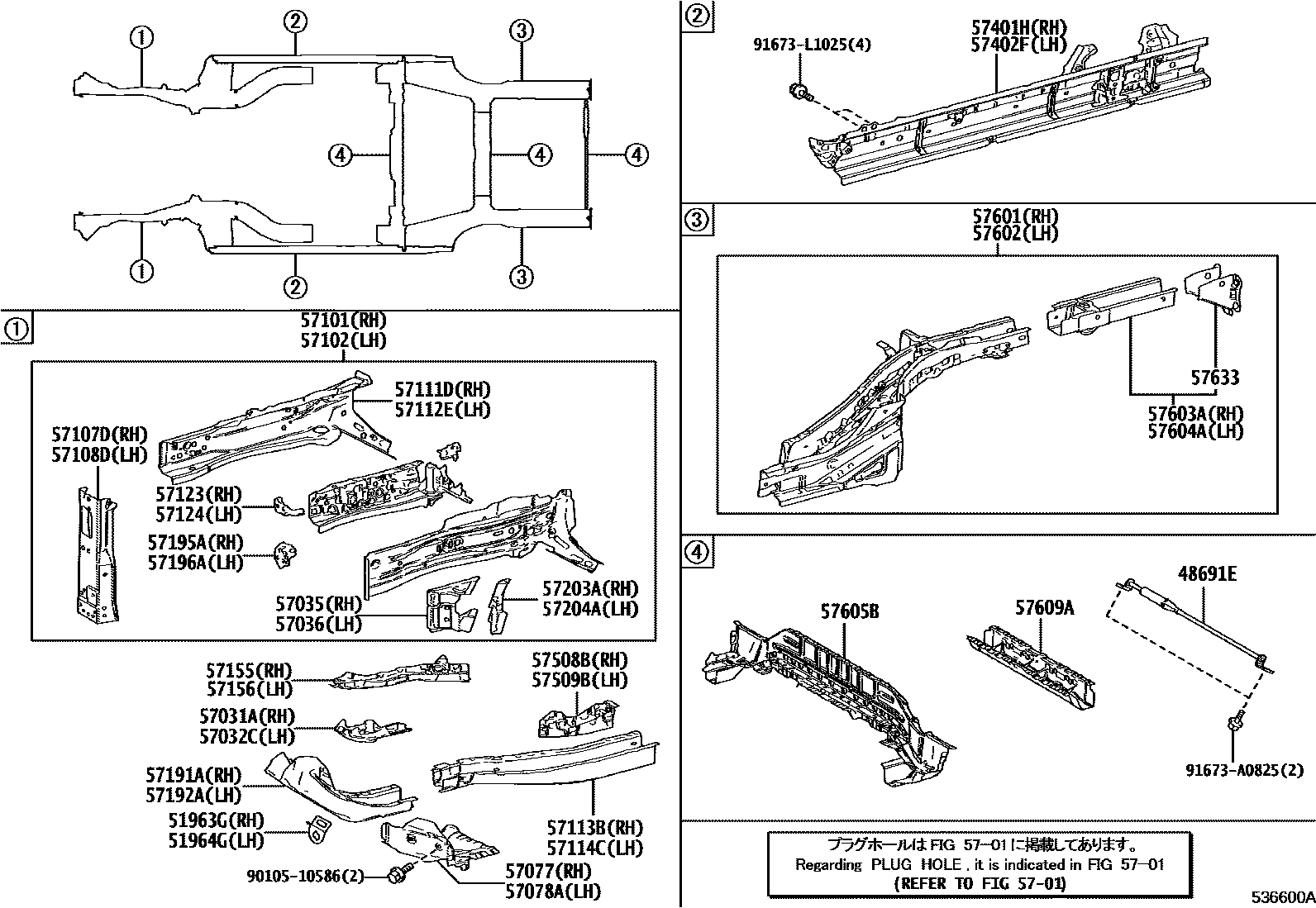

FLOOR SIDE MEMBER

48691EDAMPER, SUSPENSION TOWER

main48691-76050iKMA10¥26,200202102

51963GHOOK, TRANSPORT, FRONT RH

main51093-10020iKMA10¥1,040202102

51964GHOOK, TRANSPORT, FRONT LH

main51094-10010iKMA10¥1,040202102

5701

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-76010iKMA10¥3,420202102

57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-76010iKMA10¥3,420202102

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47021iKMA10¥2,470202102

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47031iKMA10¥2,640202102

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47041iKMA10¥4,110202102

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47041iKMA10¥4,110202102

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10910iKMA10¥30,500202102

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10910iKMA10¥29,200202102

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-10020iKMA10¥5,300202102

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-10020iKMA10¥5,300202102

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iKMA10¥9,200202102

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iKMA10¥9,200202102

57113BMEMBER, FRONT SIDE, OUTER RH

main57113-76010iKMA10¥9,800202102

57114CMEMBER, FRONT SIDE, OUTER LH

main57114-76010iKMA10¥9,800202102

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iKMA10¥1,220202102

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iKMA10¥1,220202102

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57053-76020iKMA10¥3,520202102

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57054-76020iKMA10¥3,500202102

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-76010iKMA10¥8,100202102

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-76010iKMA10¥8,100202102

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iKMA10¥1,030202102

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iKMA10¥1,030202102

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-47011iKMA10¥2,470202102

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47011iKMA10¥2,470202102

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-76021iKMA10¥17,100202102

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-76031iKMA10¥17,100202102

57508BREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-76010iKMA10¥3,160202102

57509BREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-76010iKMA10¥3,160202102

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-76901iKMA10¥44,800202102

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-76901iKMA10¥44,800202102

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-76010iKMA10¥10,200202102

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-76010iKMA10¥10,200202102

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-76020iKMA10¥14,200202102

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-76010iKMA10¥12,100202102

57633EXTENSION, REAR FLOOR SIDE MEMBER

main57633-76010iKMA10¥3,180202102

9010510586

main90105-10586¥100

91673A0825

main91673-A0825¥100

91673L1025

main91673-L1025¥120

42 parts on this diagram · 1 diagram in section
