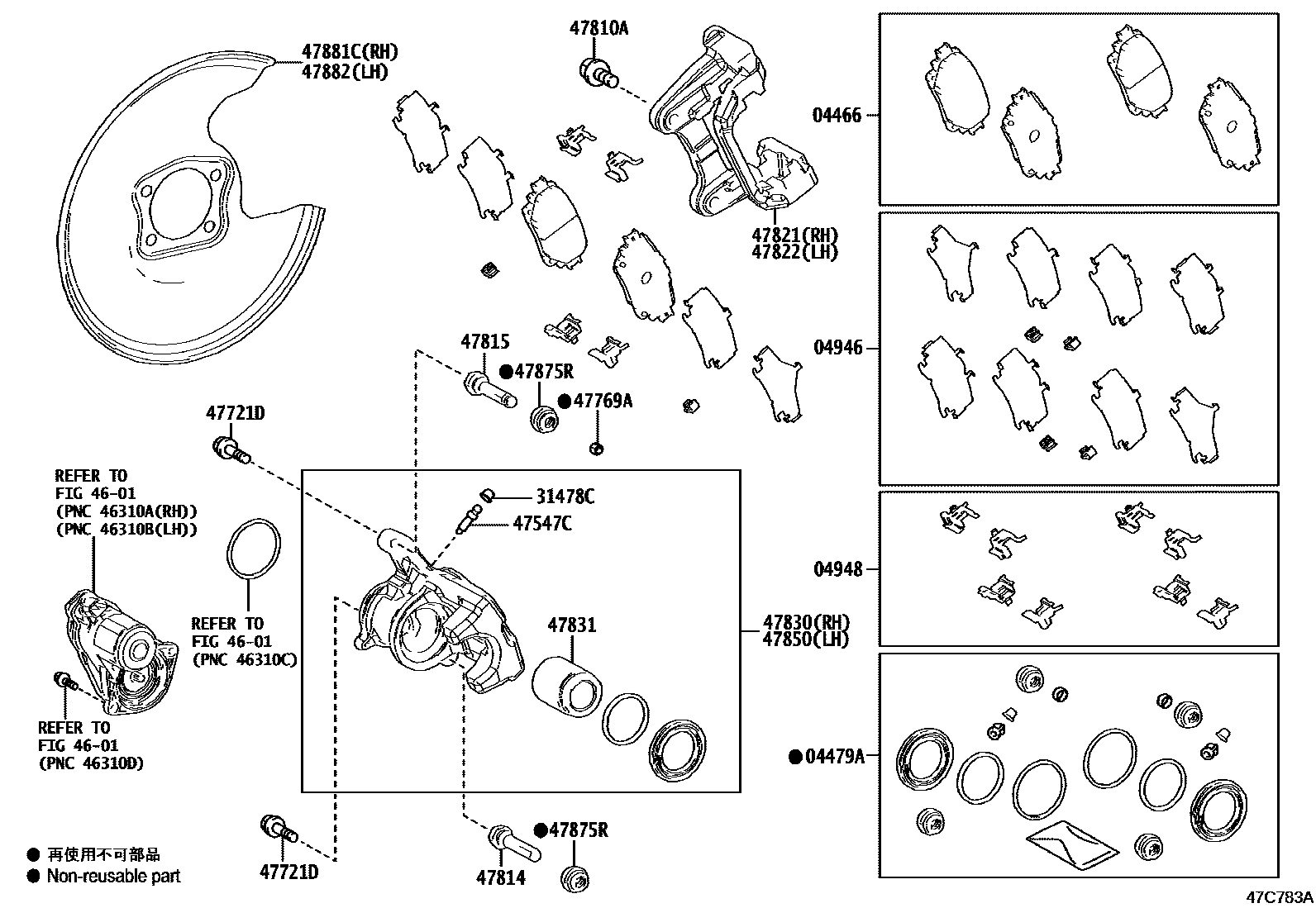

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-F4020iKMA10¥6,600202102

sub04466-30410¥6,600

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110iKMA10¥2,200202102

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-F4020iKMA10¥1,780202102

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iKMA10¥1,730202102

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iKMA10¥160202102

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iKMA10¥200202102

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iKMA10¥270202102

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iKMA10¥50202102

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14212iKMA10¥190202102

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iKMA10¥510202102

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iKMA10¥510202102

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42110iKMA10¥4,780202102

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42100iKMA10¥4,780202102

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-42100iKMA10¥26,100202102

47831PISTON, REAR DISC BRAKE

main47831-42100iKMA10¥1,170202102-202210

main47831-58040iKMA10¥1,060202210

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42090iKMA10¥26,100202102

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iKMA10¥70202102

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-42040iKMA10¥1,240202102

47882COVER, DISC BRAKE DUST, REAR LH

main47882-42040iKMA10¥1,240202102

20 parts on this diagram · 1 diagram in section
