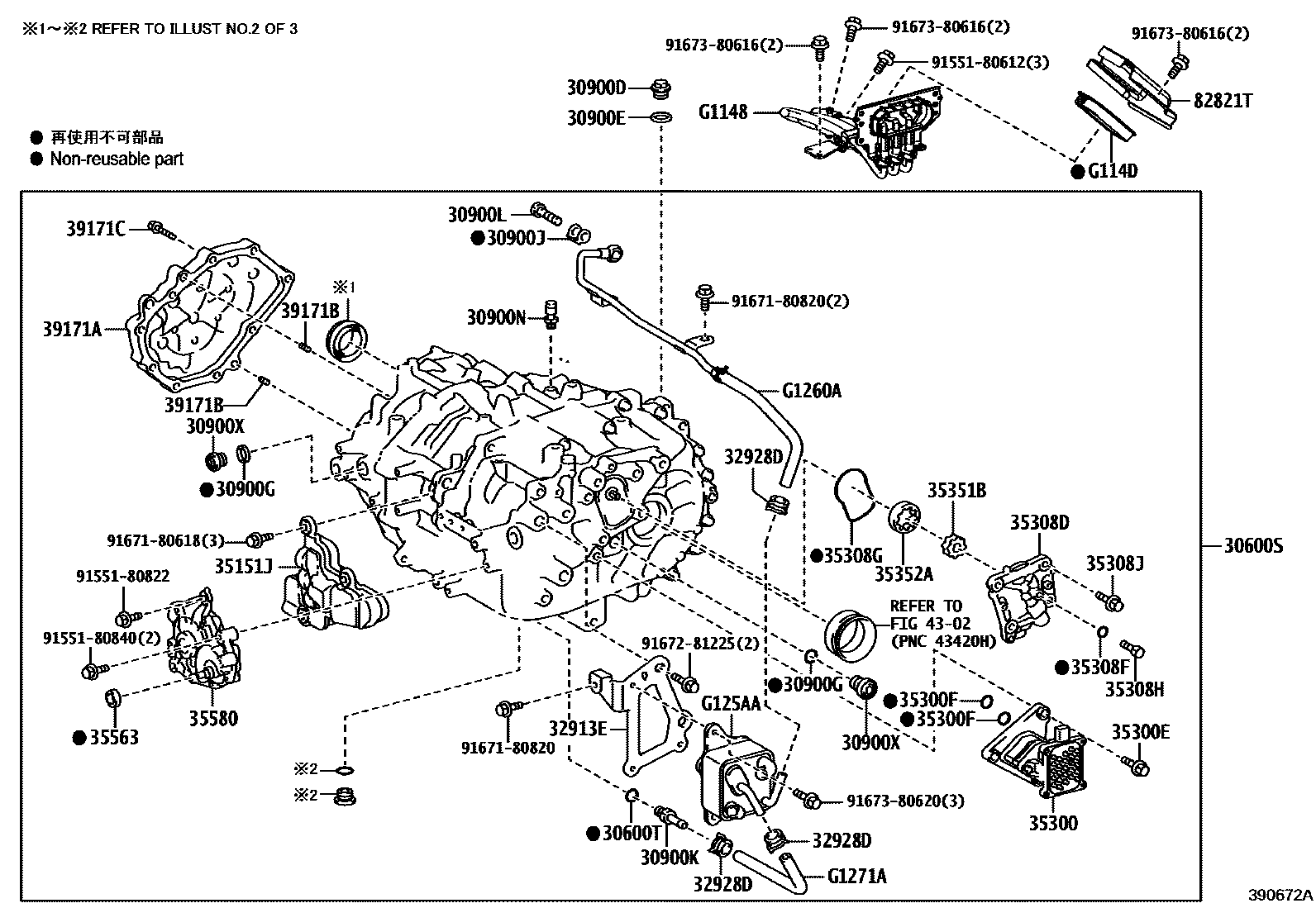

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30600STRANSAXLE ASSY, EV W/MOTOR
sub30600-76020
30600TO RING, TRANSAXLE CASE, NO.1
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900JGASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900LUNION(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900XPLUG, W/HEAD STRAIGHT SCREW, NO.5(TRANSAXLE HOUSING & CASE)
32913EBRACKET, TRANSMISSION OIL COOLER, NO.1
32928DCLAMP, FLEXIBLE HOSE, NO.1
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35300PUMP ASSY, OIL W/MOTOR
35300EBOLT(FOR TRANSMISSION OIL PUMP)
35300FO RING(FOR TRANSMISSION OIL PUMP)
35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35308JBOLT(FOR TRANSMISSION OIL PUMP COVER)
35351BROTOR, TRANSAXLE OIL PUMP DRIVE
35352AROTOR, TRANSMISSION OIL PUMP DRIVEN
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
39171ACOVER, TRANSAXLE
39171BPIN, STRAIGHT(FOR TRANSAXLE COVER)
39171CBOLT(FOR TRANSAXLE COVER)
4302
82821TCOVER, CONNECTOR
G1148CABLE, MOTOR
G114DCAP, MOTOR CABLE TERMINAL
G125AACOOLER, MOTOR COOLING
G1260APIPE ASSY, MOTOR COOLING, NO.2
G1271AHOSE, MOTOR COOLING, NO.1
9155180612
main91551-80612
9155180822
main91551-80822
9155180840
main91551-80840
9167180618
main91671-80618
9167180820
main91671-80820
9167281225
main91672-81225
9167380616
main91673-80616
9167380620
main91673-80620
43 parts on this diagram · 3 diagrams in section
