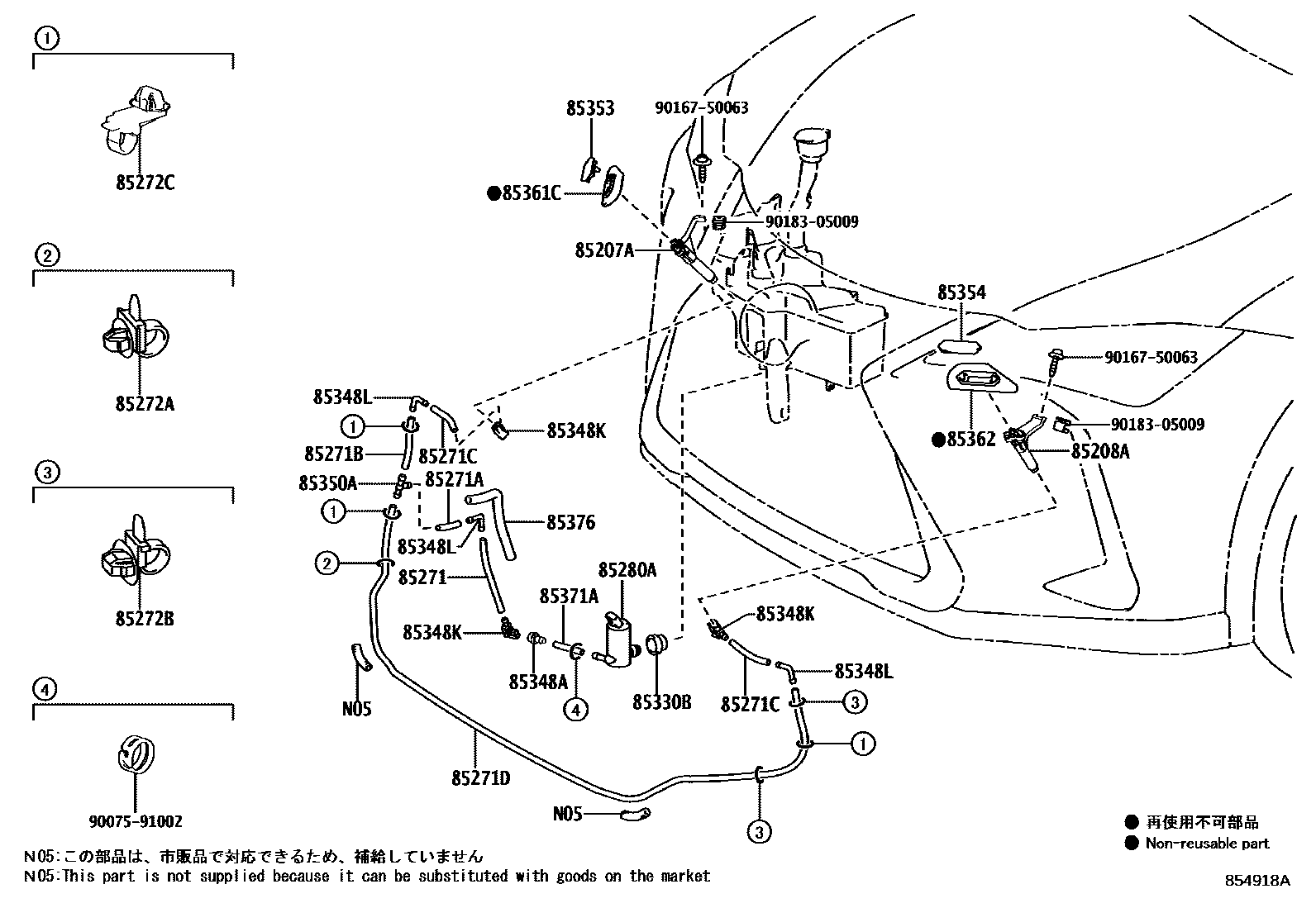

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271BHOSE, HEADLAMP CLEANER, NO.3
85271DHOSE, HEADLAMP CLEANER, NO.5
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85353COVER, HEADLAMP WASHER, RH
85354COVER, HEADLAMP WASHER, LH
85362BRACKET, WASHER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
9007591002
main90075-91002
9016750063
main90167-50063
9018305009
main90183-05009
25 parts on this diagram · 2 diagrams in section
