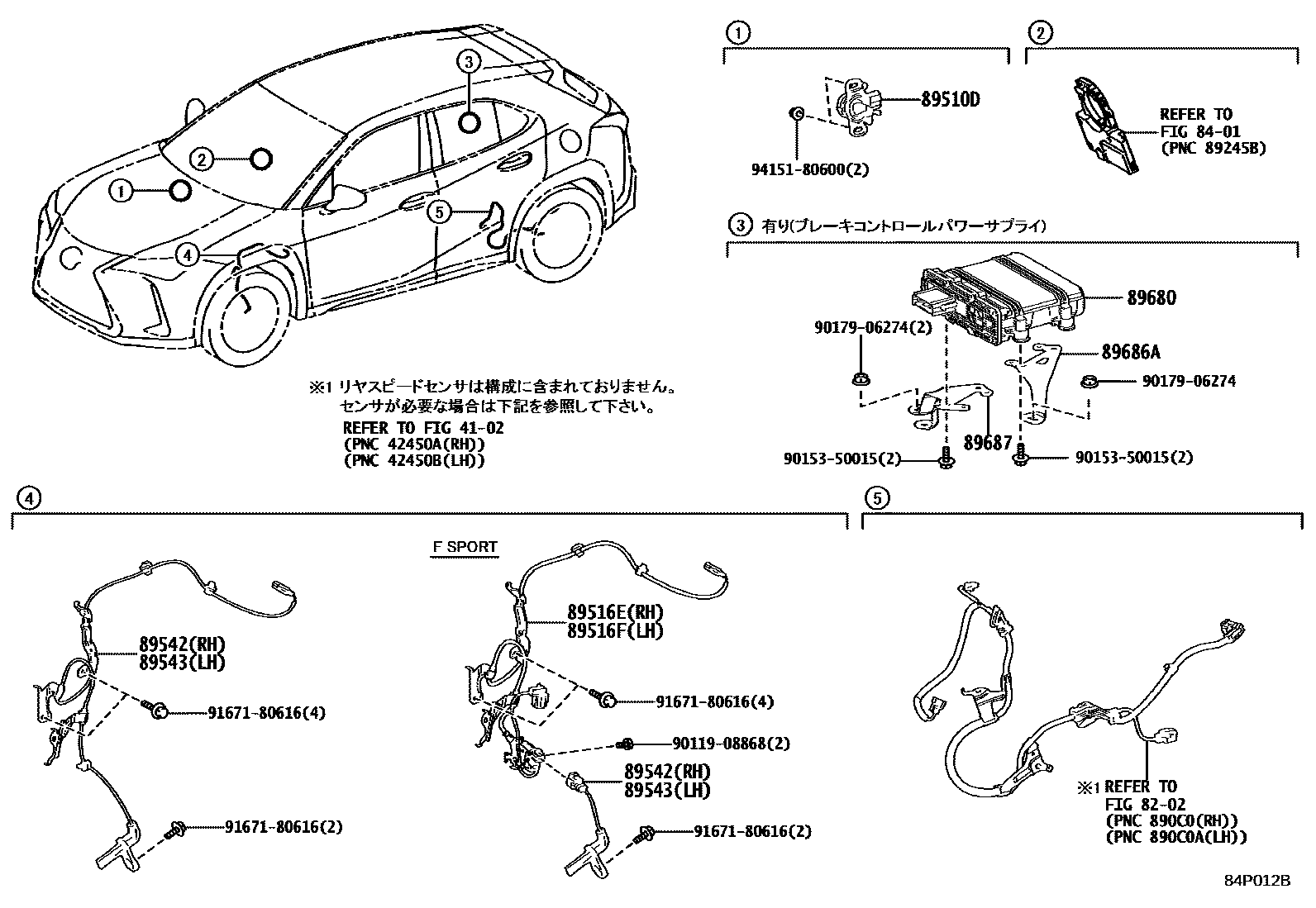

ABS & VSC

0001 1 0002 1

4102

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iKMA10202401-202512

main89510-47030iKMA10202207-202401

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-76010iMZAH11,16202401

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-76020iMZAA10,MZAH10,15202207

89542SENSOR, SPEED, FRONT RH

main89542-76010iKMA10202207-202401

main89542-12140supersedes 89542-76010iMZAH11,16202401

89543SENSOR, SPEED, FRONT LH

main89543-76010iKMA10202207-202401

main89543-12140supersedes 89543-76010iMZAH11,16202401

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iKMA10202401-202512

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-76010iKMA10202401-202512

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-76010iKMA10202401-202512

9011908868

main90119-08868

9015350015

main90153-50015

9017906274

main90179-06274

9167180616

main91671-80616

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
