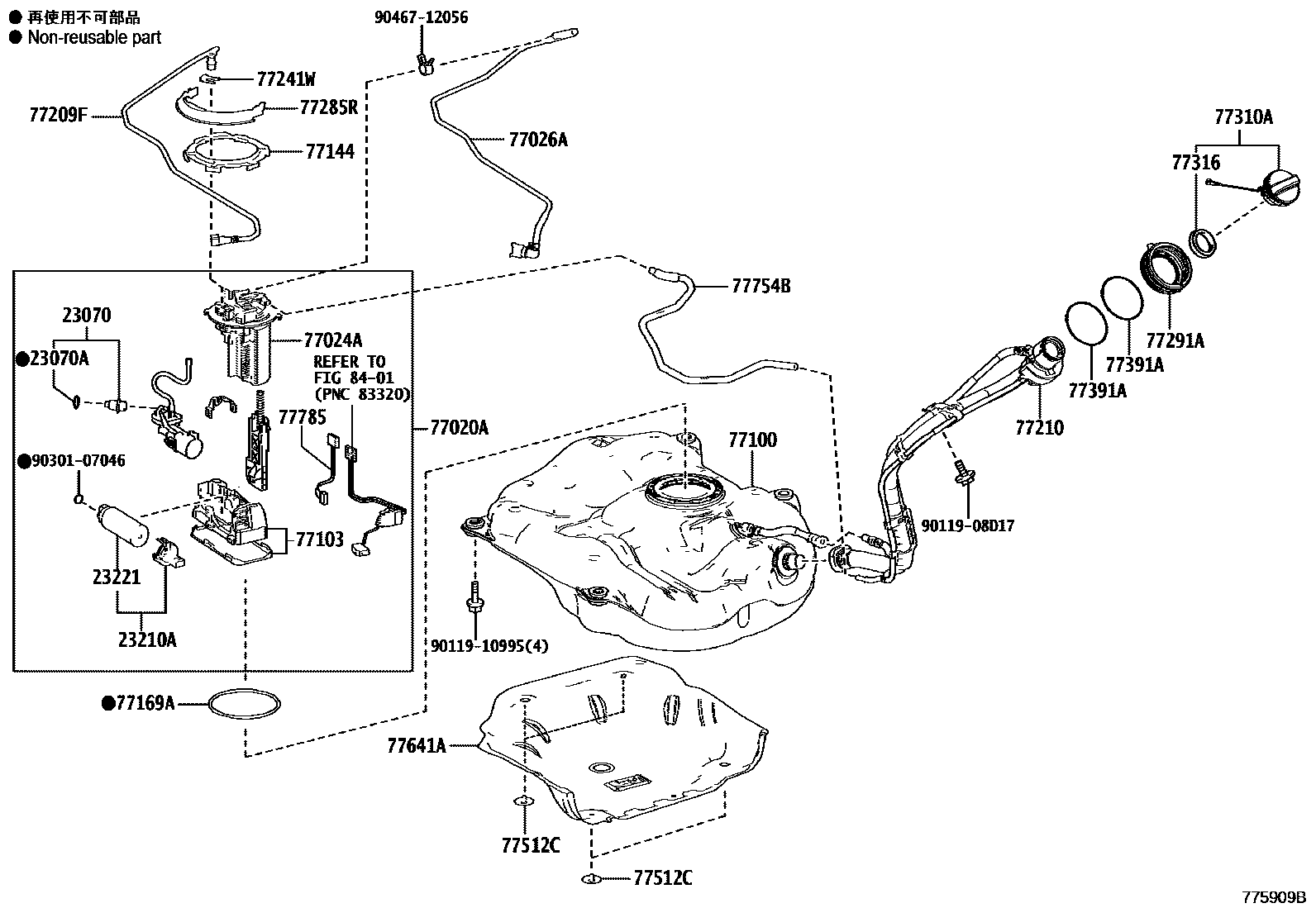

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1���������� 0004 1���������� 0005 1���������� 0006 1��������������

23070VALVE ASSY, FUEL MAIN

main23070-24010iM20#..MZAA10,MZAH10,15202207

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM20#..MZAA10,MZAH10,15202207

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-24010iM20AFXS..MZAH11,16202207

23221PUMP, FUEL

main23221-24010iM20#..MZAA10,MZAH10,15202207

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-76040iMZAH10,15202207

main77020-76060iMZAA10202207

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-12380iMZAH10,15202207

main77024-76030iMZAA10202207

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-10040iMZAA10202207

main77026-47040iMZAH10,15202207

77100TANK ASSY, FUEL

main77001-76210iMZAH11,16202207

main77001-76240iMZAA10202207

77103SUB-TANK SUB-ASSY, FUEL

main77103-42090iMZAA10,MZAH10,15202207

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZAA10,MZAH10,15202207

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iMZAA10,MZAH10,15202207

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-76031iMZAA10202207

main77209-76050iMZAH10,15202207

77210PIPE ASSY, FUEL TANK FILLER

main77210-76100iMZAH11,16202207

77241WCLIP, TUBE JOINT

main77241-60550iMZAA10,MZAH10,15202207

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iMZAH10,15202207

main77285-76010iMZAA10202207

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47040iMZAA10,MZAH10,15202207

77310ACAP ASSY, FUEL TANK

main77300-12020iMZAH11,16202310

main77300-48020iMZAA10,MZAH1#202207-202310

77316GASKET, FUEL TANK CAP

main77316-52040iMZAA10,MZAH10,15202310

main77316-75020iMZAA10,MZAH1#202207-202310

77391ARING, FUEL INLET BOX

main77391-12020iMZAA10,MZAH10,15202207

77512CBRACKET, FUEL TANK

main77512-35140iMZAA10,MZAH10,15202207

77641APROTECTOR, FUEL TANK, NO.1

main77606-76020iMZAH11,16202207

main77641-76040iMZAA10202207

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-47090iMZAH11,16202207

main77754-76020iMZAA10202207

77785HARNESS, FUEL PUMP

main77785-76010iMZAA10,MZAH10,15202207

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9030107046

main90301-07046

9046712056

main90467-12056

28 parts on this diagram · 6 diagrams in section
