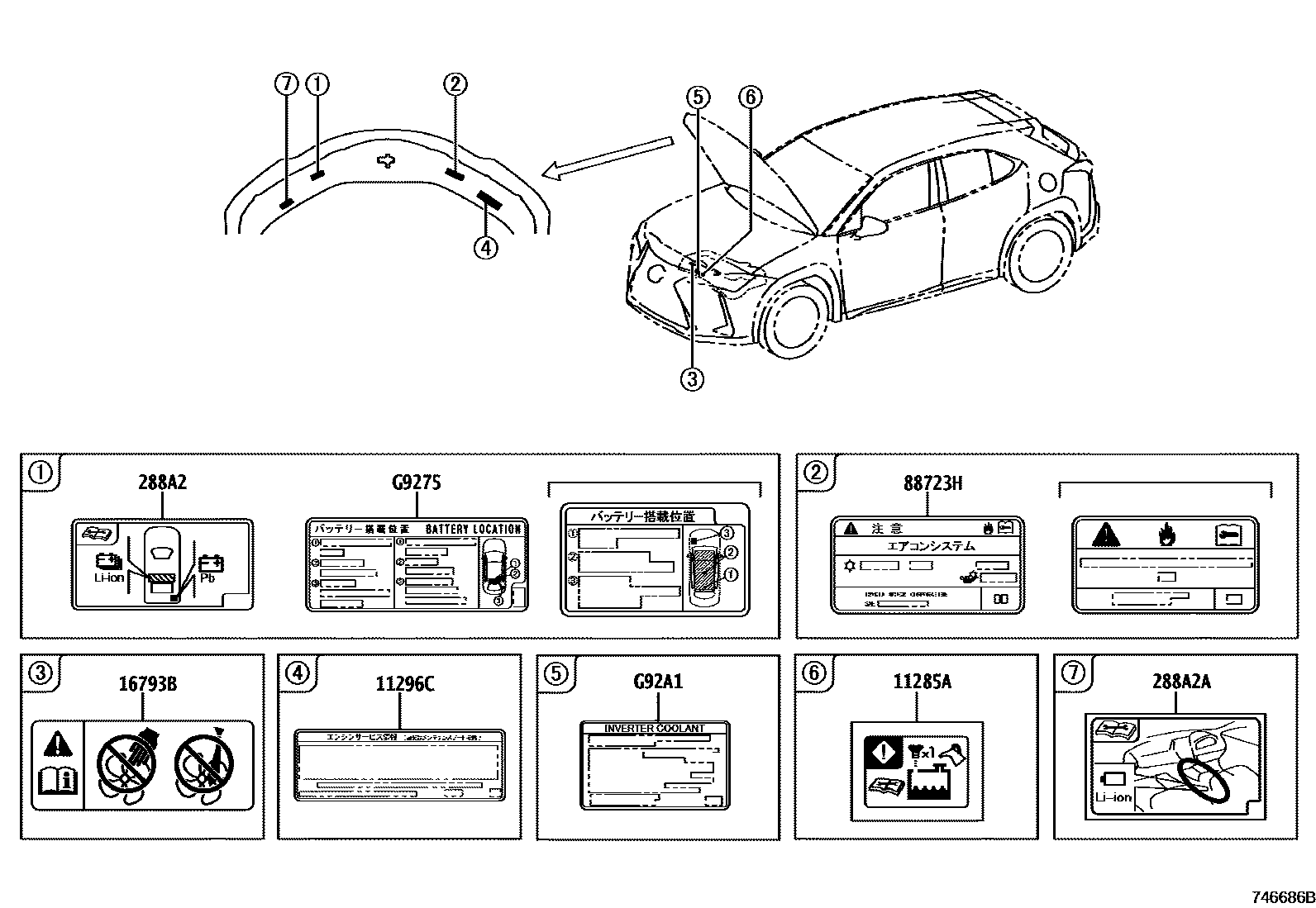

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1�������� 0002 1��������� 0003 1����

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-11020i4KM..KMA10202304-202512

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-15110iM20AFXS..MZAH11,16202401

main11296-24020iM20#..MZAA10,MZAH10,15202207

16793BLABEL, COOLING FAN INFORMATION

main16793-36030iM20#..MZAA10,MZAH10,15202207-202512

288A2LABEL, BATTERY LOCATION

main288A2-24020iM20AFXS..MZAH11,16202401

288A2ALABEL, BATTERY LOCATION, NO.2

main288A2-15050i4KM..KMA10202401-202512

88723HLABEL, COOLER SERVICE CAUTION

main88723-12310iMZAH11,16202207

main88723-76110iKMA10202304-202512

main88723-76130iMZAA10202207

G9275LABEL, BATTERY CAUTION, NO.1

mainG927512030iMZAH10,15202207

mainG927576080iKMA10202304-202512

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iKMA10202304-202512

8 parts on this diagram · 3 diagrams in section
