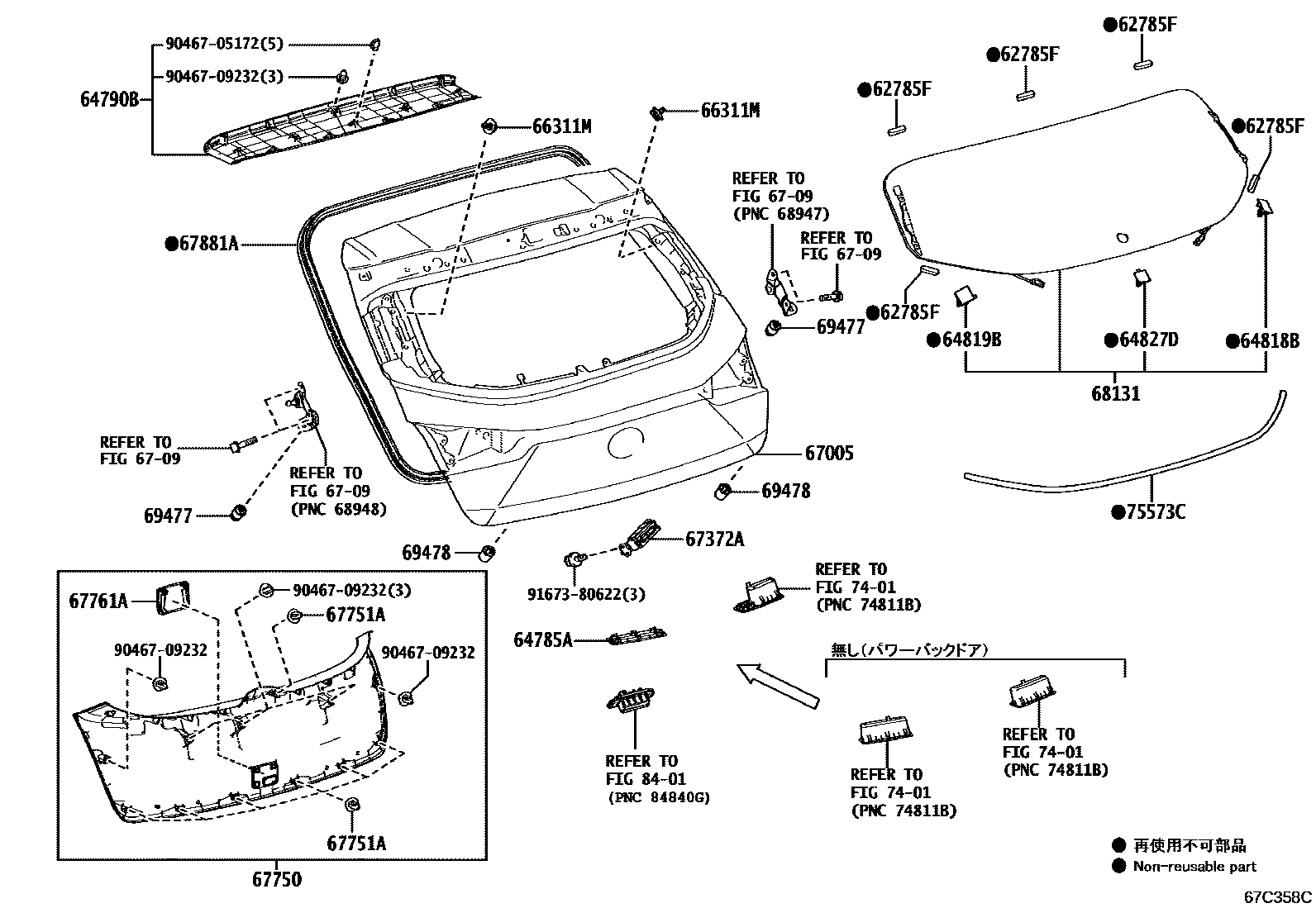

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64785ABASE, BACK DOOR TRIM
64790BPANEL ASSY, BACK DOOR TRIM, UPPER
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
66311MHOOK, ROPE
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
67005PANEL SUB-ASSY, BACK DOOR
6709
67372AWEIGHT, BACK DOOR
67750BOARD ASSY, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67761ACOVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
68131GLASS, BACK DOOR
69477CUSHION, BACK DOOR UPPER STOPPER
69478CUSHION, BACK DOOR LOWER STOPPER
7401
75573CMOULDING, BACK WINDOW, OUTSIDE
8401
9046705172
main90467-05172
9046709232
main90467-09232
9167380622
main91673-80622
23 parts on this diagram · 1 diagram in section
