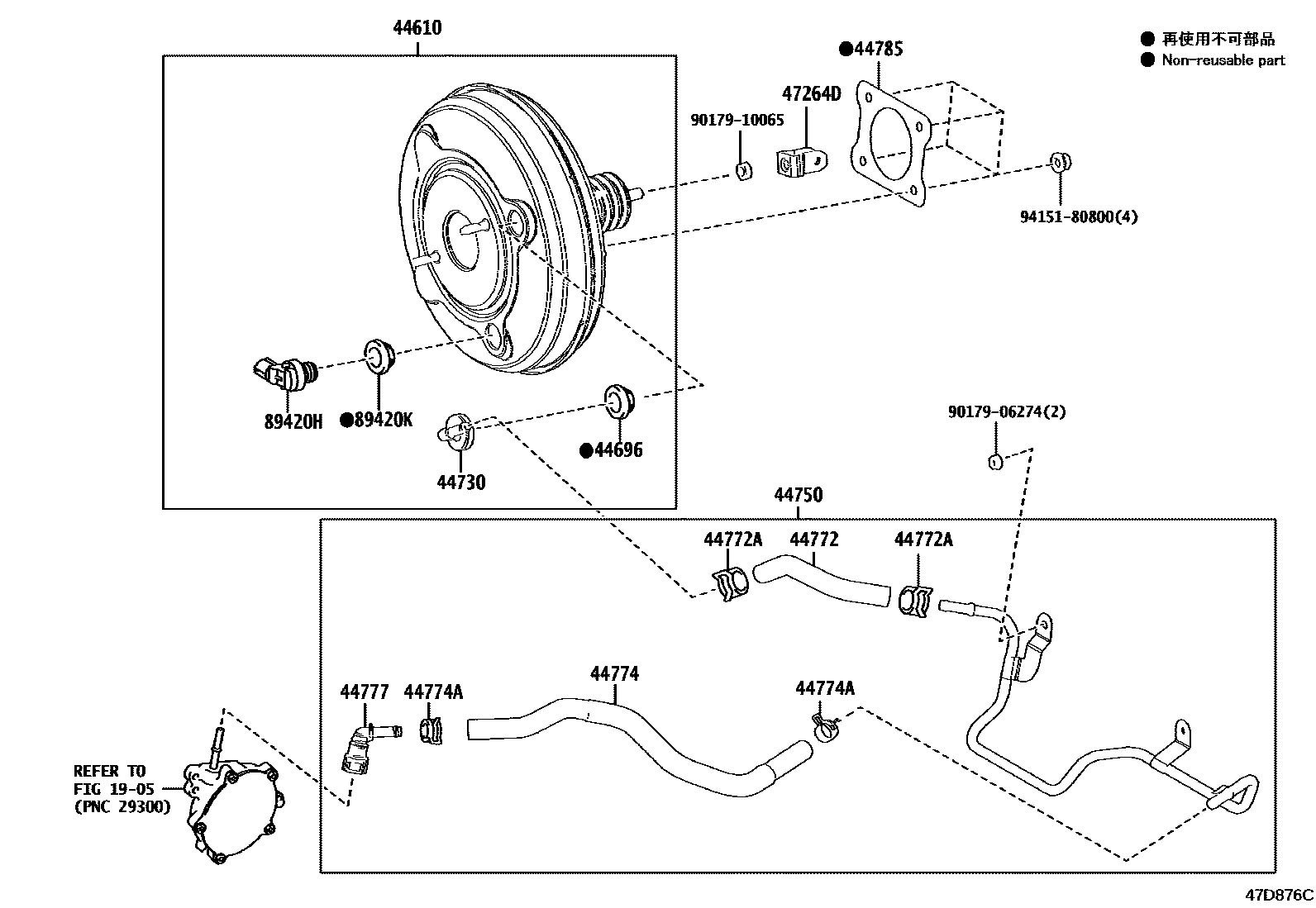

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-76080iMZAA10202207

44696GROMMET, CHECK VALVE

main90480-24015iMZAA10202207

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iMZAA10202207

44750HOSE ASSY, VACUUM

main44750-76010iMZAA10202207

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12810iMZAA10202207

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMZAA10202207

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12860iMZAA10202207

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iMZAA10202207

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZAA10202207

44785GASKET, BRAKE BOOSTER

main44785-12040iMZAA10202207

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-76010iMZAA10202207

89420HSENSOR ASSY, VACUUM

main89421-71040iMZAA10202207

89420KGROMMET, VACUUM SENSOR

main90480-24015iMZAA10202207

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
