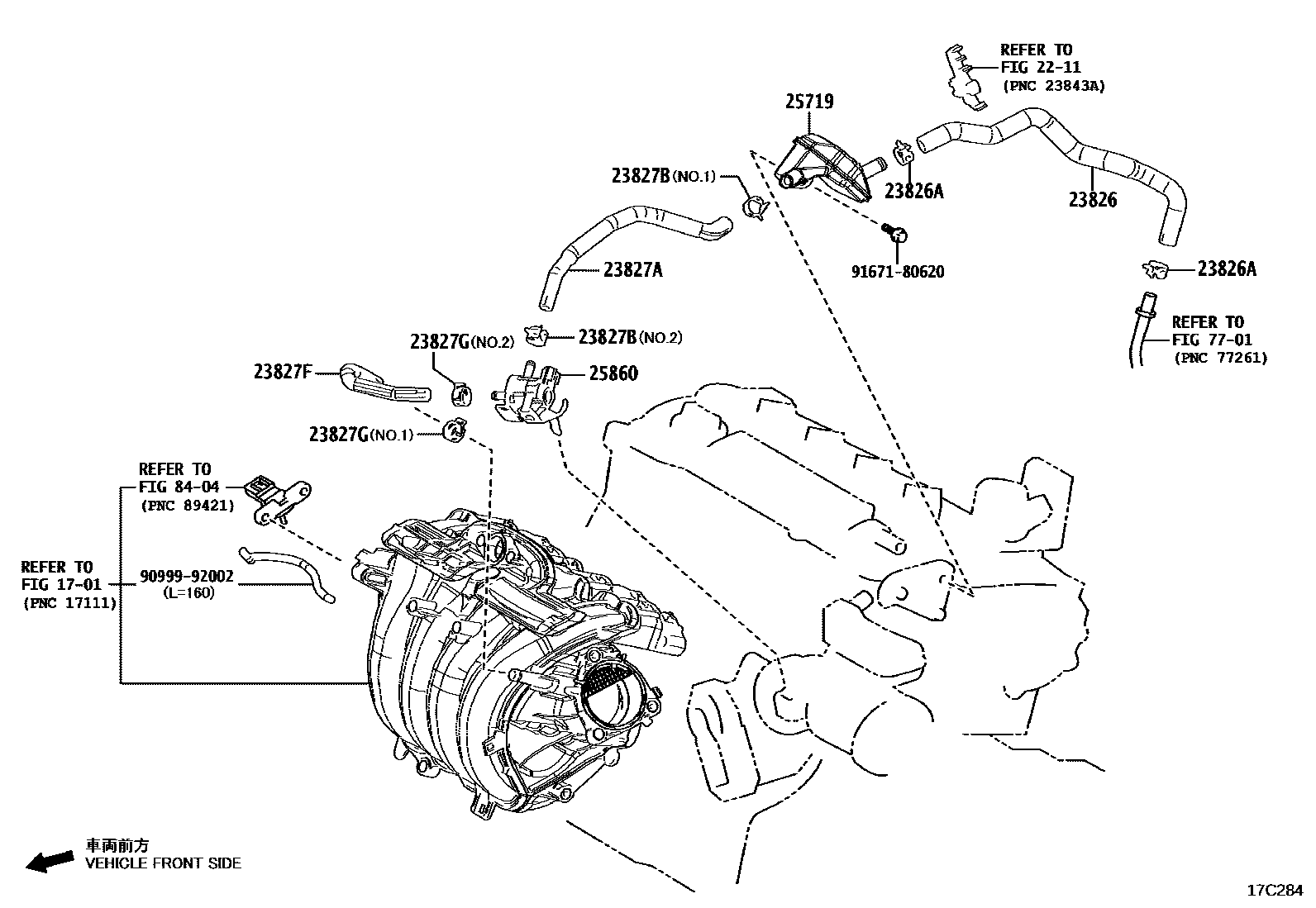

VACUUM PIPING

0001 1 0002 1 0003 1

1701

2211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24030iM20AFKS..MZAA10202207

main23826-24120iM20AFXS..MZAH10,15202207

main23826-24190iM20AFXS..MZAH11,16202401

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901iM20#..MZAA10,MZAH10,15202207

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-24100iM20AFKS..MZAA10202207

main23826-24200iM20AFXS..MZAH11,16202401

main23827-24010iM20AFXS..MZAH10,15202207

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96136-41801iM20AFKS..MZAA10202207

main96138-41501iM20AFKS..MZAA10202207

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-24110iM20AFKS..MZAA10202207

main23828-24010iM20AFXS..MZAH10,15202207

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main96136-41801iM20AFKS..MZAA10202207

main96138-41501iM20AFKS..MZAA10202207

25719TANK, VACUUM SURGE

main25719-24020iM20AFKS..MZAA10202207

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24050iM20AFKS..MZAA10202207

main25860-24060iM20AFXS..MZAH10,15202207

main25860-24110iM20AFXS..MZAH11,16202401

7701

8404

9099992002

main90999-92002

9167180620

main91671-80620

14 parts on this diagram · 3 diagrams in section
