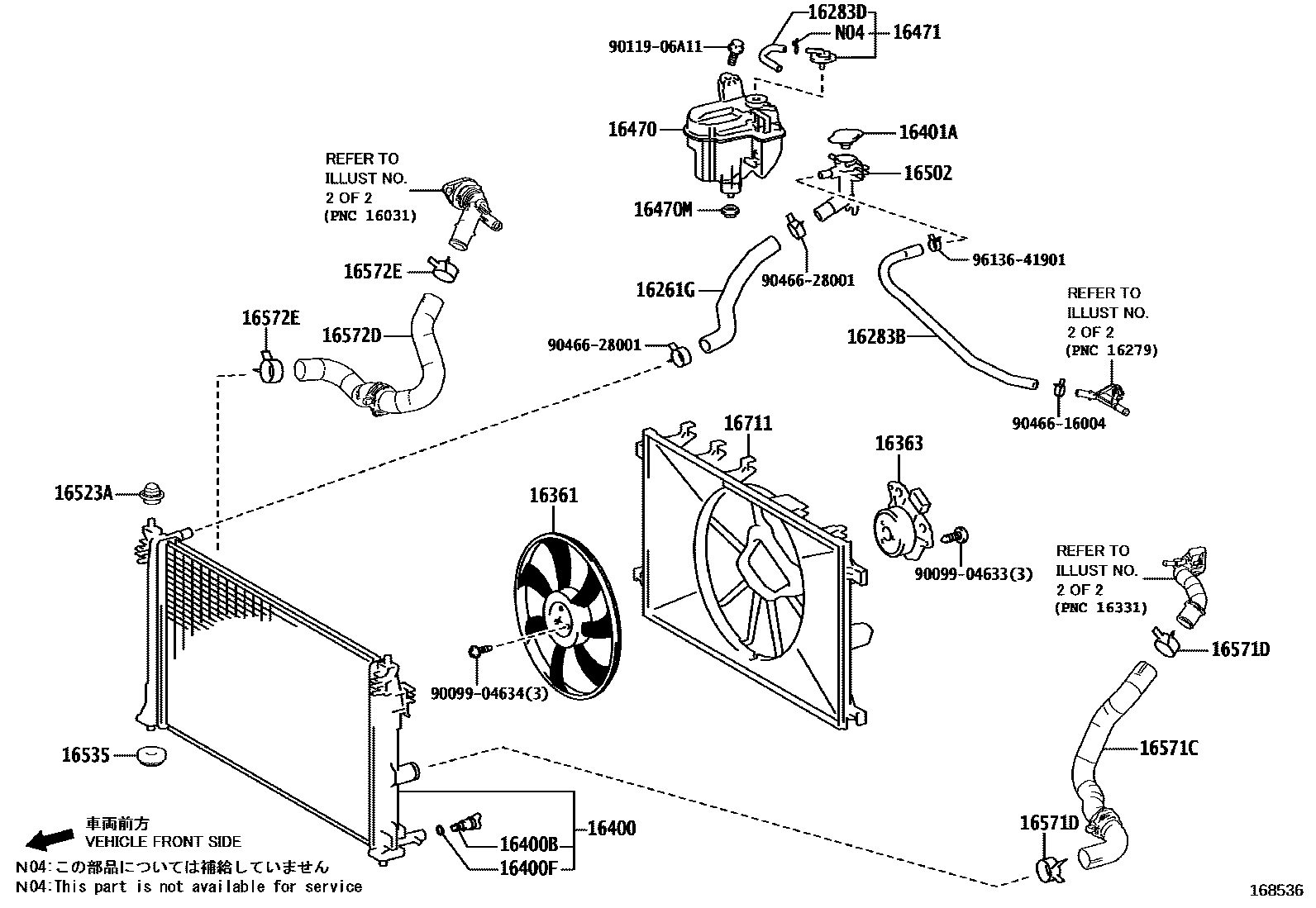

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16283HOSE, WATER BY-PASS, NO.6
16283BHOSE, WATER BY-PASS
16283DHOSE, WATER BY-PASS, NO.6
16361FAN
16363MOTOR, COOLING FAN
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16711SHROUD, FAN
9009904633
main90099-04633
9009904634
main90099-04634
9011906A11
main90119-06A11
9046616004
main90466-16004
9046628001
main90466-28001
9613641901
main96136-41901
27 parts on this diagram · 4 diagrams in section
