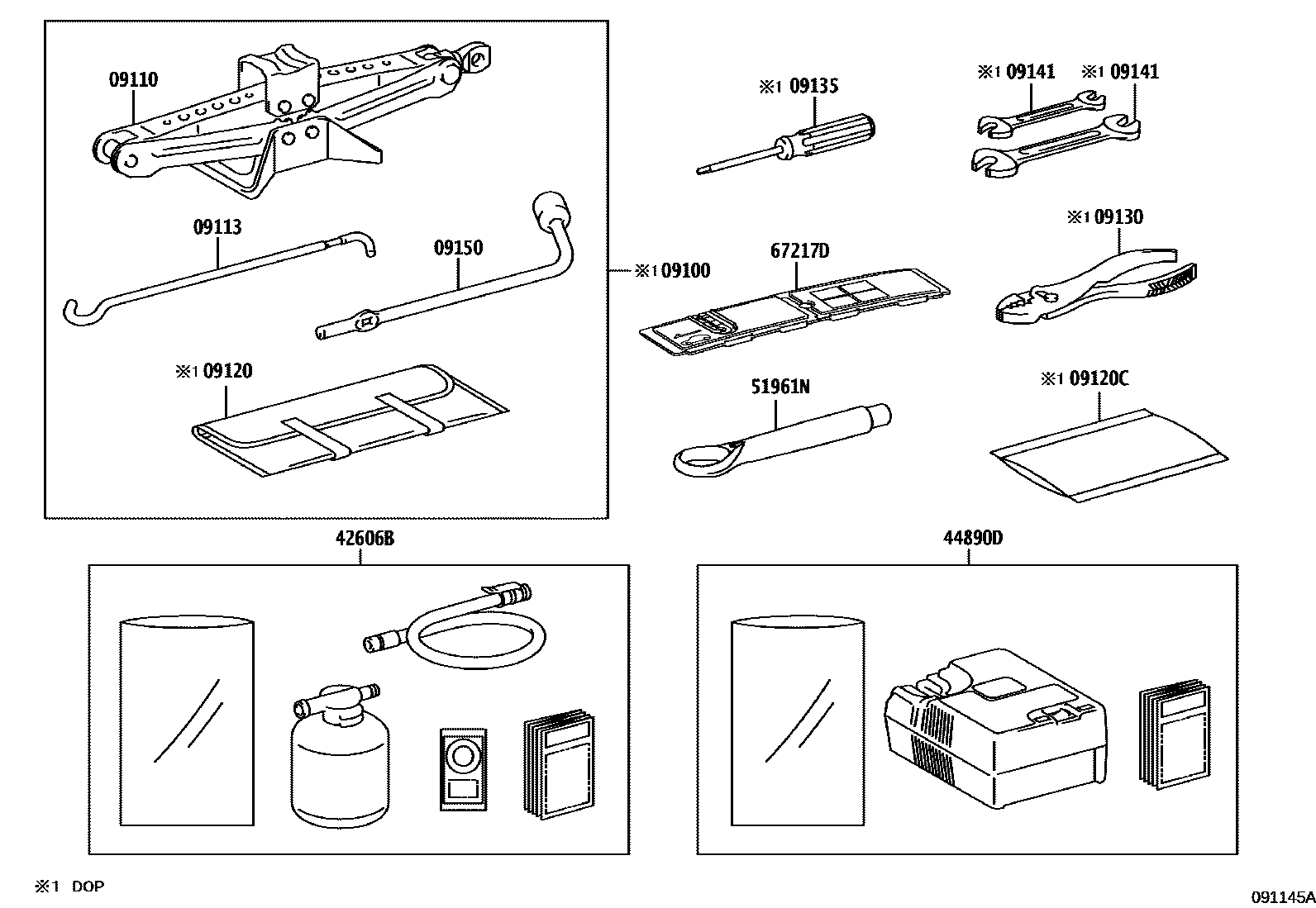

STANDARD TOOL

09100TOOL SET, STANDARD

main09100-76010

09110JACK ASSY

main09111-47051

09113HANDLE, JACK

main09113-42030

09120BAG, TOOL

main09120-76020

main09120-28040

09120CBAG,TOOL, NO.2

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-30020

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iMZAA10,MZAH10202207-202212

sub42606-42080

main42606-30011iMZAA10,MZAH10202207-202212

sub42606-42080

main42606-30011iMZAA10,MZAH10202207-202212

sub42606-42080

main42606-30011iMZAA10,MZAH10202207-202212

sub42606-42080

main42606-30011iMZAA10,MZAH10202207-202212

sub42606-42080

main42606-42080iKMA10,MZAA10,MZAH10202301

main42606-42080iKMA10,MZAA10,MZAH10202301

main42606-42080iKMA10,MZAA10,MZAH10202301

main42606-42080iKMA10202401-202512

main42606-42080iMZAH11202401

main42606-42080iMZAH11202401

44890DCOMPRESSOR ASSY, AIR

main44890-12011iMZAA10,MZAH10202207-202212

sub44890-42050

main44890-12011iMZAA10,MZAH10202207-202212

sub44890-42050

main44890-12011iMZAA10,MZAH10202207-202212

sub44890-42050

main44890-12011iMZAA10,MZAH10202207-202212

sub44890-42050

main44890-42050iKMA10,MZAA10,MZAH10202301

main44890-42050iKMA10,MZAA10,MZAH10202301

main44890-42050iKMA10,MZAA10,MZAH10202301

main44890-42050iKMA10202401-202512

main44890-42050iMZAH11202401

51961NHOOK, TRANSPORT

main51961-33010iKMA10202207-202512

67217DSTOPPER, REAR DOOR GLASS

main67217-76010iKMA10202401-202512

13 parts on this diagram · 1 diagram in section
