HEATING & AIR CONDITIONING - WATER PIPING

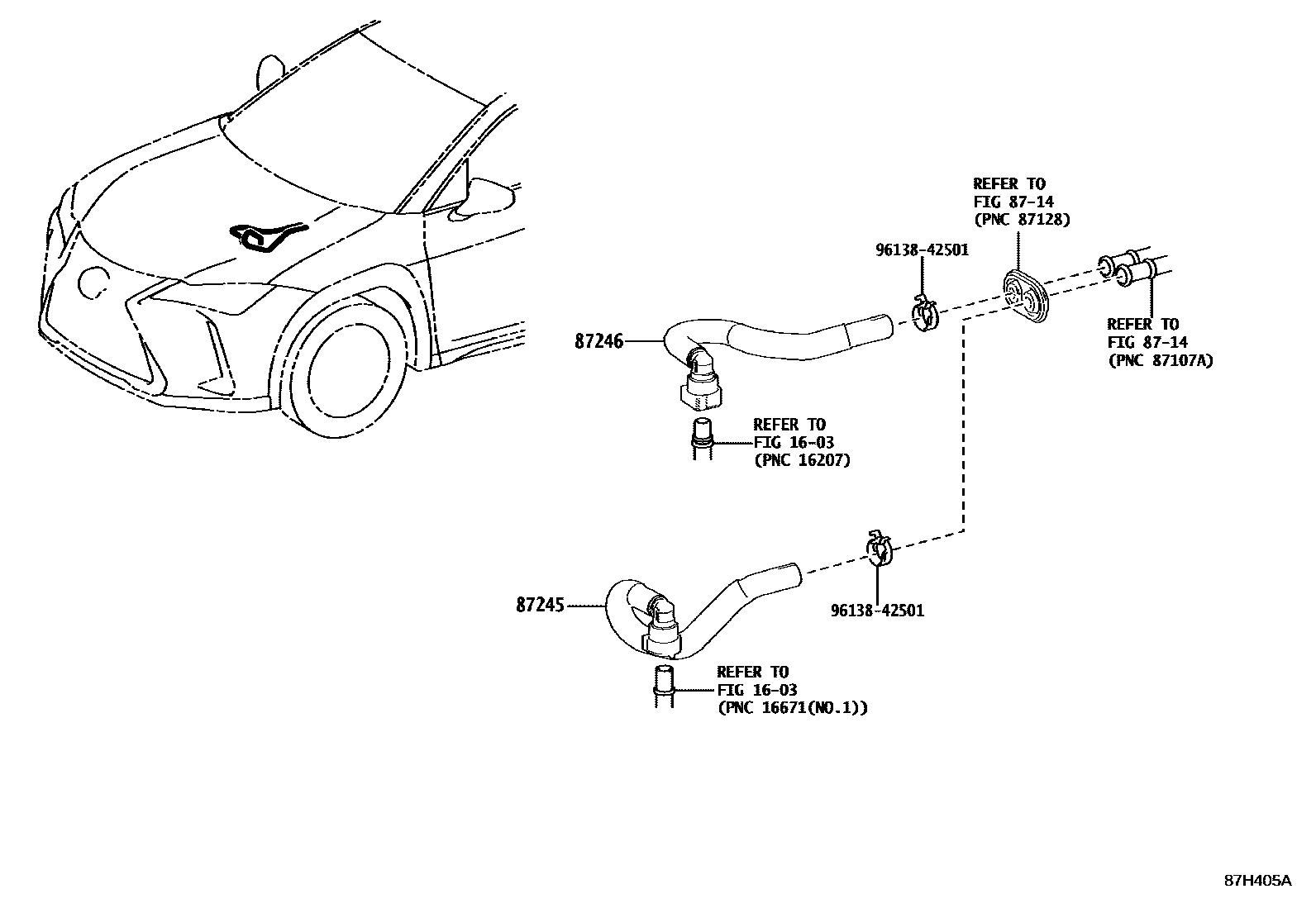

Parts diagram

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-12640i¥2,140201810-202207

main87209-76020i¥1,150201811-202108

87246HOSE, HEATER WATER, OUTLET

main87209-12710i¥1,250201810-202207

9613842501

main96138-42501¥180

5 parts on this diagram · 4 diagrams in section
