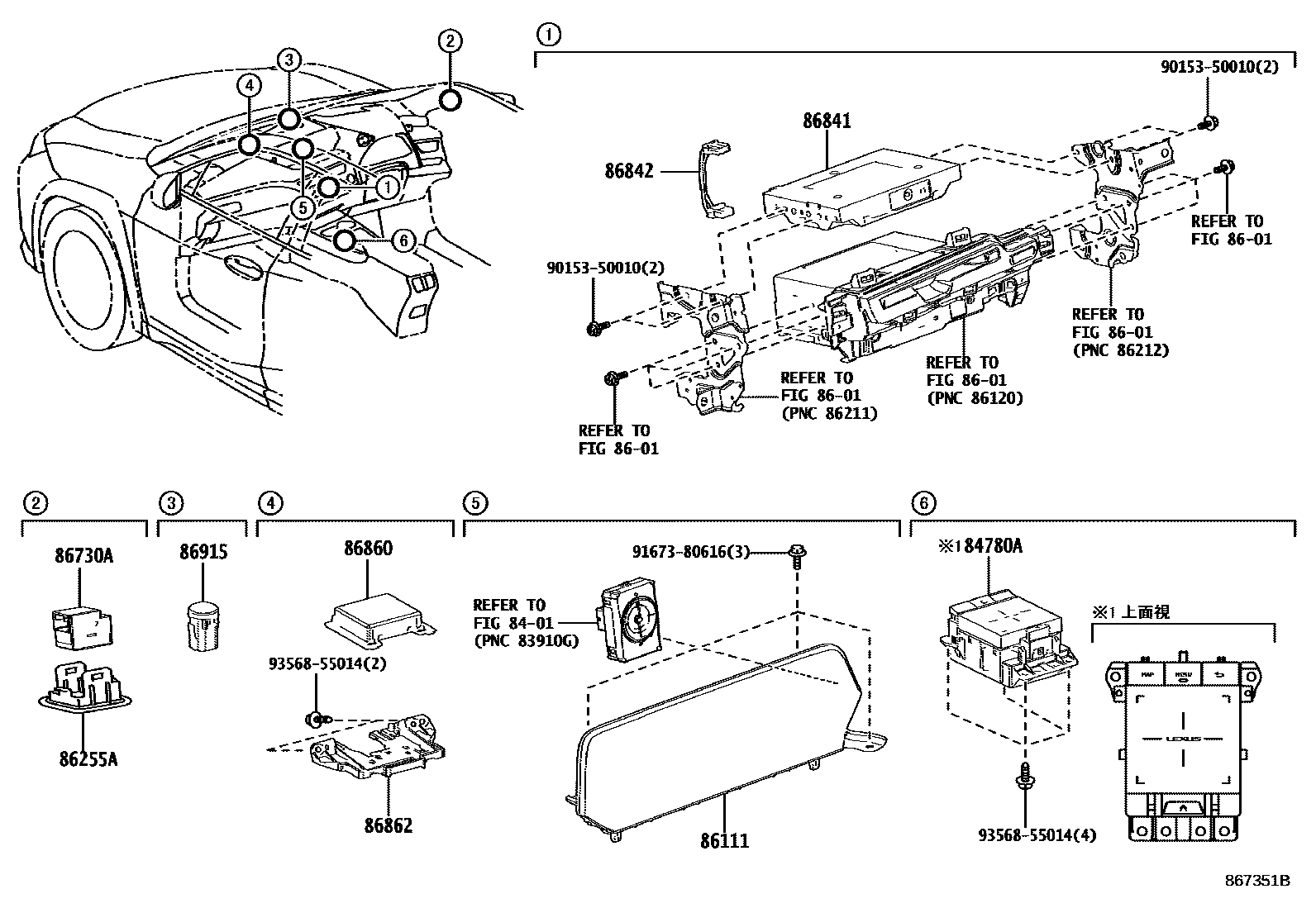

NAVIGATION & FRONT MONITOR DISPLAY

8401

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-76170iMZAA10,MZAH1#¥27,300201810-202108

main84780-76171iMZAA10,MZAH1#¥27,300202108-202207

8601

86111MULTI-DISPLAY

main86111-76180iMZAA10,MZAH1#¥106,000201810-202207

86255ACASE, MICROPHONE, NO.1

main86255-78010-A1iMZAA10,MZAH1#201810-202207

WHITE,TRIM00,02,11,4#,8#

main86255-78010-C1iMZAA10,MZAH1#201810-202207

BLACK,TRIM01,10,2#,3#

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010iMZAA10,MZAH1#¥7,100201810-202010

sub86730-48110¥6,400

main86730-48110iMZAA10,MZAH1#¥6,400202010-202207

86841COMPUTER, NAVIGATION

main86840-33340iMZAA10,MZAH1#¥257,000201810-201904

sub86840-33341¥257,000

main86840-33341iMZAA10,MZAH1#¥257,000201905-201907

sub86840-33342¥257,000

main86840-33342iMZAA10,MZAH1#¥257,000201908-202003

sub86840-33343¥257,000

main86840-33343iMZAA10,MZAH1#¥257,000202004-202009

sub86840-33344¥257,000

main86840-33344iMZAA10,MZAH1#¥257,000202009-202010

main86840-48173iMZAA10,MZAH1#¥214,000202010-202103

sub86840-48174¥214,000

main86840-48174iMZAA10,MZAH1#¥214,000202104-202108

sub86840-48175¥214,000

main86840-48175iMZAA10,MZAH1#¥214,000202109-202203

sub86840-48176¥214,000

main86840-48176iMZAA10,MZAH1#¥214,000202204-202207

sub86840-48177¥214,000

86842WIRE, NAVIGATION, NO.1

main86842-76320iMZAA10,MZAH1#¥2,610201810-202207

86860ANTENNA ASSY, NAVIGATION

main86880-78010iMZAA10,MZAH1#¥13,000201810-202207

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iMZAA10,MZAH1#¥940202110-202207

main86862-58020iMZAA10,MZAH1#¥940201810-202109

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iMZAA10,MZAH1#¥14,200201810-202207

9015350010

main90153-50010¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

14 parts on this diagram · 1 diagram in section
