REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-76020iMZAA10,MZAH1#201810-202207

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iMZAA10,MZAH1#201810-202207

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMZAA10,MZAH1#201810-202207

85214RRUBBER, REAR WIPER

main85214-42040iMZAA10,MZAH1#201810-202207

85241AARM, REAR WIPER

main85241-76020iMZAA10,MZAH1#201810-202207

85242BLADE, RR WIPER

main85242-78010iMZAA10,MZAH1#201810-202207

85291RBLADE,REAR WIPER, WINTER

main85291-13060iMZAA10,MZAH1#201810-202207

85292ACAP, REAR WIPER ARM HEAD

main85292-47060iMZAA10,MZAH1#201810-202207

9011906953

main90119-06953

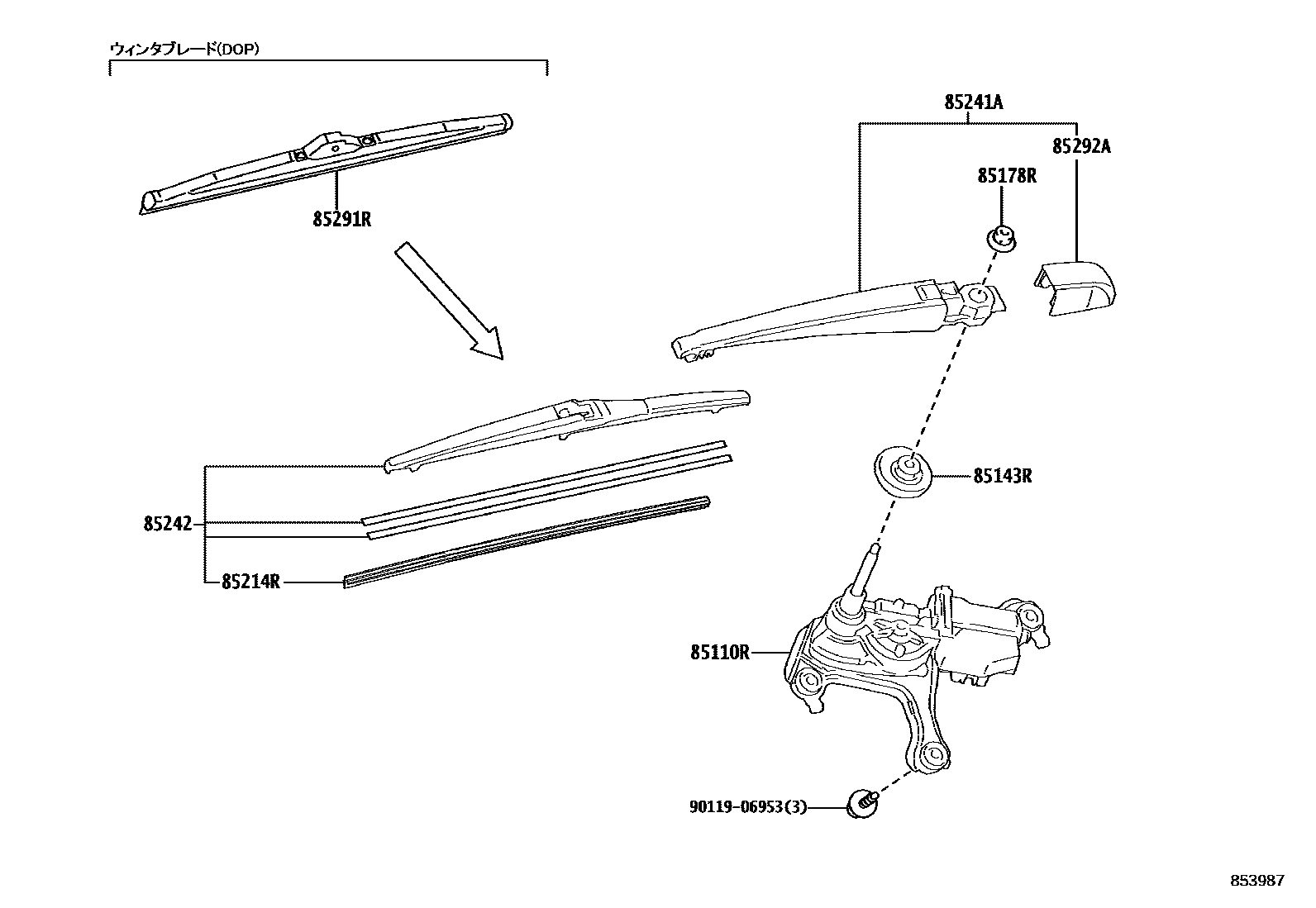

9 parts on this diagram · 1 diagram in section
