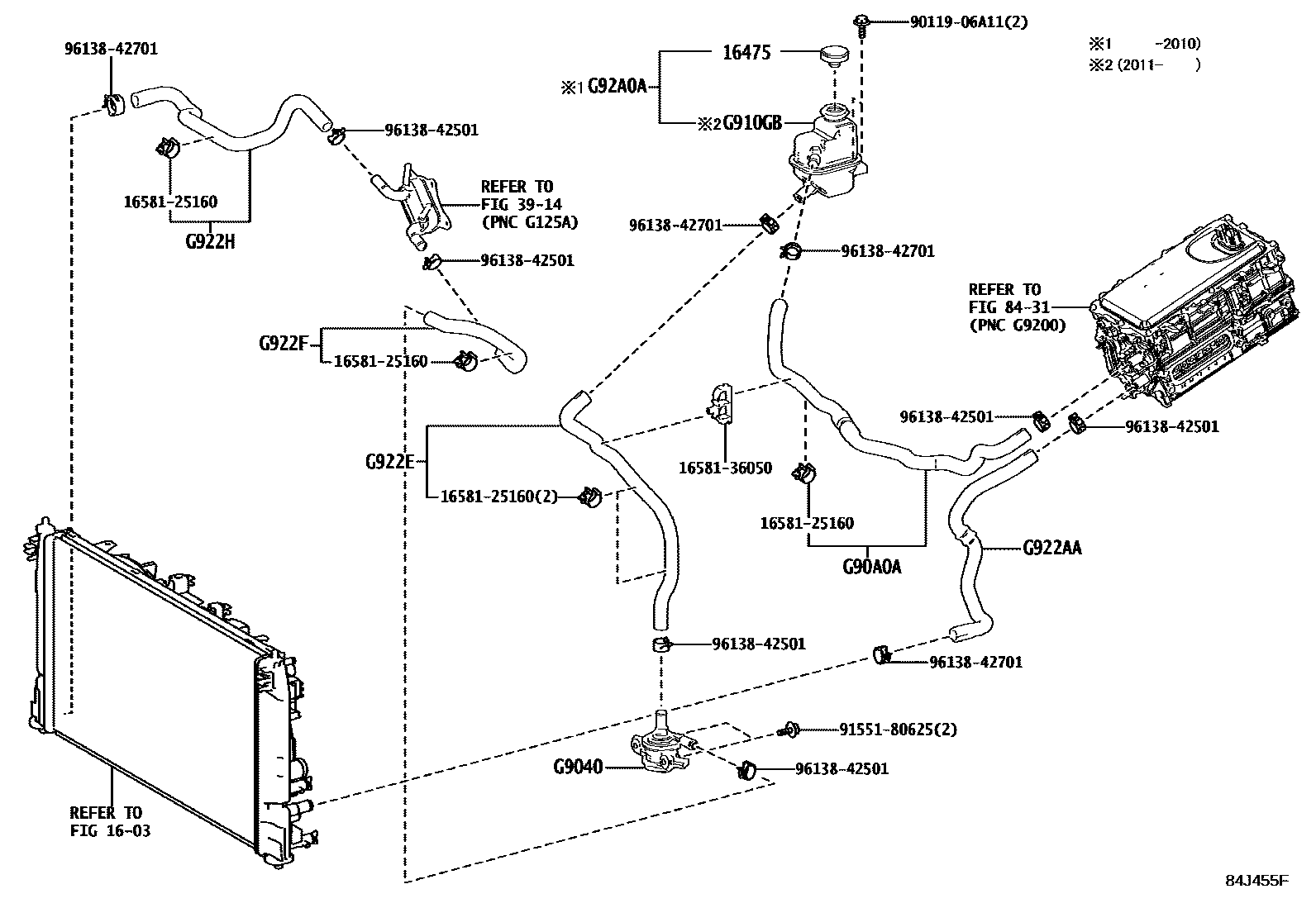

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXS..MZAH1#201811-202207

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iMZAH1#202108-202207

subG9040-48060

mainG904033050iMZAH1#201811-202107

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A076030iMZAH1#201811-202207

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G76030iMZAH1#202011-202207

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A76030iMZAH1#201811-202207

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E76010iMZAH1#201811-202207

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F76010iMZAH1#201811-202207

G922HHOSE, HYBRID RADIATOR INLET

mainG922H76010iMZAH1#201811-202207

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H076010iMZAH1#201811-202010

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

1658136050CLAMP, HOSE(FOR WATER HOSE)

main16581-36050

9011906A11

main90119-06A11

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

18 parts on this diagram · 1 diagram in section
