HEV INVERTER

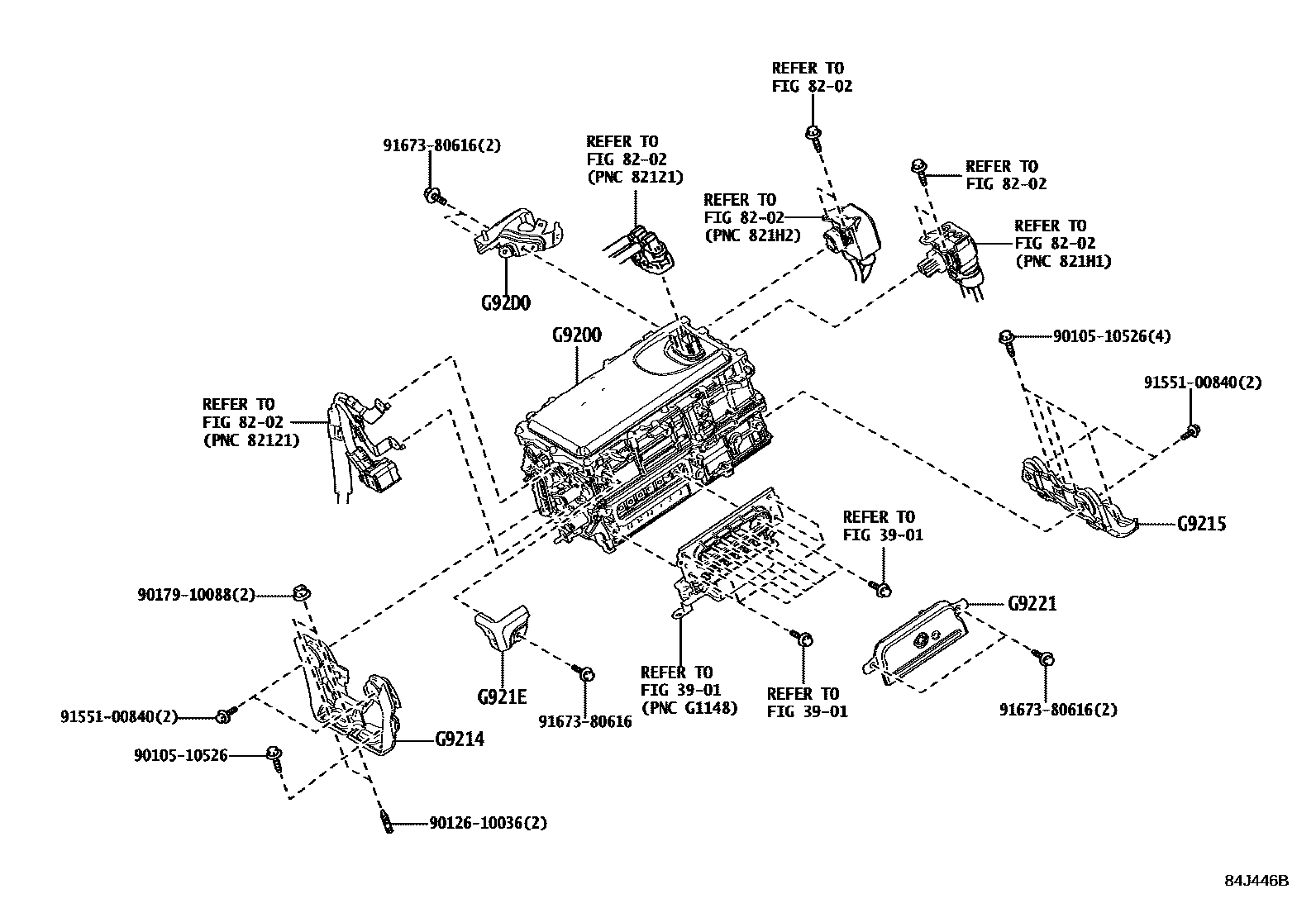

Parts diagram

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG920079045i201811-202204

subG9200-79046¥262,000

mainG920079046i202205-202207

mainG920079055i201811-202205

subG9200-79056¥262,000

mainG920079056i202205-202207

G9214BRACKET, INVERTER, NO.1

mainG921433040i201811-202207

G9215BRACKET, INVERTER, NO.2

mainG921533040i201811-202207

G921EPROTECTOR, INVERTER

mainG921E47010i201811-202207

G9221COVER, INVERTER

mainG902247050i201811-202207

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D076010i201811-202207

9010510526

main90105-10526¥100

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

13 parts on this diagram · 3 diagrams in section
