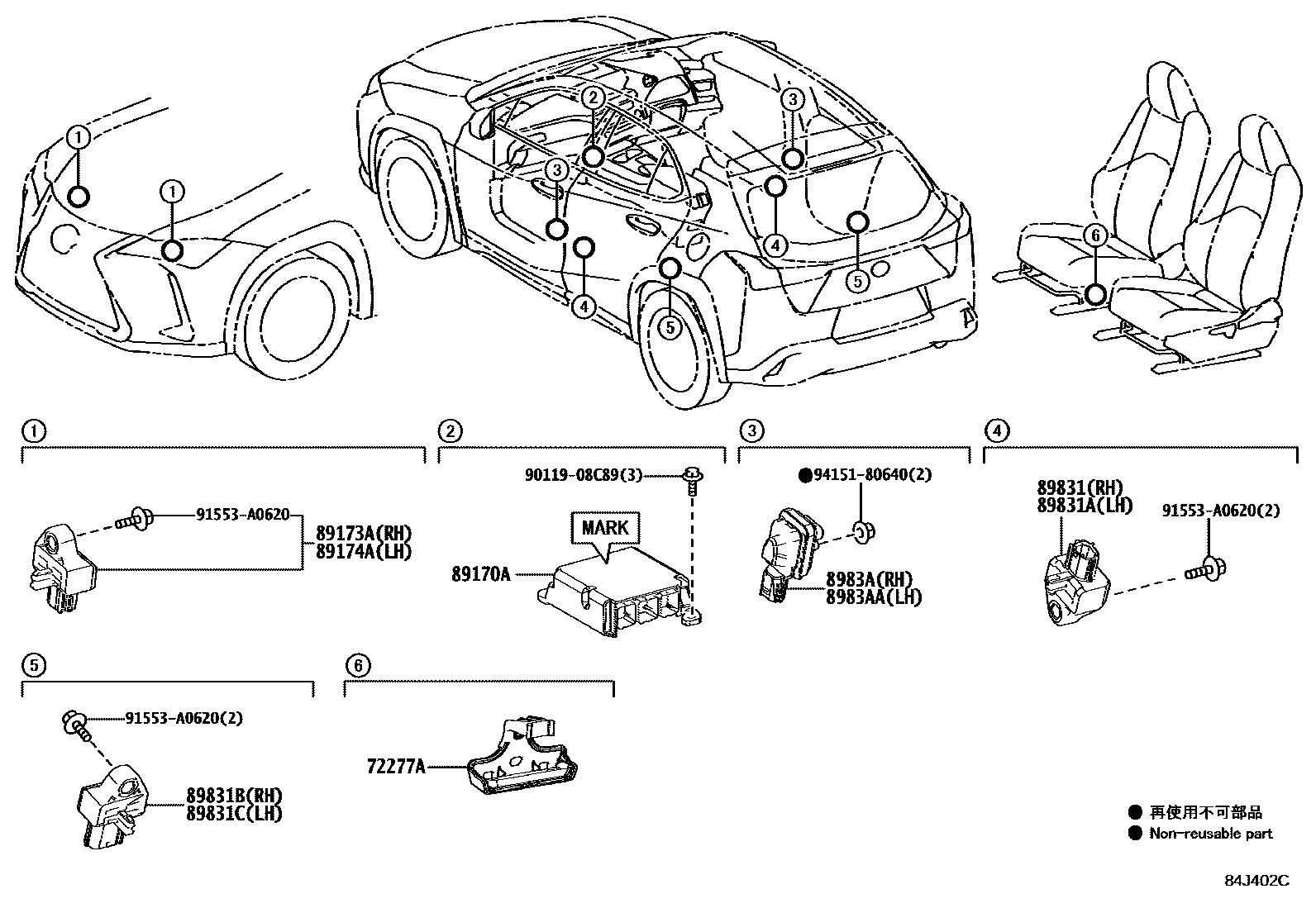

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47050iMZAA10,MZAH1#201810-202207

89170ACOMPUTER ASSY, AIRBAG

main89170-76330iMZAH1#201811-202108

main89170-76400iMZAA10201810-202108

main89170-76600iMZAH1#202108-202202

main89170-76601iMZAH1#202202-202207

main89170-76650iMZAA10202108-202202

main89170-76651iMZAA10202202-202207

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495iMZAA10,MZAH1#201810-202207

main89173-49505iMZAA10,MZAH1#202108-202202

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495iMZAA10,MZAH1#201810-202207

main89173-49505iMZAA10,MZAH1#202108-202202

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-42060iMZAA10,MZAH1#202108-202202

main89831-47050iMZAA10,MZAH1#201810-202207

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-42060iMZAA10,MZAH1#202108-202202

main89831-47050iMZAA10,MZAH1#201810-202207

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-28040iMZAA10,MZAH1#201810-202207

main89831-42050iMZAA10,MZAH1#202108-202202

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-28040iMZAA10,MZAH1#201810-202207

main89831-42050iMZAA10,MZAH1#202108-202202

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-33010iMZAA10,MZAH1#201810-202012

sub8983A-33011

main8983A-33011iMZAA10,MZAH1#202101-202108

main8983A-52011iMZAA10,MZAH1#202108-202207

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-33010iMZAA10,MZAH1#201810-202012

sub8983A-33011

main8983A-33011iMZAA10,MZAH1#202101-202108

main8983A-52011iMZAA10,MZAH1#202108-202207

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180640

main94151-80640

13 parts on this diagram · 1 diagram in section
