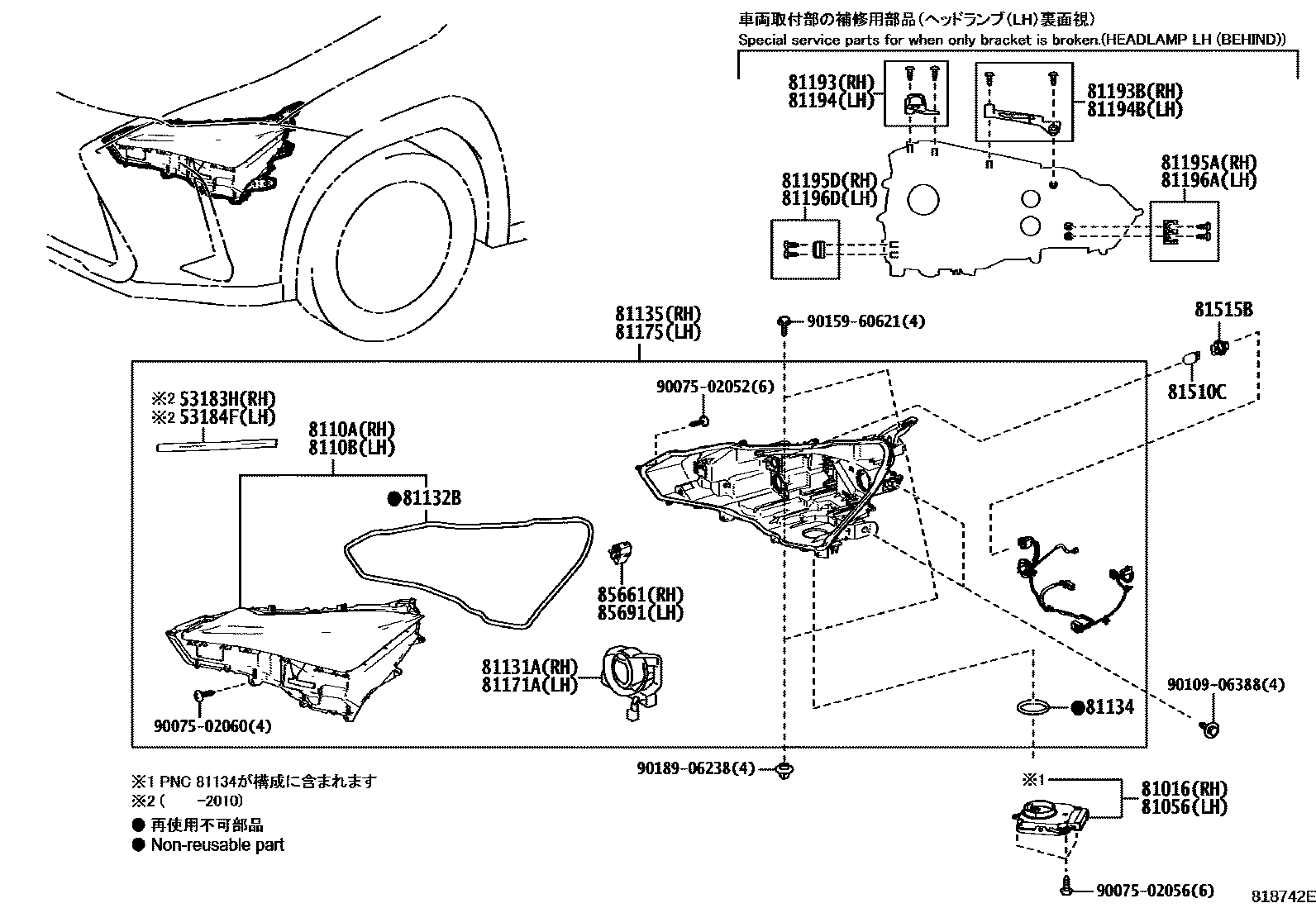

HEADLAMP
53183HSEAL, HEADLAMP COVER, RH
53184FSEAL, HEADLAMP COVER, LH
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81131AUNIT, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81171AUNIT, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
9007502052
main90075-02052
9007502056
main90075-02056
9007502060
main90075-02060
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
30 parts on this diagram · 2 diagrams in section
