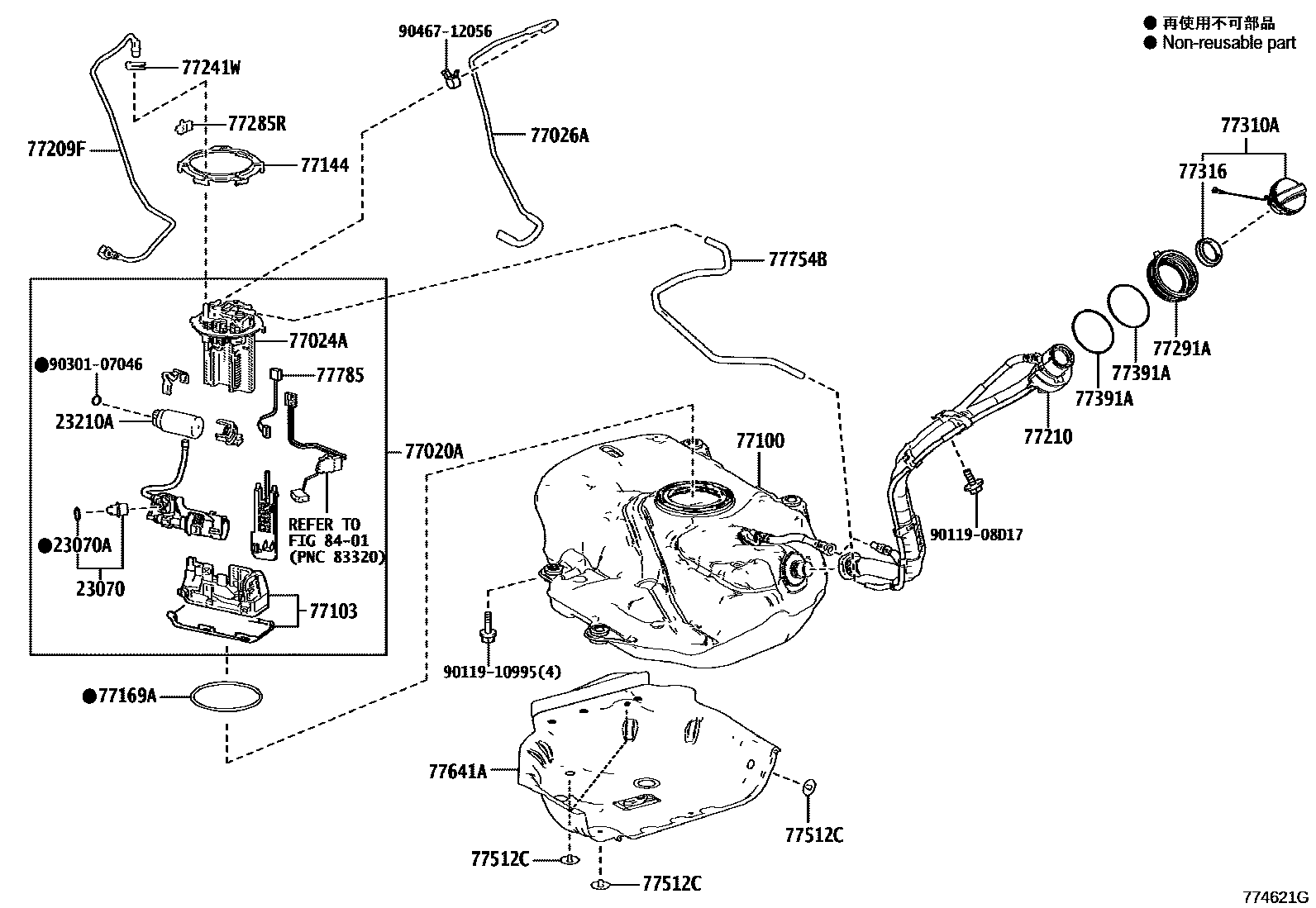

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77210PIPE ASSY, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77641APROTECTOR, FUEL TANK, NO.1
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
8401
9011908D17
main90119-08D17
9011910995
main90119-10995
9030107046
main90301-07046
9046712056
main90467-12056
27 parts on this diagram · 5 diagrams in section
