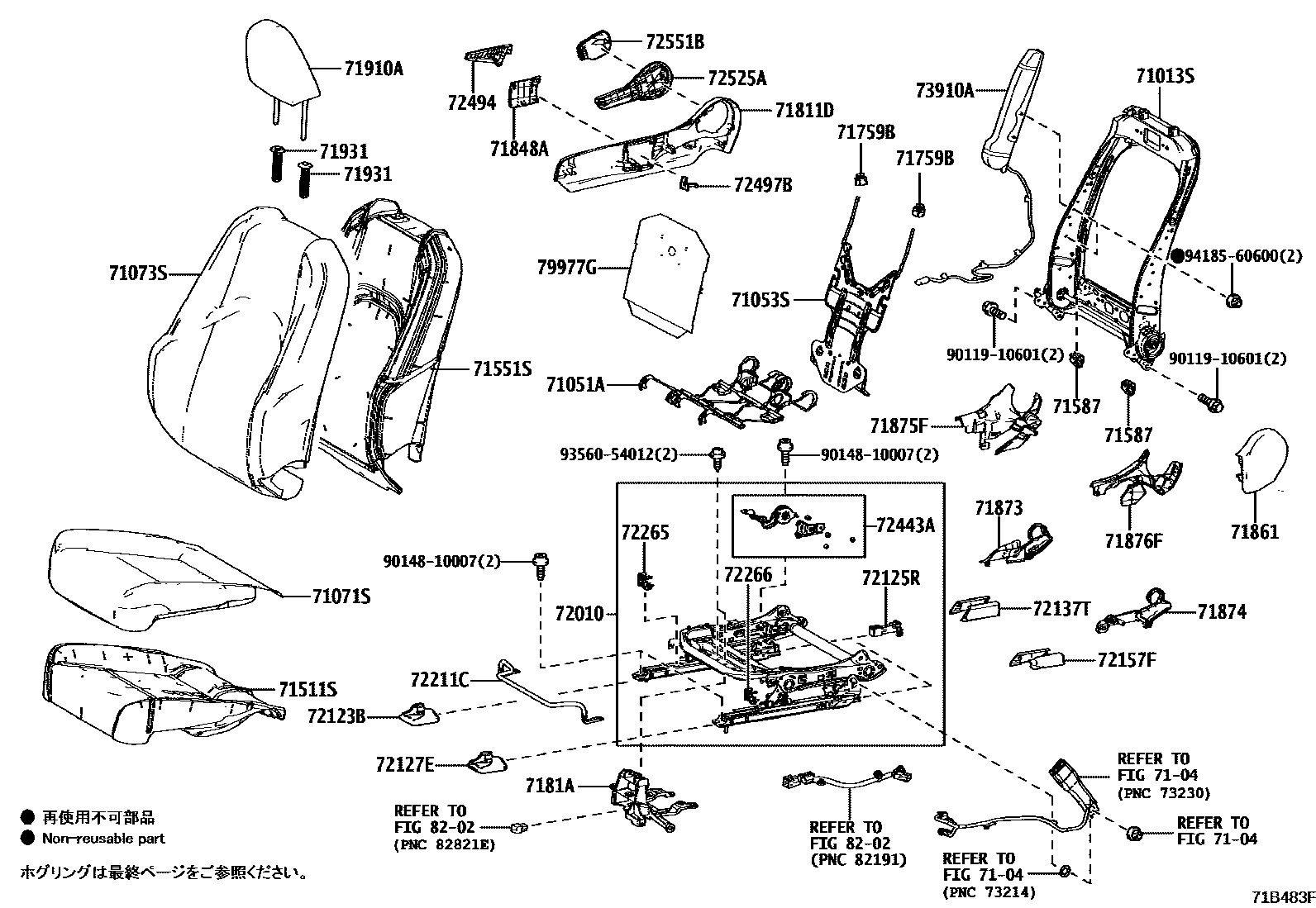

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
CHATEAU,TRIM11
WHITE ASH,TRIM10,8#
BLACK,TRIM2#
OCHER,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
OCHER,TRIM4#
CHATEAU,TRIM11
WHITE ASH/WHITE ASH,TRIM10
WHITE ASH/BLUE,TRIM8#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759BHOOK, FRONT SEATBACK
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM0#,1#,2#,4#,8#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71848ACAP, SEAT ADJUSTER COVER, RH
BLACK,TRIM0#,1#,2#,4#,8#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
CHATEAU,TRIM11
WHITE ASH,TRIM10
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
72127ECOVER, SEAT TRACK BRACKET, INNER FRONT
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
72211CHANDLE, SEAT TRACK ADJUSTING
72265COVER, SEAT TRACK UPPER RAIL, RH
72266COVER, SEAT TRACK UPPER RAIL, LH
72443AGEAR, VERTICAL ADJUSTER, RH
72494HANDLE, VERTICAL ADJUSTING, RH
BLACK,TRIM0#,1#,2#,4#,8#
72497BCOVER, VERTICAL ADJUSTER BRACKET, RH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
BLACK,TRIM0#,1#,2#,4#,8#
72551BCOVER, RECLINING HINGE, RH
BLACK,TRIM0#,1#,2#,4#,8#
73910AAIRBAG ASSY, FRONT SEAT, RH
79977GFELT, FRONT SEATBACK, RH
8202
9011910601
9014810007
9356054012
9418560600
41 parts on this diagram · 9 diagrams in section
