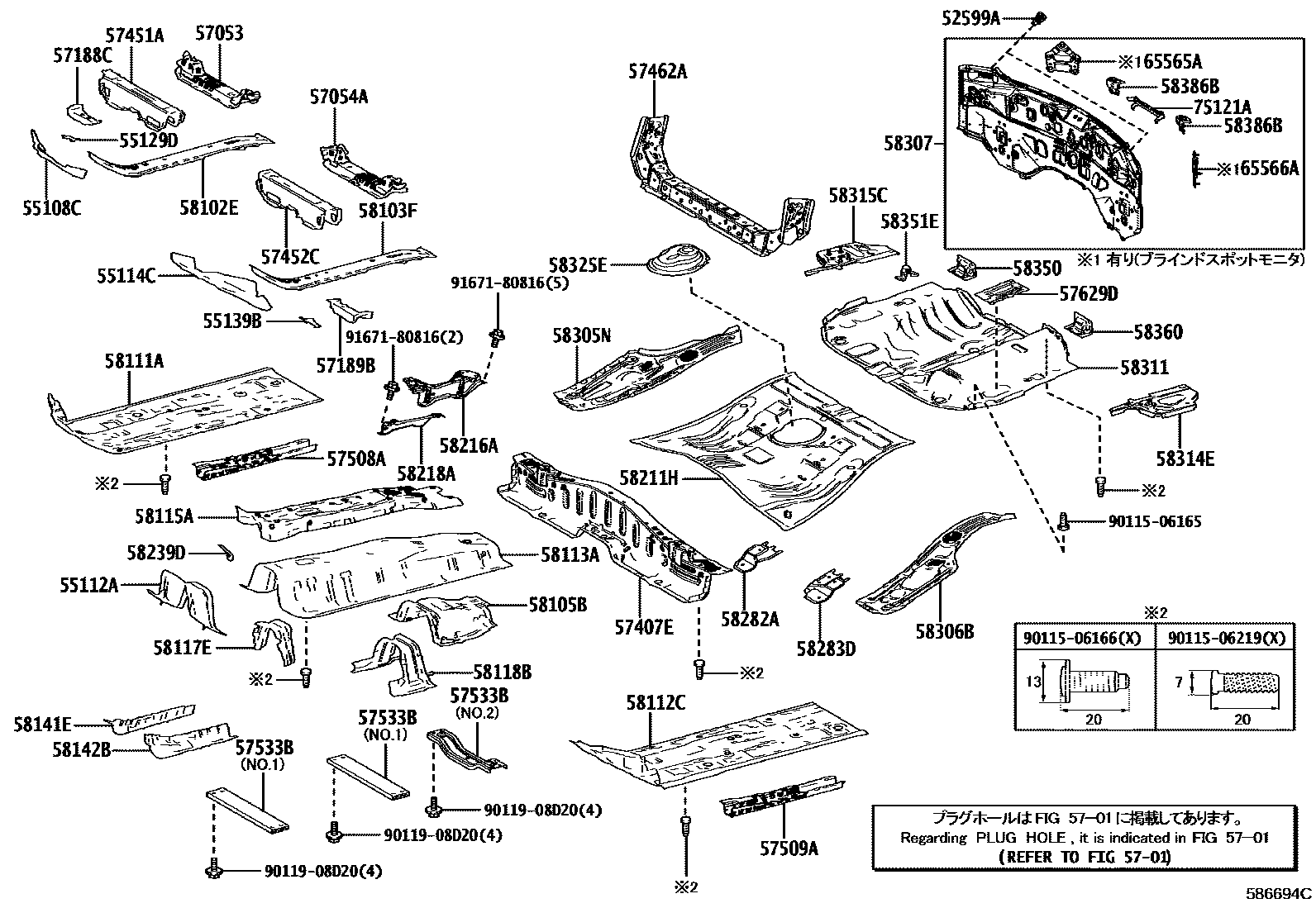

FLOOR PAN & LOWER BACK PANEL
52599ASTOPPER, REAR BUMPER, UPPER
55108CBRACE SUB-ASSY, DASH TO FRAME, RH
55112APANEL, DASH, NO.2
55114CPANEL, DASH, LOWER LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58113APANEL, FRONT FLOOR, CENTER
58115AREINFORCEMENT, FRONT FLOOR PANEL
58117EPANEL, FRONT FLOOR SUB COVER
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58216APANEL, SHIFT LEVER HOUSING, NO.1
58218APANEL, SHIFT LEVER HOUSING, NO.2
58239DBRACKET, CABLE CLAMP
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
sub58307-76041
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351EBRACKET, SPARE WHEEL CLAMP
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
65565APATCH, SIDE PANEL REAR END, RH
65566APATCH, SIDE PANEL REAR END, LH
75121ABRACKET, REAR LICENSE PLATE
9011506165
main90115-06165
9011506166
main90115-06166
9011506219
main90115-06219
9011908D20
main90119-08D20
9167180816
main91671-80816
55 parts on this diagram · 5 diagrams in section
