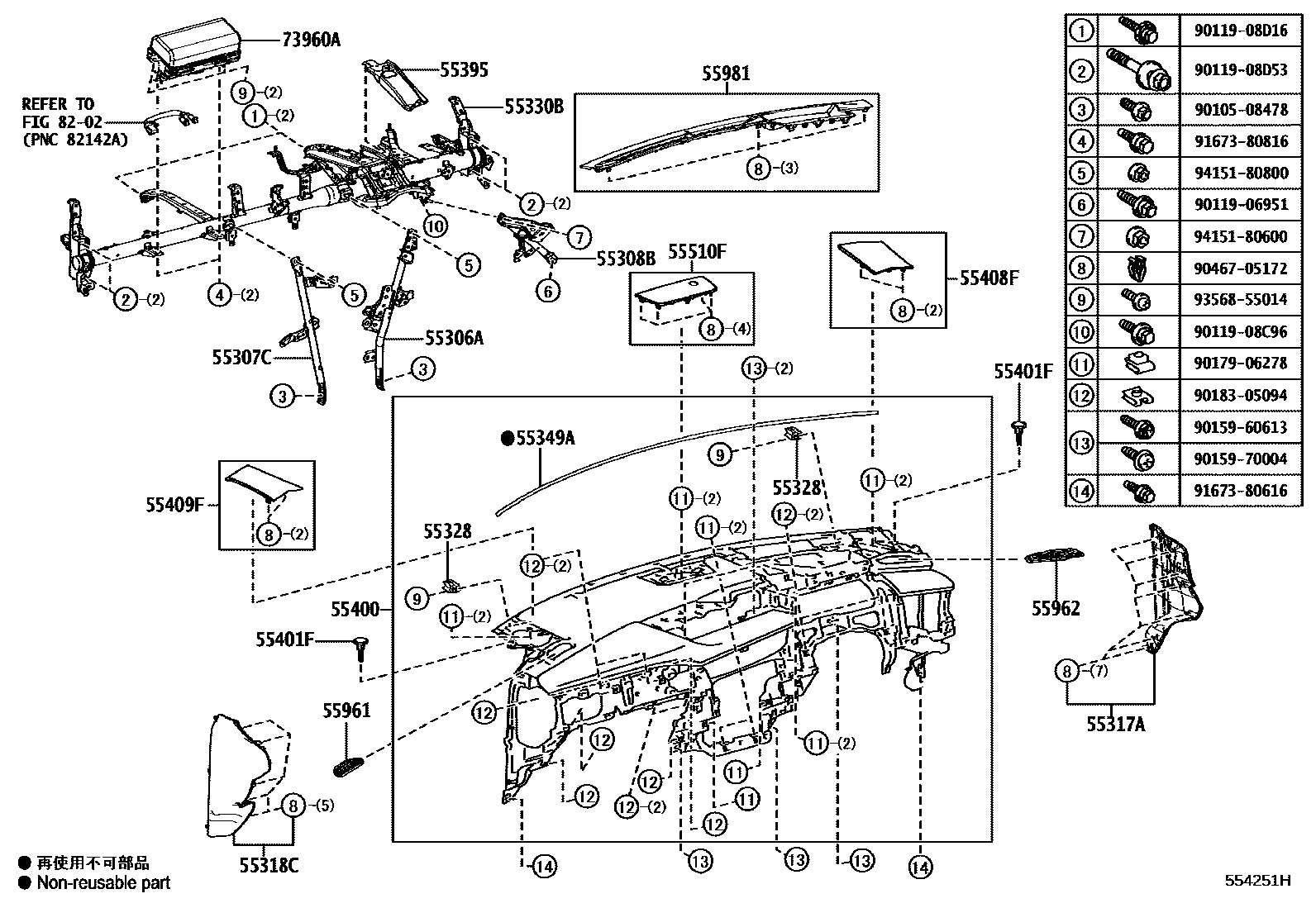

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM0#,1#,2#,3#,4#,8#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,8#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55395BRACKET, INSTRUMENT PANEL TO PEDAL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK/BLACK/RED,TRIM21,3#
BLACK/BLACK/LT.GRAY,TRIM01,10,20
BLACK/BLACK/ROYAL BROWN,TRIM4#
BLACK/BLACK/IVORY,TRIM26
BLACK/BLACK/BLUE,TRIM25
NOBLEBROWN/BLACK/ME.WHITE,TRIM00,11
BLUE/BLACK/LT.GRAY,TRIM02,22,23,8#
BLUE/BLACK/LT.GRAY,TRIM02,23,8#
55401FCLIP(FOR SAFETY PAD)
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,8#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,8#
55510FCOVER ASSY, SPEAKER OPENING, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,8#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,8#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,8#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508478
main90105-08478
9011906951
main90119-06951
9011908C96
main90119-08C96
9011908D16
main90119-08D16
9011908D53
main90119-08D53
9015960613
main90159-60613
9015970004
main90159-70004
9017906278
main90179-06278
9018305094
main90183-05094
9046705172
main90467-05172
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
34 parts on this diagram · 4 diagrams in section
