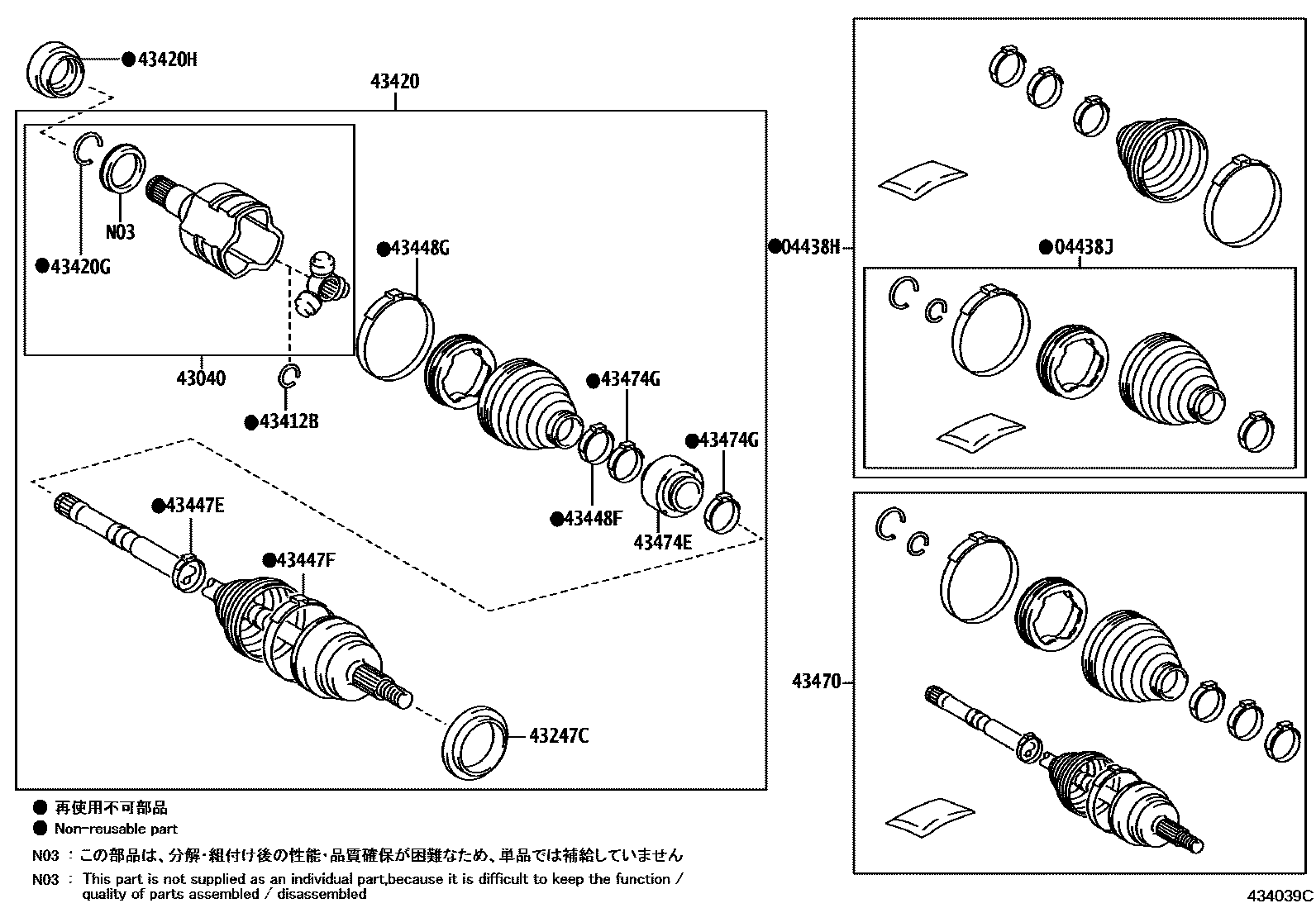

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1 0004 1LH 0005 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-10020iMZAA10201810-201909

sub04428-10021

main04428-10021iMZAA10201909-202207

main04428-44062iMZAH1#201811-202207

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-10120iMZAA10201810-202207

main04438-42181iMZAH1#201811-202207

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-12170iMZAA10201810-202207

main43040-33030iMZAH1#201811-202207

43247CDEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2

main43247-47010iMZAA10201810-202207

main43247-76010iMZAH1#201811-202207

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-12070iMZAA10201810-202207

main43425-28010iMZAH1#201811-202207

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-76010iMZAH1#201811-202207

main43420-76020iMZAA10201810-202207

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-33002iMZAA10,MZAH1#201810-202207

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iMZAA10,MZAH1#201810-202207

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12230iMZAA10201810-202207

main42345-42100iMZAH1#201811-202207

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12240iMZAA10201810-202207

main42345-42090iMZAH1#201811-202207

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12230iMZAA10201810-202207

main42345-33120iMZAH1#201811-202207

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12180iMZAA10201810-202207

main42345-33140iMZAH1#201811-202207

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-79245iMZAH1#201811-202207

main43470-80396iMZAA10201810-202207

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-12160iMZAA10201810-202207

main43474-48090iMZAH1#201811-202207

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-12090iMZAA10,MZAH1#201810-202207

15 parts on this diagram · 5 diagrams in section
