TRANSAXLE ASSY(CVT)

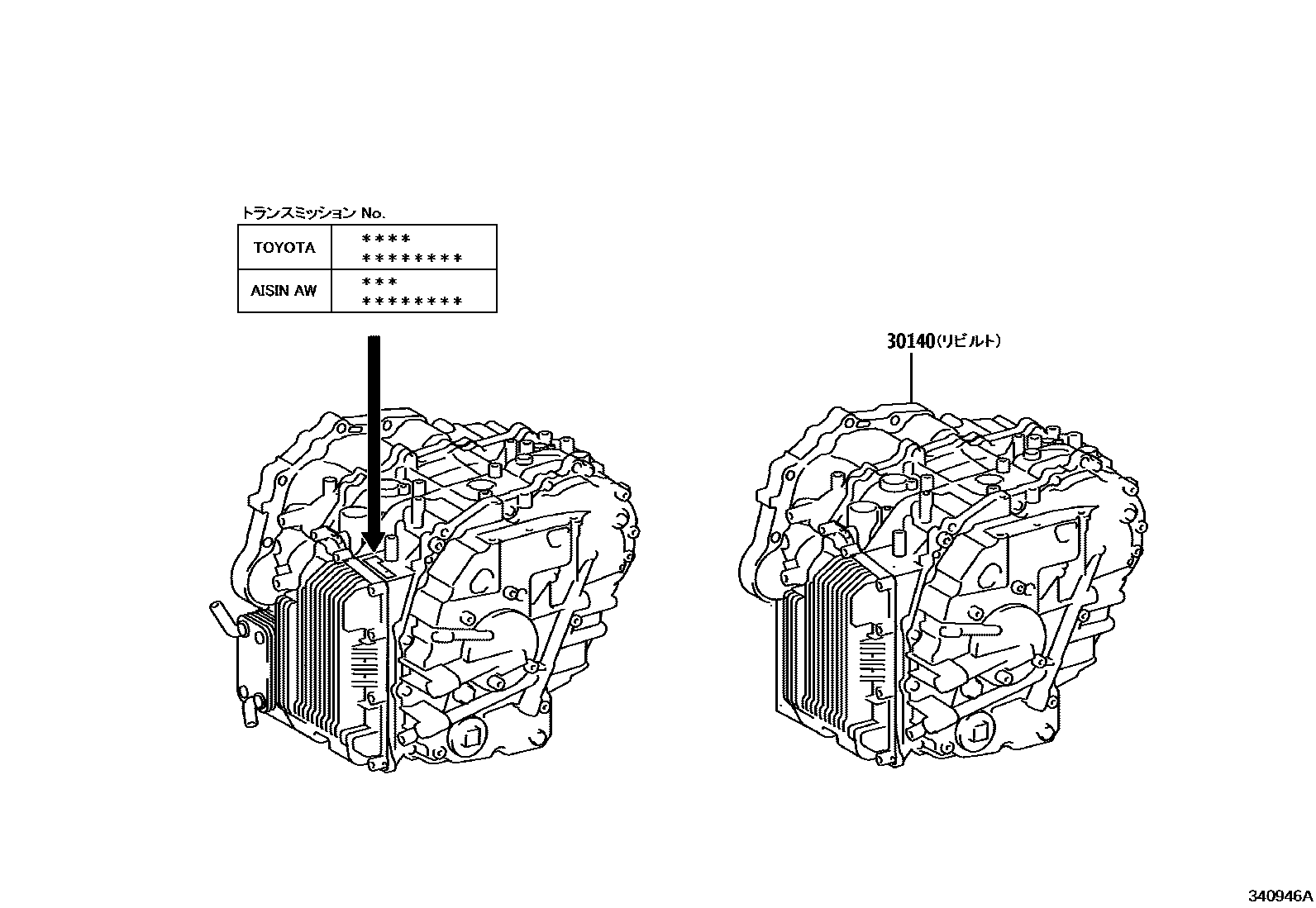

Parts diagram

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-10080i201810-202108

main30140-16020i202108-202207

main30140-76040i201904-202108

main30140-76050i202108-202207

1 parts on this diagram · 6 diagrams in section
