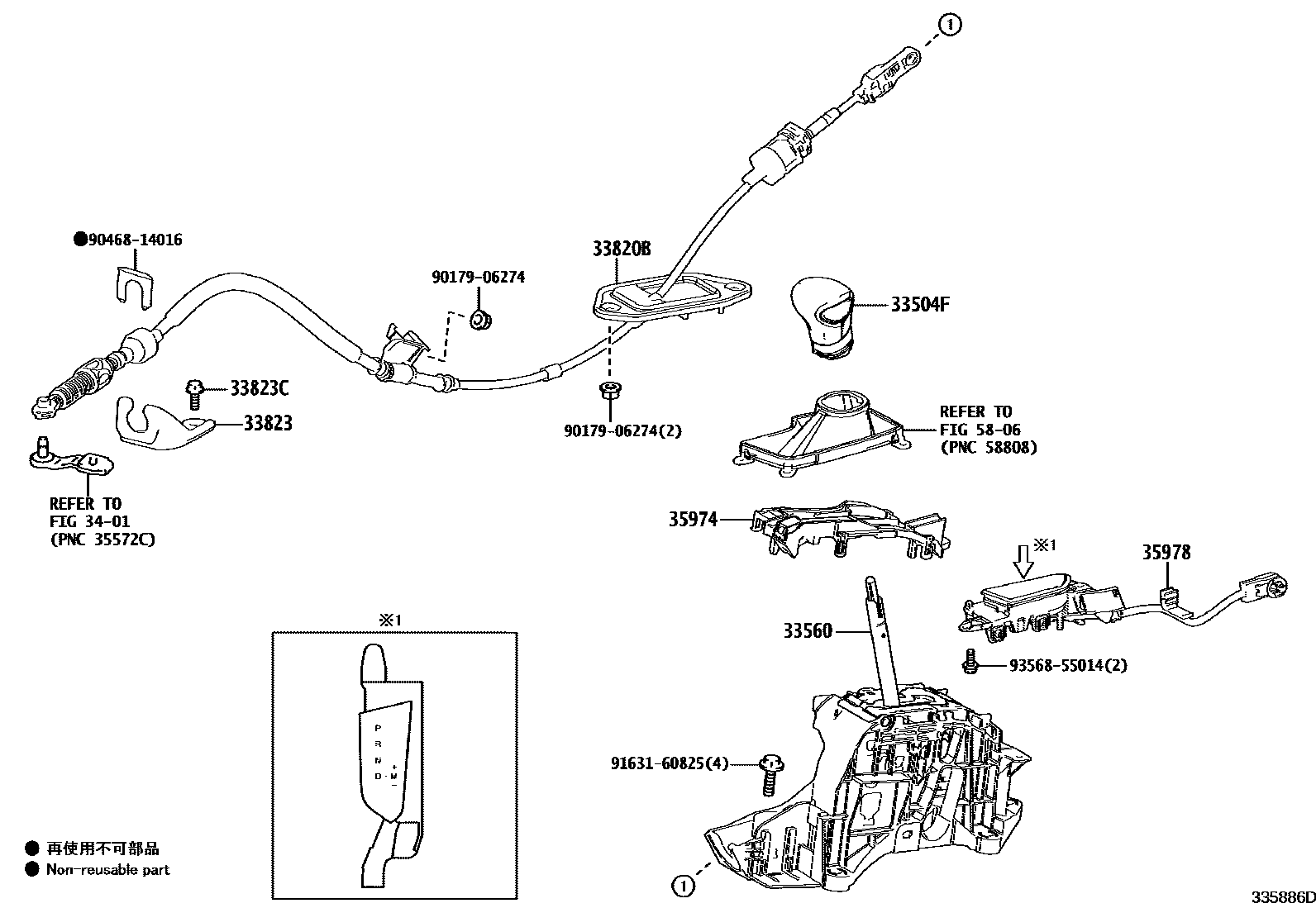

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33220-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,4#,8#

main33504-33230-C0iMZAA10,MZAH1#201810-202207

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33400iMZAA10,MZAH1#201810-201812

main33560-76040iMZAA10,MZAH1#201901-202207

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-76021iMZAA10201810-202207

main33820-76041iMZAH1#201811-202009

sub33820-76042

main33820-76042iMZAH1#202010-202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMZAA10201810-202207

main33823-12350iMZAH1#201811-202207

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMZAA10,MZAH1#201810-202207

3401

35974HOUSING, POSITION INDICATOR, LOWER

main35974-76020iMZAA10,MZAH1#201810-202207

35978INDICATOR, SHIFT POSITION

main35978-76030iMZAA10201810-202207

main35978-76040iMZAH1#201811-202207

5806

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
