EXHAUST PIPE

0001 1 0002 1 0003 1

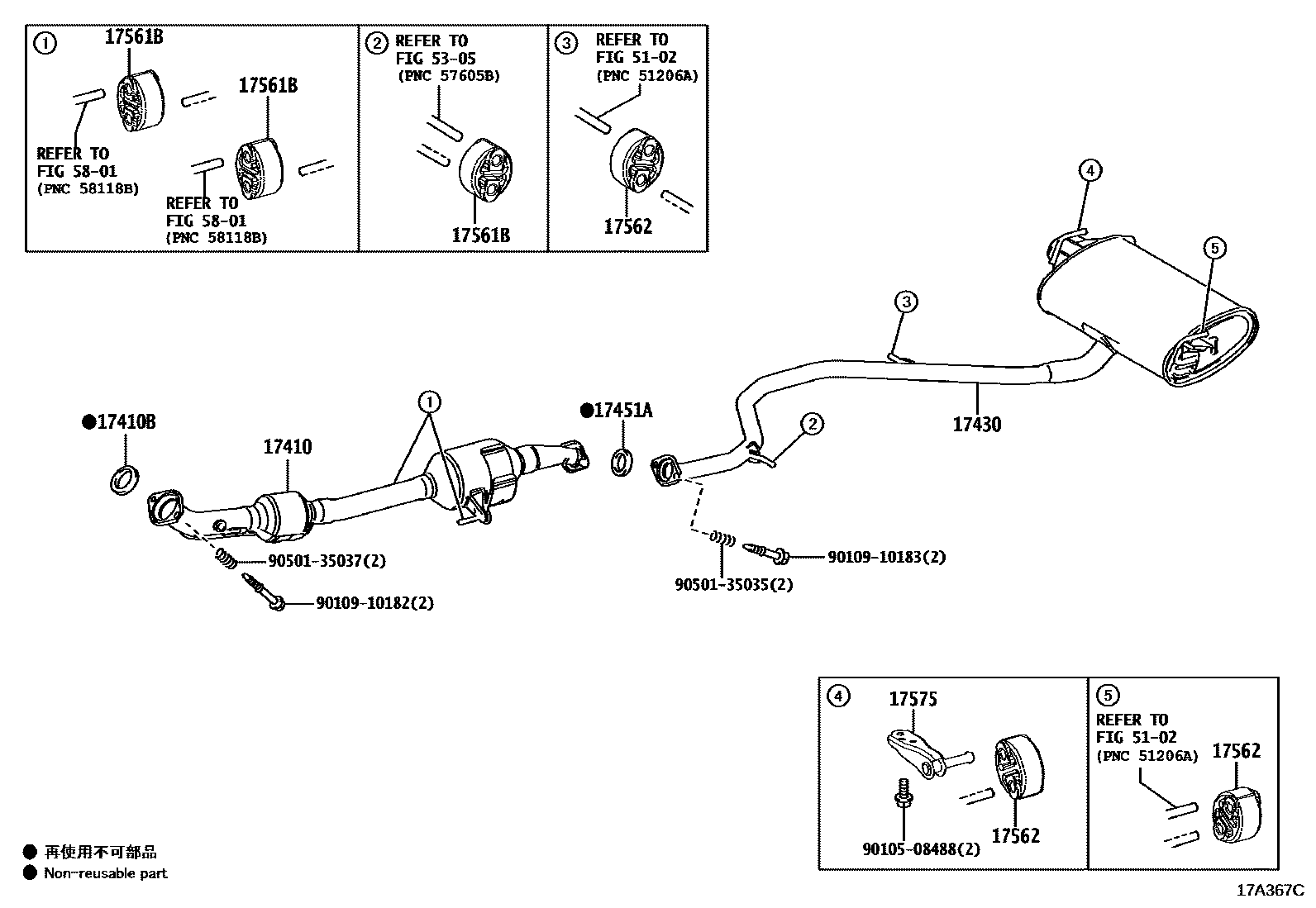

17410PIPE ASSY, EXHAUST, FRONT

main17410-24321iM20AFXS..MZAH1#201811-202108

main17410-24360iM20AFKS..MZAA10201810-202207

sub17410-24361

sub17451-24010

sub17451-24020

main17410-24530iM20AFXS..MZAH1#202108-202207

17410BGASKET, EXHAUST PIPE

main17451-28040iM20#..MZAA10,MZAH1#201810-202207

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-24400iM20#..MZAA10,MZAH10201810-202207

main17430-24410iM20AFXS..MZAH15201811-202207

main17430-24350iM20AFXS..MZAH10201811-202207

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042iM20#..MZAA10,MZAH1#201810-202207

sub17451-23043

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040×3iM20AFKS..MZAA10201810-202207

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010×3iM20AFKS..MZAA10201810-202207

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030iM20#..MZAA10,MZAH1#201810-202207

5102

5305

5801

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

15 parts on this diagram · 3 diagrams in section
