ENGINE OVERHAUL GASKET KIT

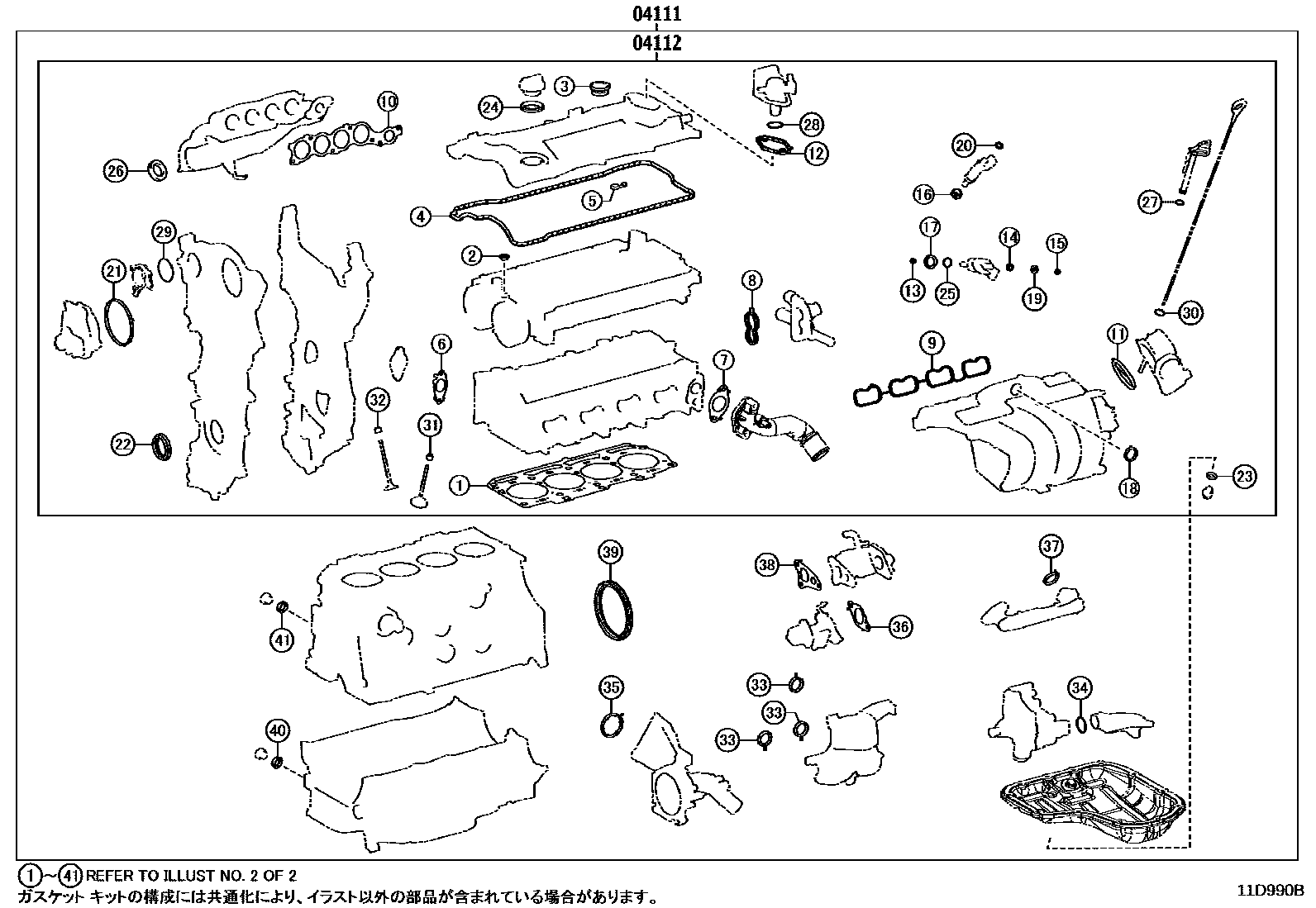

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-24110i201810-202107
main04111-24111i202107-202207
main04111-24140i201811-202110
main04111-24141i202110-202207
sub04111-24142
04112GASKET KIT, ENGINE VALVE GRIND
main04112-24060i201810-202107
main04112-24061i202107-202207
main04112-24080i201811-202110
main04112-24081i202110-202207
sub04112-24082

2 parts on this diagram · 4 diagrams in section
