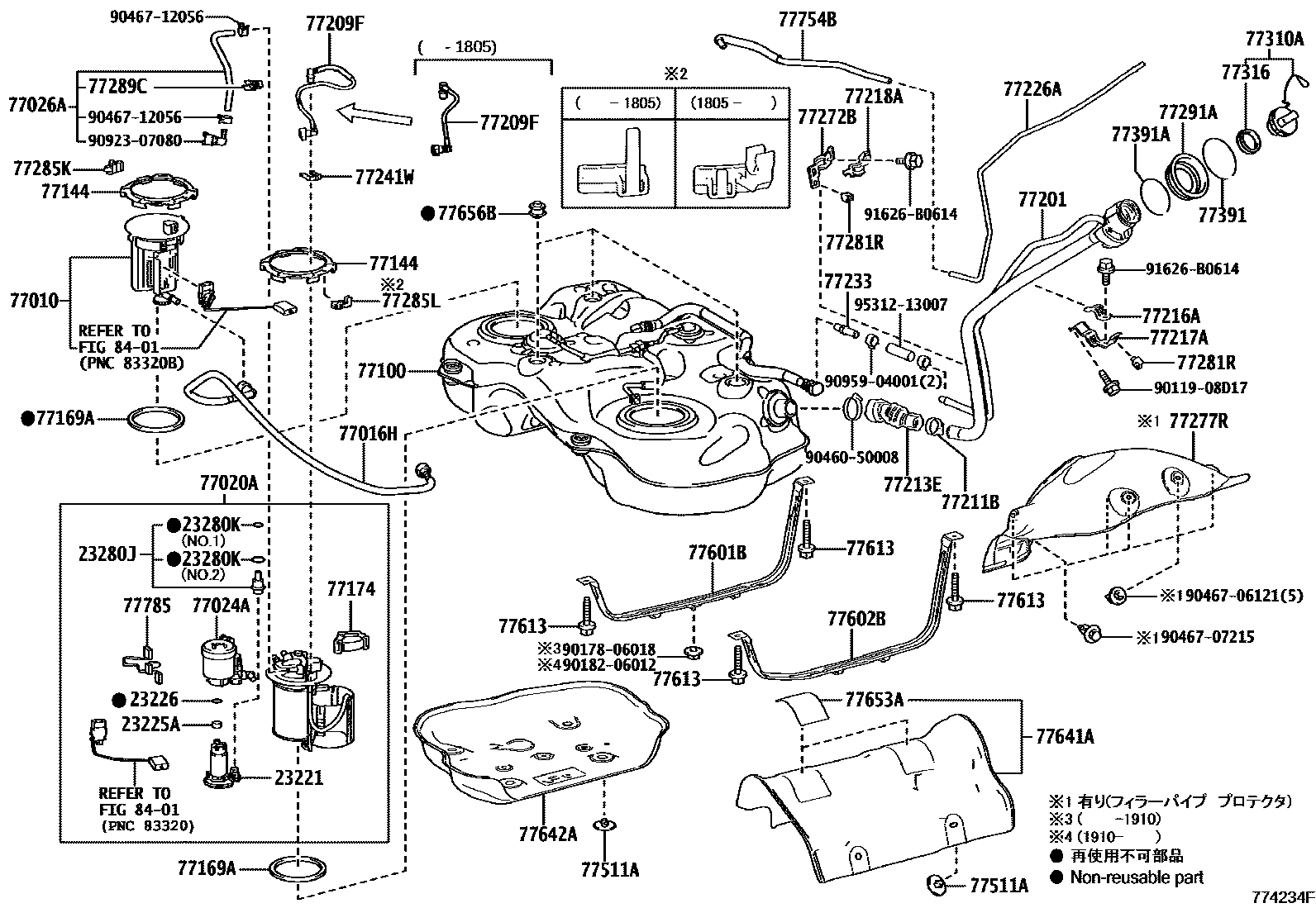

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ����� 0005 1����� ����� 0006 1����� ���� �����

23221PUMP, FUEL

main23220-47070i8NRFTS..NGX10¥26,400201805-201910

main23220-47080i8NRFTS..NGX50¥26,400201612-201910

23225ASPACER, FUEL PUMP

main23225-21020i8NRFTS,2ZRFXE..NGX10,50,ZYX10¥120201612-201910

23226RING, O(FOR FUEL PUMP)

main90301-08020i8NRFTS,2ZRFXE..NGX10,50,ZYX10¥250201612-201910

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZYX10¥6,000201612-201910

main23280-36020i8NRFTS..NGX10,50¥6,000201612-201910

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i8NRFTS,2ZRFXE..NGX10,50,ZYX10¥140201612-201910

main90301-15024i8NRFTS,2ZRFXE..NGX10,50,ZYX10¥140201612-201910

77010TUBE ASSY, FUEL TANK VENT

main77010-10180iNGX50¥6,700201612-201910

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-10010iNGX50¥1,980201612-201910

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-10100iZYX10¥47,200201612-201910

sub77020-12A60¥42,900

main77020-10110iNGX10¥51,800201805-201910

main77020-10120iNGX50¥51,800201612-201910

main77020-12A60iZYX11¥42,900201910

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-10010iNGX50¥11,100201612-201910

main77024-10020iZYX11¥6,500201612-201910

main77024-10030iNGX10¥11,100201805-201910

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-10040iNGX10¥1,710201805-201910

main77026-10050iNGX50¥570201612-201910

main77026-47040iZYX10¥1,540201612-201910

77100TANK ASSY, FUEL

main77001-10370iZYX11¥30,000201701-202208

sub77001-10430¥30,000

main77001-10380iNGX10¥33,200201805-202208

sub77001-10420¥33,200

main77001-10390iNGX50¥33,200201612-202208

sub77001-10410¥33,200

main77001-10410iNGX50¥33,200202208

main77001-10420iNGX10¥33,200202208

main77001-10430iZYX11¥30,000202208

main77001-47220iZYX10¥30,900201612-201701

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iNGX50¥1,270201612-201910

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iNGX50¥220201612-202207

main77169-47040iNGX10,ZYX11¥700202208

77174SUPPORT, FUEL SUCTION, NO.1

main77174-75010iNGX10,50¥410201612-201910

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10230iNGX10,50,ZYX11¥6,600201612-201910

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-10130iNGX10¥1,540201805-202207

main77209-10141iNGX50¥1,170201612-201805

main77209-10142iNGX50¥1,340201805-201902

sub77209-10143¥1,120

main77209-10143iNGX50¥1,120201903-202208

sub77209-10150¥940

main77209-10150iNGX50¥940202208

main77209-12360iNGX10¥1,840202208

main77209-47100iZYX11¥1,180201612-202207

main77209-76050iZYX11¥1,520202208

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-40007iNGX10,50,ZYX10¥190201612-201910

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-47120iNGX10,50,ZYX10¥1,410201612-202207

main77213-52270iNGX10,50,ZYX11¥1,530202208

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-47090iNGX10,50,ZYX10¥310201612-201910

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47110iNGX10,50,ZYX10¥570201612-201910

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-47080iNGX10,50,ZYX10¥410201612-201910

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-10020iNGX10,50,ZYX10¥1,520201612-201910

77233JOINT, FUEL HOSE

main77233-60020iNGX10,50,ZYX10¥530201612-201910

77241WCLIP, TUBE JOINT

main77241-33011iNGX10,50,ZYX10¥80201612-202108

main77241-60550iNGX10¥50202104

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-47050iNGX10,50,ZYX11¥750201612-201910

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-10070iNGX10,50,ZYX10..S,ST¥2,880201612-201910

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-30110iNGX10,50,ZYX10¥190201612-201910

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iNGX10¥1,670201805-201910

main77285-30350iNGX50,ZYX11¥200201612-201910

77285LCLAMP, FUEL TUBE, NO.1

main77285-10070iNGX50¥240201612-201805

main77285-12210iNGX50¥280201805-201910

77289CCLAMP, FUEL TUBE, NO.4

main77289-42010iNGX50¥210201612-201910

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-10040iNGX10,50,ZYX10¥1,130201612-201910

77310ACAP ASSY, FUEL TANK

main77300-12020iNGX10,50,ZYX11¥1,660201612-202207

main77300-48020iNGX10,50,ZYX11¥1,960202208

77316GASKET, FUEL TANK CAP

main77316-52040iNGX10,50,ZYX10¥230201612-202208

main77316-75020iNGX10,50,ZYX11¥200202208

77391RING, FUEL INLET BOX

main77391-75010iNGX10,50,ZYX10¥170201612-201910

77391ARING, FUEL INLET BOX

main77391-12020iNGX10,50,ZYX10¥180201612-201910

77511ABRACKET, FUEL TANK

main77512-35140iNGX50¥230201612-201910

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-10080iNGX10¥1,540201805-201910

main77601-10090iNGX50¥2,010201612-201910

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-10030iNGX10¥1,540201805-201910

main77602-10070iNGX50¥2,010201612-201910

77613BOLT, FUEL TANK BAND SET

main90119-10995iNGX10,50¥190201612-201910

77641APROTECTOR, FUEL TANK, NO.1

main77606-10050iNGX50¥5,800201612-201910

main77641-47070iZYX10¥4,860201612-201910

77642APROTECTOR, FUEL TANK, NO.2

main77642-10030iNGX50¥2,560201612-201910

77653ACUSHION, FUEL TANK, NO.3

main77653-60060iNGX50¥500201612-201910

77656BCUSHION, FUEL TANK, NO.6

main77656-30030iNGX50¥240201612-201910

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-10020iNGX10¥1,790201805-201910

main77754-10030iNGX50¥1,670201612-201910

main77754-47090iZYX11¥1,760201612-201910

77785HARNESS, FUEL PUMP

main77785-12010iNGX10,50,ZYX10¥870201612-201910

main77785-12010iNGX10¥870201910

8401

9011908D17

main90119-08D17¥100

9017806018

main90178-06018¥80

9018206012

main90182-06012¥60

9046050008

main90460-50008¥240

9046706121

main90467-06121¥220

9046707215

main90467-07215¥80

9046712056

main90467-12056¥70

9092307080

main90923-07080¥570

9095904001

main90959-04001¥240

91626B0614

main91626-B0614¥60

9531213007

main95312-13007¥160

57 parts on this diagram · 6 diagrams in section
