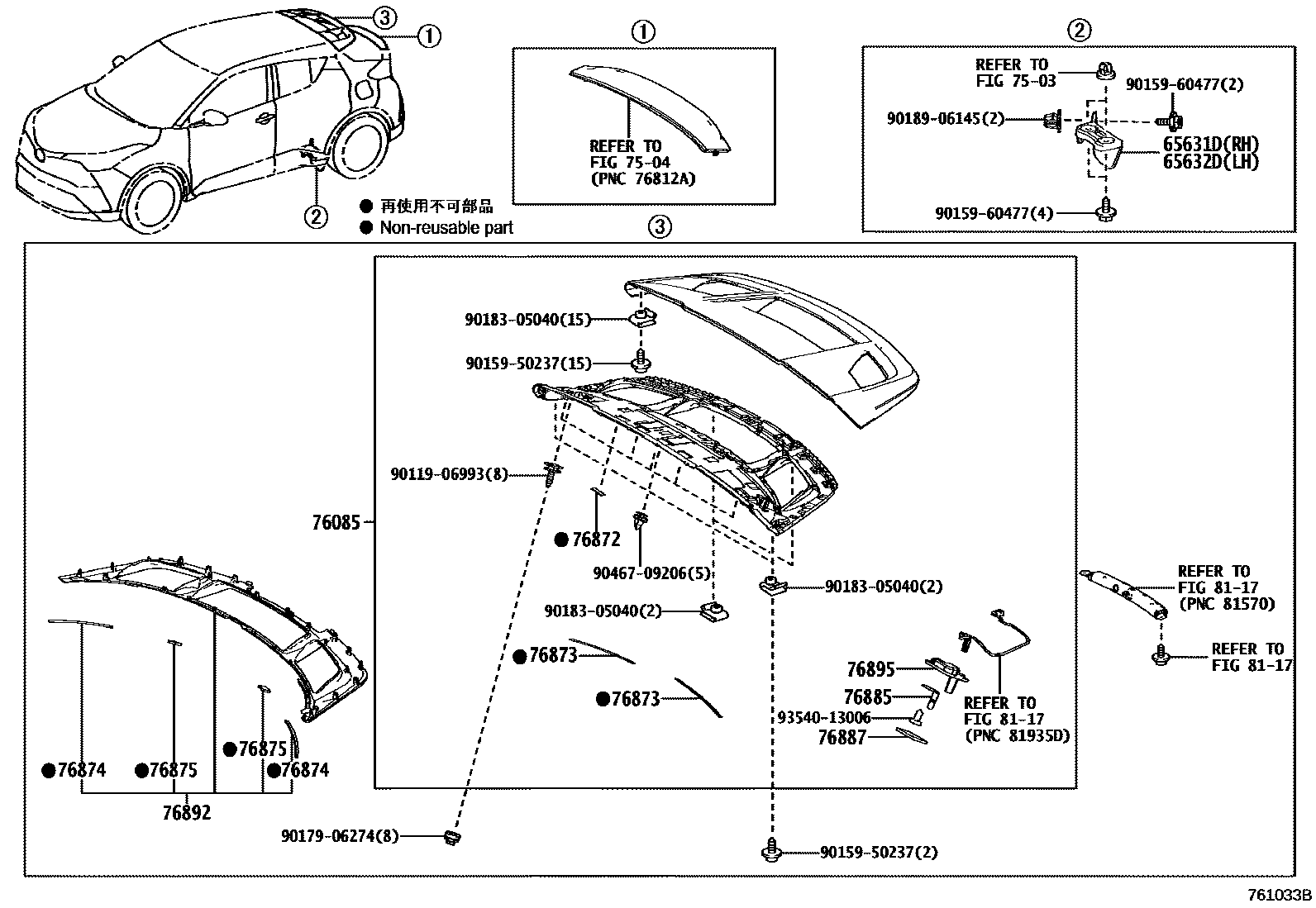

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-10010iNGX10,50,ZYX11201612-201910

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-10010iNGX10,50,ZYX11201612-201910

7503

7504

76085SPOILER SUB-ASSY, REAR

main76085-10902-A0iNGX10,50,ZYX11201612-202109

WHITE PEARL CS.,070

main76085-10902-A1iNGX10,50,ZYX10201612-201910

WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR

main76085-10902-A2iNGX10,50,ZYX11202109

PLATINUM WHITE PEARL MC.,089

main76085-10902-B0iNGX10,50,ZYX10..G,GT201612-201910

MEYAL STREAM ME.,1K0

main76085-10902-B0iNGX10,50,ZYX11201910

MEYAL STREAM ME.,1K0 ,2TA ,2TD

main76085-10902-B0iNGX10,50,ZYX10..S,ST201612-201910

MEYAL STREAM ME.,1K0 ,2TA ,2TR

main76085-10902-B2iNGX10,50,ZYX11202208

CEMENT GRAY ME.,1H5

main76085-10902-C0iNGX10,50,ZYX11201612-201910

BLACK MC.,209

main76085-10902-C1iNGX10,50,ZYX10201612-201910

BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW

main76085-10902-C1iNGX10,50,ZYX11201910

BLACK,2NA ,2NH ,2NK ,2PQ ,2TB ,2TC ,2VP

main76085-10902-C2iNGX10,50,ZYX10..G,GT201812-201910

BLACKISH AGEHA GF.,221

main76085-10902-C3iNGX10,50,ZYX11..CVT..(G,GT)202106-202208

SPARKLING BLACK PEARL CS.,220

main76085-10902-C4iNGX10,50,ZYX11..CVT..(G,GT)202208

INAZUMA SPARKING BLACK GF,224

main76085-10902-D0iNGX10,50,ZYX10201612-201910

RED MC.,3T3

main76085-10902-D1iNGX10,50,ZYX11201910

EMOTIONAL RED 2,3U5

main76085-10902-E0iNGX10,50,ZYX10..G,GT201612-201910

DK. BROWN M.M.,4U3

main76085-10902-E0iNGX10,50,ZYX10..S,ST201612-201910

DK. BROWN M.M.,2TP ,4U3

main76085-10902-E1iNGX10,50,ZYX11201910-202106

ORANGE ME.,4R8

main76085-10902-F0iNGX10,50,ZYX11201612-201910

YELLOW,5A3

main76085-10902-G0iNGX10,50,ZYX10201612-201910

RADIANT GREEN ME.,6W9

main76085-10902-G1iNGX10,50,ZYX11201910-202208

OXIDE BRONZE ME.,6X1

main76085-10902-J0iNGX50,ZYX10201612-201805

BLUE ME.,8T7

main76085-10902-J1iNGX10,50,ZYX10201801-202208

NEBULA BLUE ME.,8X2

main76085-10902-J3iNGX10,50,ZYX11..CVT..(G,GT)202008-202106

DK.BLUE MC.,8S6

main76085-10902-J4iNGX10,50,ZYX11202208

DK.BLUE M.M.,8W7

76872PROTECTOR, REAR SPOILER, NO.1

main76872-10050iNGX10,50,ZYX11201612-201910

76873PROTECTOR, REAR SPOILER, NO.2

main76873-10070iNGX10,50,ZYX10201612-201910

76874PROTECTOR, REAR SPOILER, NO.3

main76874-10060iNGX10,50,ZYX10201612-201910

76875PROTECTOR, REAR SPOILER, NO.4

main76875-10040iNGX10,50,ZYX10201612-201910

76885RETAINER, REAR SPOILER, NO.5

main76885-10010iNGX10,50,ZYX10201612-201910

76887SEAL, REAR SPOILER

main76887-10050iNGX10,50,ZYX10201612-201910

76892SPOILER, REAR NO.2

main76892-10010iNGX10,50,ZYX10201612-201910

76895PROTECTOR, REAR SPOILER, NO.5

main76895-10010iNGX10,50,ZYX10201612-201910

8117

9011906993

main90119-06993

9015950237

main90159-50237

9015960477

main90159-60477

9017906274

main90179-06274

9018305040

main90183-05040

9018906145

main90189-06145

9046709206

main90467-09206

9354013006

main93540-13006

22 parts on this diagram · 2 diagrams in section
