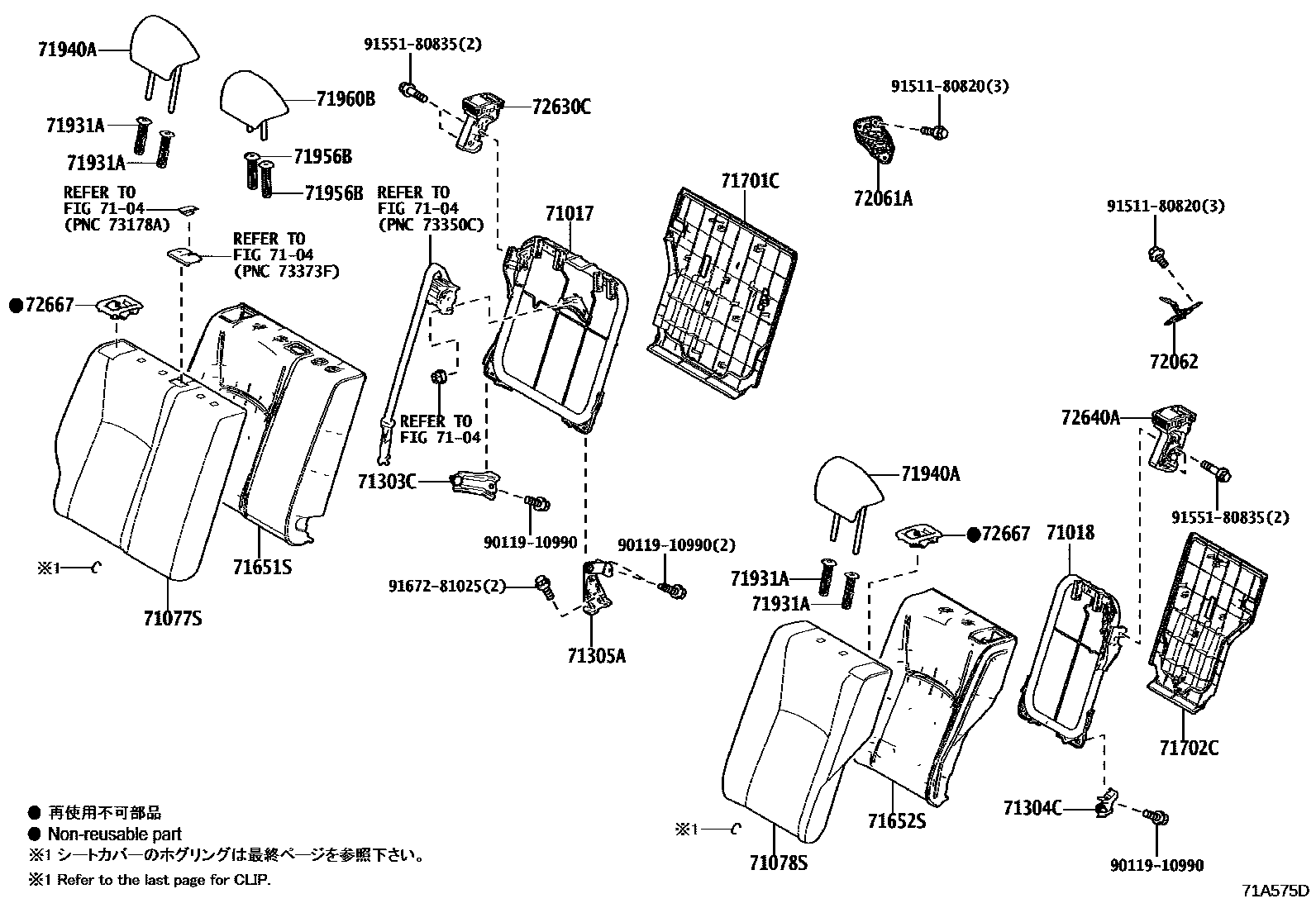

REAR SEAT & SEAT TRACK

0001 1������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1�������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-10120iNGX10,50,ZYX10201612-201807

sub71017-47150

main71017-47150iNGX10,50,ZYX10201808-201910

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-10060iNGX10,50,ZYX10201612-201807

sub71018-47100

main71018-47100iNGX10,50,ZYX10201808-201910

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-10A30-C1iNGX10,50,ZYX10..S,ST201906-201910

BLACK,TRIM2#

sub71077-10A30

main71077-10A30-C2iNGX10,50,ZYX10..S,ST201612-201906

BLACK,TRIM2#

sub71077-10A30

main71077-10A40-C2iNGX10,50,ZYX10..G,GT201612-201906

LICORICE,TRIM2#

sub71077-10A40

main71077-10A40-C5iNGX10,50,ZYX10..G,GT201906-201910

LICORICE,TRIM2#

sub71077-10A40

main71077-10B40-C4iNGX10,50,ZYX11..S,ST201910

BLACK,TRIM2#

main71077-10B50-C3iNGX10,50,ZYX11..G,GT201910-202202

BLACK,TRIM4#

main71077-10B50-C6iNGX10,50,ZYX11..G,GT202202-202303

BLACK,TRIM4#

main71077-10B51-C6iNGX10,50,ZYX11..G,GT202303

BLACK,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-10A00-C1iNGX10,50,ZYX10..S,ST201906-201910

BLACK,TRIM2#

main71078-10A00-C3iNGX50,ZYX10..S,ST201612-201805

BLACK,TRIM2#

main71078-10A00-C4iNGX10,50,ZYX10..S,ST201805-201906

BLACK,TRIM2#

main71078-10A10-C2iNGX10,50,ZYX10..G,GT201805-201906

LICORICE,TRIM2#

sub71078-10A10

main71078-10A10-C5iNGX10,50,ZYX10..G,GT201906-201910

LICORICE,TRIM2#

sub71078-10A10

main71078-10A10-E1iNGX50,ZYX10..G,GT201612-201805

LICORICE,TRIM2#

sub71078-10A10

main71078-10A80-B4iNGX10,50,ZYX11..S,ST201910

DARK GREY,TRIM2#

main71078-10A90-E3iNGX10,50,ZYX11..G,GT201910-202202

BLACK,TRIM4#

main71078-10A90-E4iNGX10,50,ZYX11..G,GT202202-202303

BLACK,TRIM4#

main71078-10A91-E4iNGX10,50,ZYX11..G,GT202303

BLACK,TRIM4#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-10060iNGX10,50,ZYX10201612-201910

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-10100iNGX10,50,ZYX10201612-201910

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-10060iNGX10,50,ZYX10201612-201910

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-10310iNGX10,50,ZYX11201612-201910

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-10230iNGX10,50,ZYX11201612-201910

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-10010iNGX10,50,ZYX11201612-201910

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-10010iNGX10,50,ZYX11201612-201910

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5iNGX10,50,ZYX11..S,ST201910

main71930-47050-C5iNGX10,50,ZYX11..S,ST201612-201910

main71931-47030-C4iNGX10,50,ZYX11..S,ST201612-201910

main71931-47030-C4iNGX10,50,ZYX11..G,GT201910

71940AHEADREST ASSY, REAR SEAT

main71940-10090-C2iNGX50,ZYX10..S,ST201612-201805

BLACK,TRIM2#

sub71940-10090

main71940-10090-C4iNGX10,50,ZYX10..S,ST201805-201906

BLACK,TRIM2#

sub71940-10090

main71940-10090-C5iNGX10,50,ZYX10..S,ST201906-201910

BLACK,TRIM2#

sub71940-10090

main71940-10150-C3iNGX50,ZYX10..G,GT201612-201711

BLACK,TRIM20

main71940-10150-E1iNGX50,ZYX10..G,GT201711-201805

LICORICE,TRIM2#

main71940-10150-E1iNGX50,ZYX10..G,GT201612-201711

LICORICE,TRIM20

main71940-10152-E6iNGX10,50,ZYX10..G,GT201805-201910

LICORICE,TRIM2#

sub71940-10152

main71940-10220-B4iNGX10,50,ZYX11..S,ST201910

DARK GREY,TRIM2#

main71940-10230-E5iNGX10,50,ZYX11..G,GT201910

ORCHID BROWN,TRIM4#

71956BSUPPORT, REAR SEAT HEADREST

main71930-47050-C5iNGX10,50,ZYX11..S,ST201612-201910

main71930-47050-C5iNGX10,50,ZYX11..G,GT201910

main71931-47030-C4iNGX10,50,ZYX11..G,GT201612-201910

main71931-47030-C4iNGX10,50,ZYX11..G,GT201910

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-10010-C2iNGX50,ZYX10201612-201805

BLACK,TRIM2#

sub71960-10010

main71960-10010-C3iNGX10,50,ZYX10201805-201906

BLACK,TRIM2#

sub71960-10010

main71960-10010-C4iNGX10,50,ZYX10201906-201910

BLACK,TRIM2#

sub71960-10010

main71960-10040-C4iNGX10,50,ZYX11..G,GT201910-202001

DARK GREY,TRIM4#

sub71960-10041

main71960-10040-C4iNGX10,50,ZYX11..G,GT201910-202001

DARK GREY,TRIM2#

sub71960-10041

main71960-10041-C4iNGX10,50,ZYX11..CVT..(G,GT)202002-202307

BLACK,TRIM2#

main71960-10041-C4iNGX10,50,ZYX11..S,ST202002-202307

BLACK,TRIM4#

main71960-10041-C4iNGX10,50,ZYX11..S,ST202002-202307

BLACK,TRIM2#,4#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-10010iNGX10,50,ZYX10201612-201910

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-10010iNGX10,50,ZYX10201612-201910

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

sub72630-47050

main72630-47050-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

sub72630-47050

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

sub72640-47050

main72640-47050-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

sub72640-47050

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main72667-47010-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

9011910990

main90119-10990

9151180820

main91511-80820

9155180835

main91551-80835

9167281025

main91672-81025

25 parts on this diagram · 6 diagrams in section
