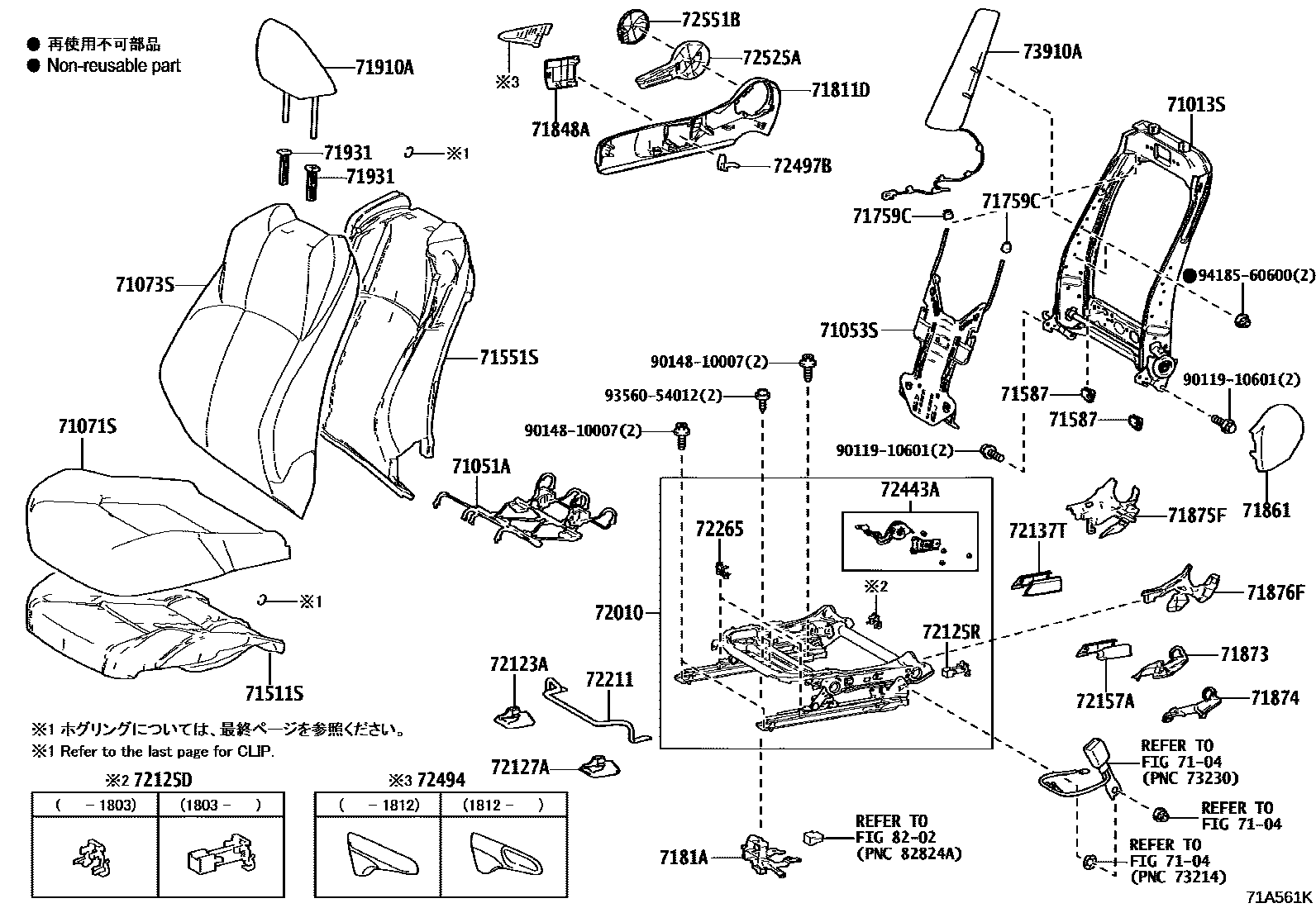

FRONT SEAT & SEAT TRACK

0001 1������:��(������) 0002 1�������:��(������) 0003 1������:��(������) 0004 1�������:��(������) 0005 1�������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-47130iNGX50,ZYX10201612-201805

sub71013-47150

main71013-47150iNGX10,50,ZYX11201805-202307

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iNGX10,50,ZYX10201612-201910

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iNGX10,50,ZYX10..S,ST201612-202307

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-10A00-B2iNGX50,ZYX10..S,ST201612-201805

BLACK,TRIM2#

main71071-10A01-B4iNGX50,ZYX10..S,ST201805-201905

BLACK,TRIM2#

main71071-10A01-B5iNGX10,50,ZYX10..S,ST201906-201910

BLACK,TRIM2#

main71071-10A10-E3iNGX50,ZYX10..G,GT201612-201805

LICORICE,TRIM2#

main71071-10A11-E5iNGX10,50,ZYX10..G,GT201805-201910

LICORICE,TRIM2#

main71071-10A80-C6iNGX10,50,ZYX11..S,ST201910-202008

BLACK,TRIM2#

main71071-10A80-C9iNGX10,50,ZYX11..S,ST202008

BLACK/DK.GRAY/WATER WHITE,TRIM2#

main71071-10A90-C5iNGX10,50,ZYX11..G,GT201910-202008

BLACK,TRIM4#

main71071-10B00-C6iNGX10,50,ZYX11..G,GT202008

BLACK/ORCHID BROWN/DK.GRA,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-10A00-B2iNGX50,ZYX10..S,ST201612-201805

BLACK,TRIM2#

sub71073-10A00

main71073-10A00-B4iNGX10,50,ZYX10..S,ST201805-201812

BLACK,TRIM2#

sub71073-10A00

main71073-10A00-B5iNGX10,50,ZYX10..S,ST201812-201910

BLACK,TRIM2#

sub71073-10A00

main71073-10A10-E2iNGX50,ZYX10..G,GT201612-201712

LICORICE,TRIM2#

sub71073-10A10

main71073-10A10-E3iNGX50,ZYX10..G,GT201712-201805

LICORICE,TRIM2#

sub71073-10A10

main71073-10A11-E5iNGX10,50,ZYX10..G,GT201805-201812

LICORICE,TRIM2#

sub71073-10A11

main71073-10A11-E6iNGX10,50,ZYX10..G,GT201812-201910

LICORICE,TRIM2#

sub71073-10A11

main71073-10B20-C5iNGX10,50,ZYX11..S,ST201910

BLACK,TRIM2#

main71073-10B30-C6iNGX10,50,ZYX11..G,GT201910-202008

BLACK,TRIM4#

main71073-10B40-C6iNGX10,50,ZYX11..G,GT202008

BLACK,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-10310iNGX10,50,ZYX10201612-201910

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-10240iNGX10,50,ZYX10201612-201910

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iNGX10,50,ZYX10201612-202307

71759CHOOK, FRONT SEATBACK, NO.1

main71759-50040iNGX10..ST201911-202307

main71759-52050iNGX10,50,ZYX10..G,GT201612-201911

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47140-C1iNGX10,50,ZYX10..S,ST201612-201910

BLACK,TRIM2#

sub71811-47140

main71811-47140-C1iNGX10,50,ZYX11..G,GT201910-202008

BLACK,TRIM2#,4#,8#

sub71811-47140

main71811-47170-C1iNGX10,50..CVT..ST202008

BLACK,TRIM2#,4#,8#

sub71811-47170

main71811-47170-C1iNGX10,50,ZYX10..G,GT201612-201910

BLACK,TRIM2#

sub71811-47170

main71811-47170-C1iNGX10,50,ZYX11..G,GT202008

sub71811-47170

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iNGX10,50,ZYX10201612-201910

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-10020-C0iNGX10,50,ZYX11..S,ST202101

BLACK,TRIM2#,4#

main71848-10020-C0iNGX10,50,ZYX11..S,ST202101

BLACK,TRIM2#

main71848-10020-C0iNGX10,50,ZYX11..S,ST202101

BLACK,TRIM4#

main71848-47040-C1iNGX10,50,ZYX11..G,GT201910-202101

BLACK,TRIM2#,4#,8#

sub71848-47040

sub71848-10020

main71848-47040-C1iNGX10,50,ZYX10201612-202101

BLACK,TRIM2#

sub71848-47040

sub71848-10020

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

sub71861-47070

main71861-47070-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

sub71861-47070

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iNGX10,50,ZYX11201612-201910

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iNGX10,50,ZYX11201612-201910

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C1iNGX10,50,ZYX11..S,ST201612-201910

BLACK,TRIM2#

sub71875-47040

main71875-47040-C1iNGX10,50,ZYX11..S,ST201910

BLACK,TRIM2#,4#,8#

sub71875-47040

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C1iNGX10,50,ZYX11..S,ST201910

BLACK,TRIM2#,4#,8#

sub71875-47070

main71875-47070-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

sub71875-47070

71910AHEADREST ASSY, FRONT SEAT

main71910-10421-C1iNGX50,ZYX10..S,ST201612-201805

BLACK,TRIM2#

sub71910-10421

main71910-10421-C4iNGX10,50,ZYX10..S,ST201805-201906

BLACK,TRIM2#

sub71910-10421

main71910-10421-C5iNGX10,50,ZYX10..S,ST201906-201910

BLACK,TRIM2#

sub71910-10421

main71910-10431-C1iNGX50,ZYX10..G,GT201612-201805

BLACK,TRIM20

main71910-10431-E0iNGX50,ZYX10..G,GT201612-201805

LICORICE,TRIM20

main71910-10432-E1iNGX10,50,ZYX10..G,GT201805-201910

LICORICE,TRIM2#

main71910-10480-B4iNGX10,50,ZYX11..S,ST201910

DARK GREY,TRIM2#

main71910-10490-C5iNGX10,50,ZYX11..CVT..(G,GT)202208

BLACK/LT.BROWN,TRIM2#

main71910-10490-E5iNGX10,50,ZYX11..G,GT201910-202008

ORCHID BROWN,TRIM4#

main71910-10490-E6iNGX10,50,ZYX11..G,GT202008

ORCHID BROWN/DK.GRAY,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iNGX10,50,ZYX11..S,ST201910

main71930-47050-C5iNGX10,50,ZYX10201612-201910

main71931-47030-C4iNGX10,50,ZYX10201612-201910

main71931-47030-C4iNGX10,50,ZYX11..G,GT201910

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-10300iNGX10,50,ZYX10201806-201905

sub72010-10301

main72010-10301iNGX10,50,ZYX10201906-201910

main72010-47360iNGX10,50,ZYX10201612-201806

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-10100iNGX10,50,ZYX10201612-201910

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-47010iNGX10,50,ZYX10201803-201910

main72125-47020iNGX50,ZYX10201612-201803

72125RCOVER, SEAT TRACK, UPPER REAR NO.1

main72125-47010iNGX10,50,ZYX10201612-201910

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-10100iNGX10,50,ZYX11201612-201910

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iNGX10,50,ZYX10201612-201910

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-10090iNGX10,50,ZYX10201612-201910

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47050iNGX10,50,ZYX10201612-201910

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010iNGX50,ZYX10201612-201910

72443AGEAR, VERTICAL ADJUSTER, RH

main72443-10010iNGX10,50,ZYX10201612-201903

sub72443-10011

main72443-10011iNGX10,50,ZYX10201904-201910

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-10020-C0iNGX10,50,ZYX11..S,ST201812-202101

BLACK,TRIM2#

sub72494-10021

main72494-10020-C0iNGX10,50,ZYX11..G,GT201910-202101

BLACK,TRIM2#,4#

sub72494-10021

main72494-10021-C0iNGX10,50,ZYX11..CVT..(G,GT)202101

BLACK,TRIM4#

main72494-10021-C0iNGX10,50,ZYX11..S,ST202101

BLACK,TRIM2#

main72494-10021-C0iNGX10,50,ZYX11..S,ST202101

BLACK,TRIM2#,4#

main72494-47030-C1iNGX10,50,ZYX10201612-201812

BLACK,TRIM2#

sub72494-47030

72497BCOVER, VERTICAL ADJUSTER BRACKET, RH

main72498-47010iNGX10,50,ZYX11201612-201910

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-10070-C0iNGX10,50,ZYX11..G,GT201812-201910

BLACK,TRIM2#

main72525-10070-C0iNGX10,50,ZYX11..S,ST201910

BLACK,TRIM2#,4#

main72525-47040-C1iNGX10,50,ZYX10201612-201812

BLACK,TRIM2#

sub72525-47040

72551BCOVER, RECLINING HINGE, RH

main72551-47030-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

sub72551-47030

main72551-47030-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

sub72551-47030

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-10020iNGX10,50,ZYX10201612-201910

8202

9011910601

main90119-10601

9014810007

main90148-10007

9356054012

main93560-54012

9418560600

main94185-60600

40 parts on this diagram · 5 diagrams in section
