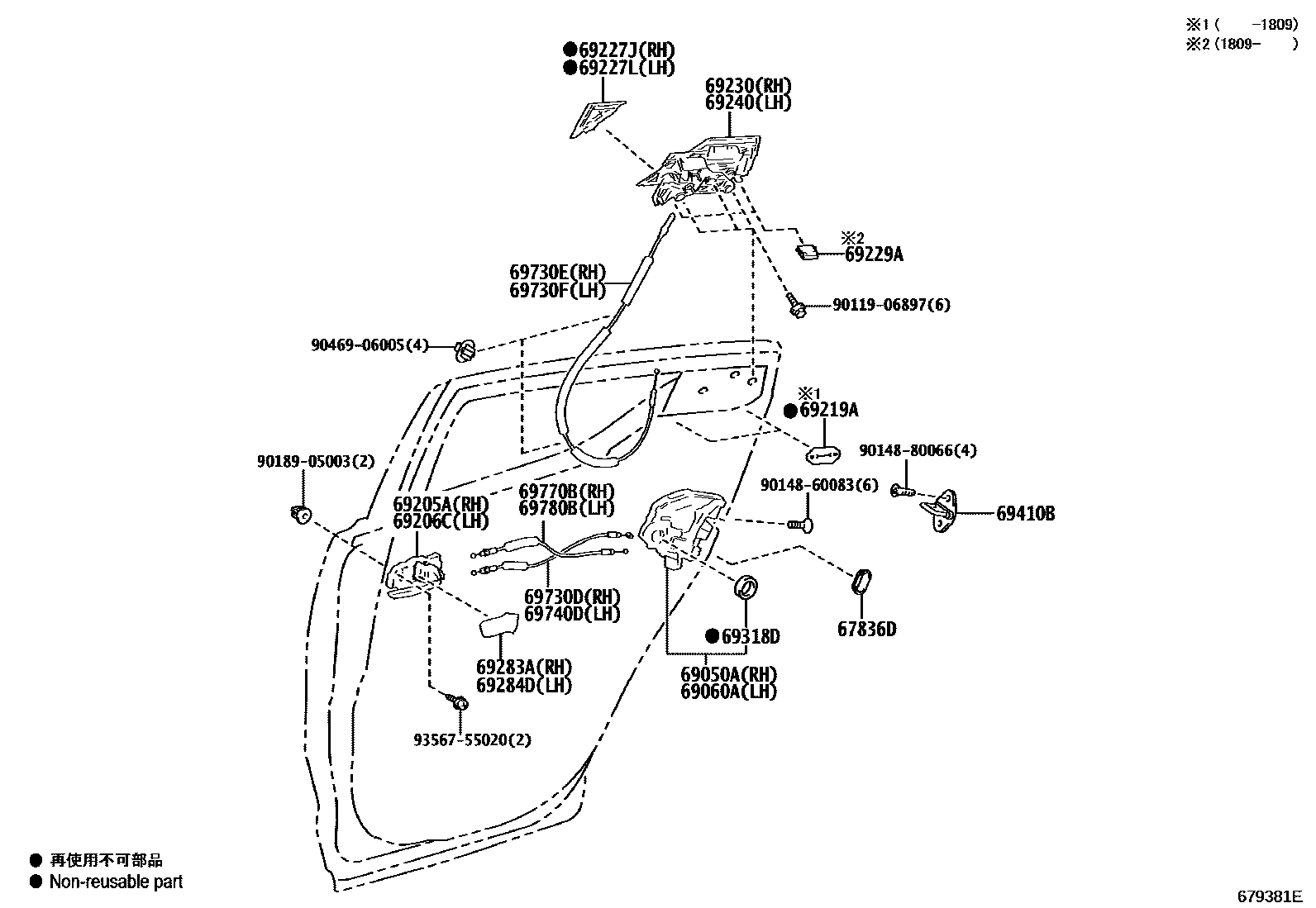

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-33030iNGX10,50,ZYX10201612-201910

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-10070iNGX10,50,ZYX10201612-201910

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-10070iNGX10,50,ZYX11201612-201910

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-10100-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

main69205-10100-C1iNGX10,50,ZYX11..G,GT201612-201910

BLACK,TRIM2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-10100-C1iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

main69206-10100-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

69219ASEAL, REAR DOOR OUTSIDE HANDLE

main69219-10020iNGX10,50,ZYX10201709-201809

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-10030iNGX10,50,ZYX10201612-201910

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-10020iNGX10,50,ZYX10201612-201910

69229ACAP, DOOR OUTSIDE HANDLE, NO.3

main69229-10010iNGX10,50,ZYX10201809-201910

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-10100-A0iNGX10,50,ZYX10201612-201808

WHITE PEARL CS.,070 ,2NA

sub69230-10101

main69230-10100-B0iNGX10,50,ZYX10201612-201808

METAL STREAM ME,1K0 ,2NK

sub69230-10101

main69230-10100-C0iNGX10,50,ZYX10201612-201808

BLACK MC.,209 ,2ND

sub69230-10101

main69230-10100-D0iNGX10,50,ZYX10201612-201808

RED MC.,2NE ,2NF ,3T3

sub69230-10101

main69230-10100-E0iNGX10,50,ZYX10201612-201808

DK. BROWN M.M.,2NC ,4U3

sub69230-10101

main69230-10100-F0iNGX10,50,ZYX10201612-201808

YELLOW,2JU ,2PQ ,5A3

sub69230-10101

main69230-10100-G0iNGX10,50,ZYX10201612-201808

RADIANT GREEN ME.,2NJ ,6W9

sub69230-10101

main69230-10100-J0iNGX50,ZYX10201612-201805

BLUE ME.,2PR ,2RW ,8T7

sub69230-10101

main69230-10100-J1iNGX10,50,ZYX10201801-201808

NEBULA BLUE ME.,2NG ,2NH ,8X2

sub69230-10101

main69230-10101-A0iNGX10,50,ZYX10..S,ST201809-202109

WHITE PEARL CS.,070 ,2NA

main69230-10101-A0iNGX10,50,ZYX10..S,ST201809-201910

WHITE PEARL CS.,070 ,2NA ,2TP

main69230-10101-A1iNGX10,50,ZYX11202109

PLATINUM WHITE PEARL MC.,089 ,2VP

main69230-10101-B0iNGX10,50,ZYX10201809-201910

METAL STREAM ME,1K0 ,2NK

main69230-10101-B1iNGX10,50,ZYX11201910

GRAY ME.,2NB

main69230-10101-B2iNGX10,50,ZYX11202208

CEMENT GRAY ME.,1H5

main69230-10101-C0iNGX10,50,ZYX10..S,ST201809-201910

BLACK MC.,209 ,2ND ,2TA

main69230-10101-C0iNGX10,50,ZYX10..G,GT201809-201910

BLACK MC.,209 ,2ND

main69230-10101-C0iNGX10,50,ZYX11201910

BLACK MC.,209 ,2TA

main69230-10101-C1iNGX10,50,ZYX10..G,GT201812-201910

BLACKISH AGEHA GF.,221 ,2TR

main69230-10101-C2iNGX10,50,ZYX11..CVT..(G,GT)202106-202208

SPARKLING BLACK PEARL CS.,220

main69230-10101-C3iNGX10,50,ZYX11..CVT..(G,GT)202208

INAZUMA SPARKING BLACK GF,224

main69230-10101-D0iNGX10,50,ZYX10201809-201910

RED MC.,2NE ,2NF ,3T3

main69230-10101-D1iNGX10,50,ZYX11201910

EMOTIONAL RED 2,2TB ,3U5

main69230-10101-E0iNGX10,50,ZYX10201809-201910

DK. BROWN M.M.,2NC ,4U3

main69230-10101-E1iNGX10,50,ZYX11201910-202012

ORANGE ME.,2TC ,4R8

main69230-10101-F0iNGX10,50,ZYX11201910

YELLOW,2PQ ,5A3

main69230-10101-F0iNGX10,50,ZYX10201809-201910

YELLOW,2JU ,2PQ ,5A3

main69230-10101-G0iNGX10,50,ZYX10201809-201910

RADIANT GREEN ME.,2NJ ,6W9

main69230-10101-G1iNGX10,50,ZYX11201910-202208

OXIDE BRONZE ME.,2TD ,6X1

main69230-10101-J1iNGX10,50,ZYX11201910-202208

NEBULA BLUE ME.,2NH ,8X2

main69230-10101-J1iNGX10,50,ZYX10201809-201910

NEBULA BLUE ME.,2NG ,2NH ,8X2

main69230-10101-J3iNGX10,50,ZYX11..CVT..(G,GT)202008-202106

DK.BLUE MC.,8S6

main69230-10101-J4iNGX10,50,ZYX11202208

DK.BLUE M.M.,8W7

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-10100-A0iNGX10,50,ZYX10201612-201808

WHITE PEARL CS.,070 ,2NA

sub69240-10101

main69240-10100-B0iNGX10,50,ZYX10201612-201808

METAL STREAM ME,1K0 ,2NK

sub69240-10101

main69240-10100-C0iNGX10,50,ZYX10201612-201808

BLACK MC.,209 ,2ND

sub69240-10101

main69240-10100-D0iNGX10,50,ZYX10201612-201808

RED MC.,2NE ,2NF ,3T3

sub69240-10101

main69240-10100-E0iNGX10,50,ZYX10201612-201808

DK. BROWN M.M.,2NC ,4U3

sub69240-10101

main69240-10100-F0iNGX10,50,ZYX10201612-201808

YELLOW,2JU ,2PQ ,5A3

sub69240-10101

main69240-10100-G0iNGX10,50,ZYX10201612-201808

RADIANT GREEN ME.,2NJ ,6W9

sub69240-10101

main69240-10100-J0iNGX50,ZYX10201612-201805

BLUE ME.,2PR ,2RW ,8T7

sub69240-10101

main69240-10100-J1iNGX10,50,ZYX10201801-201808

NEBULA BLUE ME.,2NG ,2NH ,8X2

sub69240-10101

main69240-10101-A0iNGX10,50,ZYX10..S,ST201809-201910

WHITE PEARL CS.,070 ,2NA ,2TP

main69240-10101-A0iNGX10,50,ZYX10..G,GT201809-202109

WHITE PEARL CS.,070 ,2NA

main69240-10101-A1iNGX10,50,ZYX11202109

PLATINUM WHITE PEARL MC.,089 ,2VP

main69240-10101-B0iNGX10,50,ZYX10201809-201910

METAL STREAM ME,1K0 ,2NK

main69240-10101-B1iNGX10,50,ZYX11201910

GRAY ME.,2NB

main69240-10101-B2iNGX10,50,ZYX11202208

CEMENT GRAY ME.,1H5

main69240-10101-C0iNGX10,50,ZYX10..G,GT201809-201910

BLACK MC.,209 ,2ND

main69240-10101-C0iNGX10,50,ZYX10..G,GT201809-201910

BLACK MC.,209 ,2ND ,2TA

main69240-10101-C0iNGX10,50,ZYX11201910

BLACK MC.,209 ,2TA

main69240-10101-C1iNGX10,50,ZYX10..G,GT201812-201910

BLACKISH AGEHA GF.,221 ,2TR

main69240-10101-C2iNGX10,50,ZYX11..CVT..(G,GT)202106-202208

SPARKLING BLACK PEARL CS.,220

main69240-10101-C3iNGX10,50,ZYX11..CVT..(G,GT)202208

INAZUMA SPARKING BLACK GF,224

main69240-10101-D0iNGX10,50,ZYX10201809-201910

RED MC.,2NE ,2NF ,3T3

main69240-10101-D1iNGX10,50,ZYX11201910

EMOTIONAL RED 2,2TB ,3U5

main69240-10101-E0iNGX10,50,ZYX10201809-201910

DK. BROWN M.M.,2NC ,4U3

main69240-10101-E1iNGX10,50,ZYX11201910-202012

ORANGE ME.,2TC ,4R8

main69240-10101-F0iNGX10,50,ZYX11201910

YELLOW,2PQ ,5A3

main69240-10101-F0iNGX10,50,ZYX10201809-201910

YELLOW,2JU ,2PQ ,5A3

main69240-10101-G0iNGX10,50,ZYX10201809-201910

RADIANT GREEN ME.,2NJ ,6W9

main69240-10101-G1iNGX10,50,ZYX11201910-202208

OXIDE BRONZE ME.,2TD ,6X1

main69240-10101-J1iNGX10,50,ZYX11201910-202208

NEBULA BLUE ME.,2NH ,8X2

main69240-10101-J1iNGX10,50,ZYX10201809-201910

NEBULA BLUE ME.,2NG ,2NH ,8X2

main69240-10101-J3iNGX10,50,ZYX11..CVT..(G,GT)202008-202106

DK.BLUE MC.,8S6

main69240-10101-J4iNGX10,50,ZYX11202208

DK.BLUE M.M.,8W7

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30060-C2iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

sub69283-30060

main69283-30060-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

sub69283-30060

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30060-C2iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

sub69284-30060

main69284-30060-C2iNGX10,50,ZYX11..G,GT201910

BLACK,TRIM2#,4#,8#

sub69284-30060

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNGX10,50,ZYX10201612-201910

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-47010iNGX10,50,ZYX10201612-201910

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-10010iNGX10,50,ZYX10201612-201812

sub69730-10011

main69730-10011iNGX10,50,ZYX10201901-201910

69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1

main69730-10020iNGX10,50,ZYX10201612-201910

69730FCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2

main69730-10020iNGX10,50,ZYX10201612-201910

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-10010iNGX10,50,ZYX10201612-201812

sub69730-10011

main69730-10011iNGX10,50,ZYX10201901-201910

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-10060iNGX10,50,ZYX10201612-201812

sub69770-10061

main69770-10061iNGX10,50,ZYX10201901-201910

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-10060iNGX10,50,ZYX10201612-201812

sub69770-10061

main69770-10061iNGX10,50,ZYX10201901-201910

9011906897

main90119-06897

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9046906005

main90469-06005

9356755020

main93567-55020

27 parts on this diagram · 1 diagram in section
