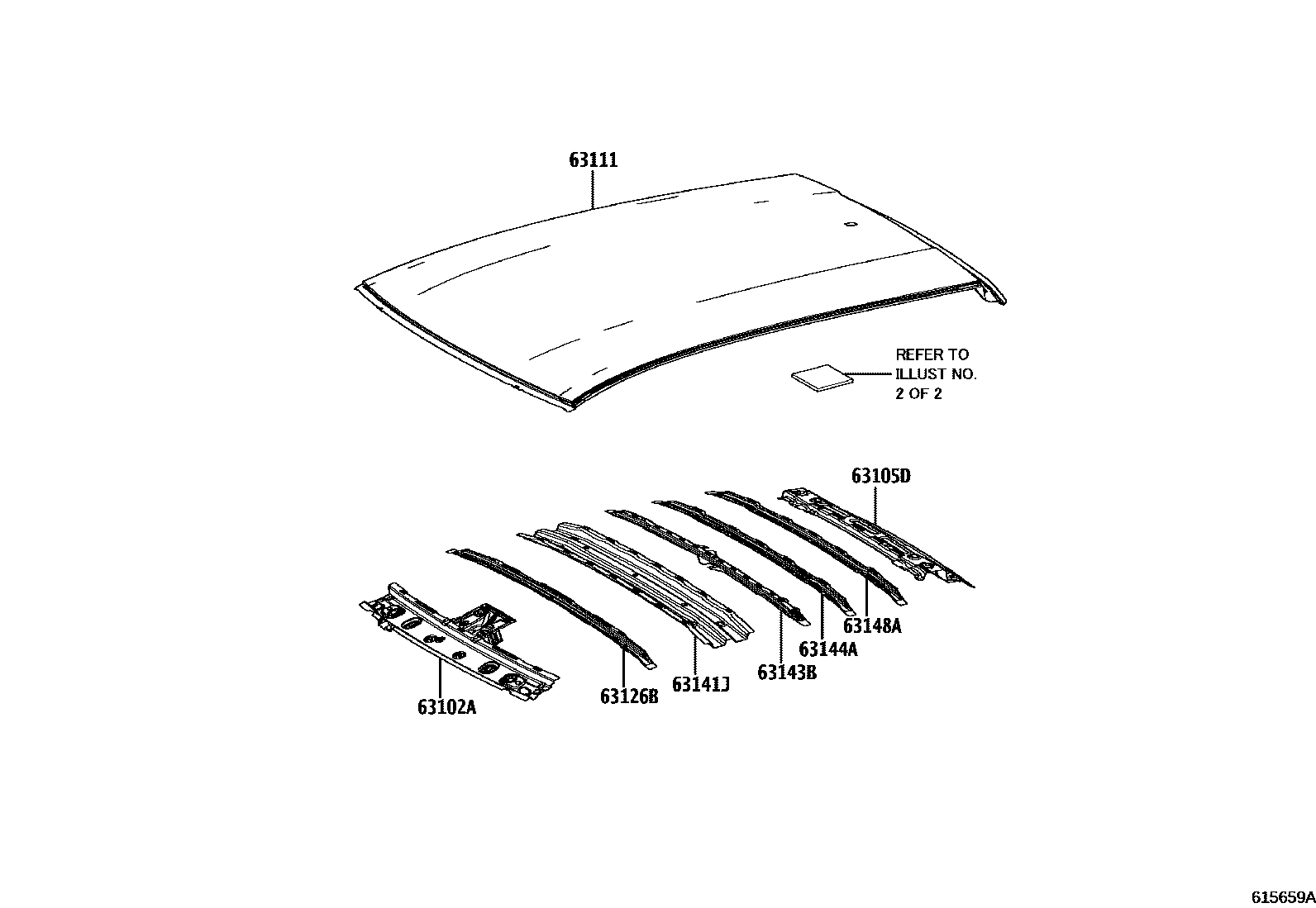

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1���������������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-10060iNGX10,50,ZYX10201612-201901

sub63102-10061

main63102-10061iNGX10,50,ZYX10201902-201906

sub63102-10062

main63102-10062iNGX10,50,ZYX10201907-201910

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-10100iNGX10,50,ZYX10201612-201910

63111PANEL, ROOF

main63111-10230iNGX10,50,ZYX10201612-201905

sub63111-10250

sub86395-10010

main63111-10250iNGX10,50,ZYX10201905-201910

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-10010iNGX10,50,ZYX10201612-201910

63141JREINFORCEMENT, ROOF PANEL

main63141-10080iNGX10,50,ZYX10201612-201910

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-10050iNGX10,50,ZYX10201612-201910

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-10020iNGX10,50,ZYX10201612-201910

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-10030iNGX10,50,ZYX10201612-201910

8 parts on this diagram · 2 diagrams in section
