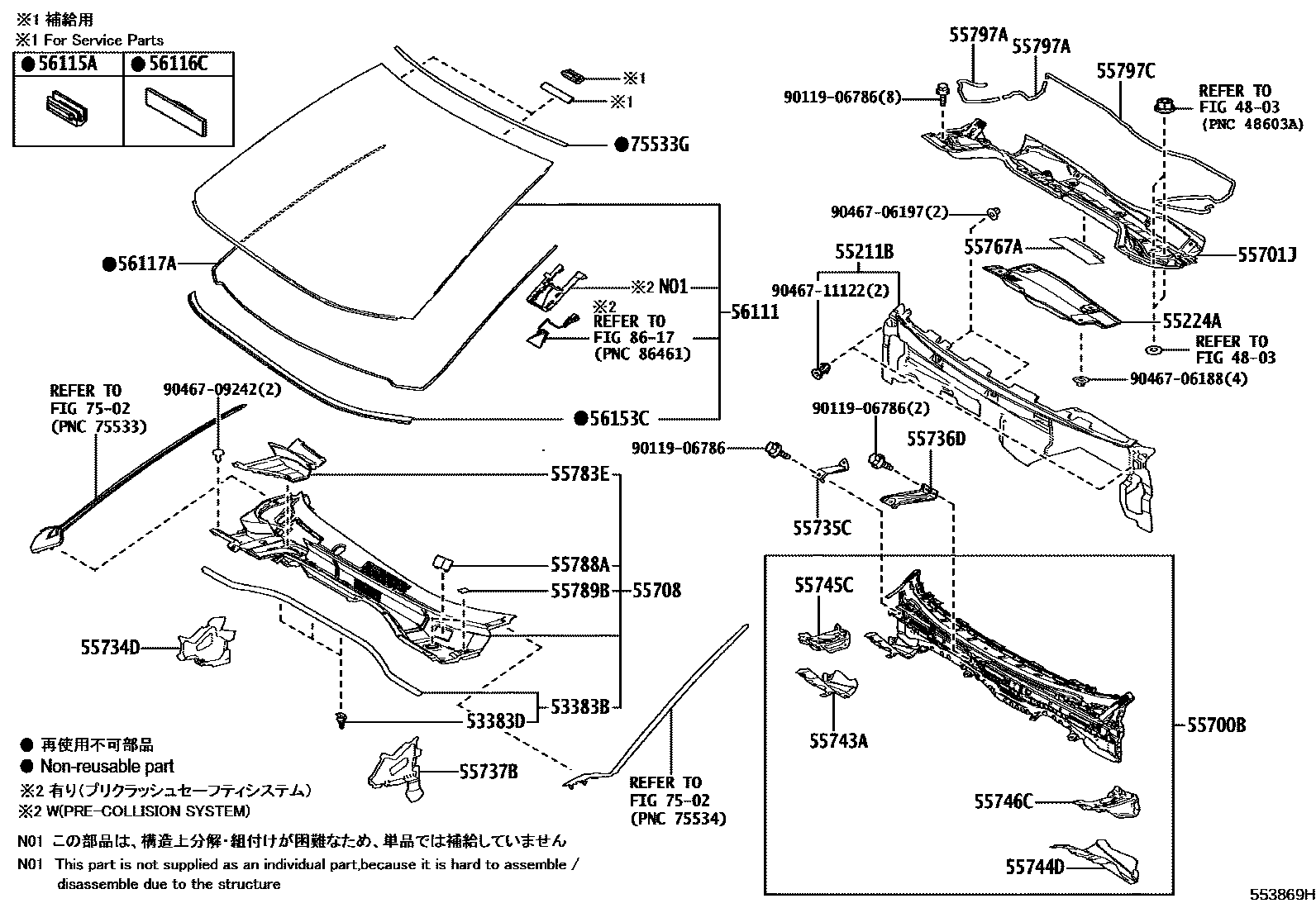

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

4803

53383BSEAL, HOOD TO COWL TOP

main53383-10050iNGX10,50,ZYX10¥780201612-201910

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030iNGX10,50,ZYX10¥100201612-201910

55211BSILENCER, FRONT PANEL

main55211-10460iNGX50,ZYX10¥7,600201612-201806

sub55211-10461¥6,300

main55211-10461iNGX10,50,ZYX10¥6,300201806-201910

main55211-10480iNGX10,50,ZYX11¥3,130201910

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-10010iNGX50..ST¥2,080201612-201910

55700BCOWL ASSY

main55700-10350iNGX10,50,ZYX10¥19,200201612-201910

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-10270iNGX10,50,ZYX10¥10,900201612-201910

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-10090iNGX10,50,ZYX10¥13,500201612-201910

55734DPLATE, WATER GUARD

main55734-10060iNGX10,50,ZYX10¥680201612-201910

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-10050iNGX10,50,ZYX10¥870201612-201910

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-10050iNGX10,50,ZYX10¥1,600201612-201910

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-10010iNGX10,50,ZYX10¥800201612-201910

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-10010iNGX10,50,ZYX10¥1,310201612-201910

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-10010iNGX10,50,ZYX10¥1,350201612-201910

55745CREINFORCEMENT, COWL TOP, INNER RH

main55745-10080iNGX10,50,ZYX10¥1,470201612-201910

55746CREINFORCEMENT, COWL TOP, INNER LH

main55746-10060iNGX10,50,ZYX10¥1,470201612-201910

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-10050iNGX50..ST¥1,300201612-201910

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-10040iNGX10,50,ZYX10¥2,960201612-201910

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-10050iNGX10,50,ZYX10¥330201612-201910

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-10030iNGX10,50,ZYX10¥160201612-201910

55797ASEAL, COWL WATER EXTRACT

main55797-10010iNGX10,50,ZYX10¥670201612-201910

55797CSEAL, COWL WATER EXTRACT, NO.2

main55797-10020iNGX10,50,ZYX10¥1,190201612-201910

56111GLASS, WINDSHIELD

main56101-10902iNGX50,ZYX10..G,GT¥146,000201612-201803

sub56101-10918¥140,000

sub56153-10020¥5,300

main56101-10904iNGX50,ZYX10..S,ST¥109,000201612-201803

sub56101-10915¥103,000

sub56153-10020¥5,300

main56101-10915iNGX50,ZYX10..S,ST¥103,000201803-201805

main56101-10918iNGX10,50,ZYX10..G,GT¥140,000201803-201910

main56101-10920iNGX10,50,ZYX10..S,ST¥136,000201805-201910

main56101-10932iNGX10,50,ZYX11..S,ST¥155,000201910-202008

main56101-10934iNGX10,50,ZYX11..G,GT¥160,000201910-202008

main56101-10936iNGX10,50,ZYX11..S,ST¥122,000202008

main56101-10941iNGX10,50,ZYX11..G,GT¥126,000202008

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNGX10,50,ZYX10¥130201612-201910

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNGX10,50,ZYX10¥120201612-201910

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iNGX10,50,ZYX10¥1,480201612-201910

main56117-64010iNGX10,50,ZYX10¥1,480201612-201910

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-10020iNGX10,50,ZYX10¥5,300201612-201910

7502

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-10130iNGX10,50,ZYX10¥1,110201612-201910

8617

9011906786

main90119-06786¥90

9046706188

main90467-06188¥160

9046706197

main90467-06197¥120

9046709242

main90467-09242¥120

9046711122

main90467-11122¥100

35 parts on this diagram · 3 diagrams in section
