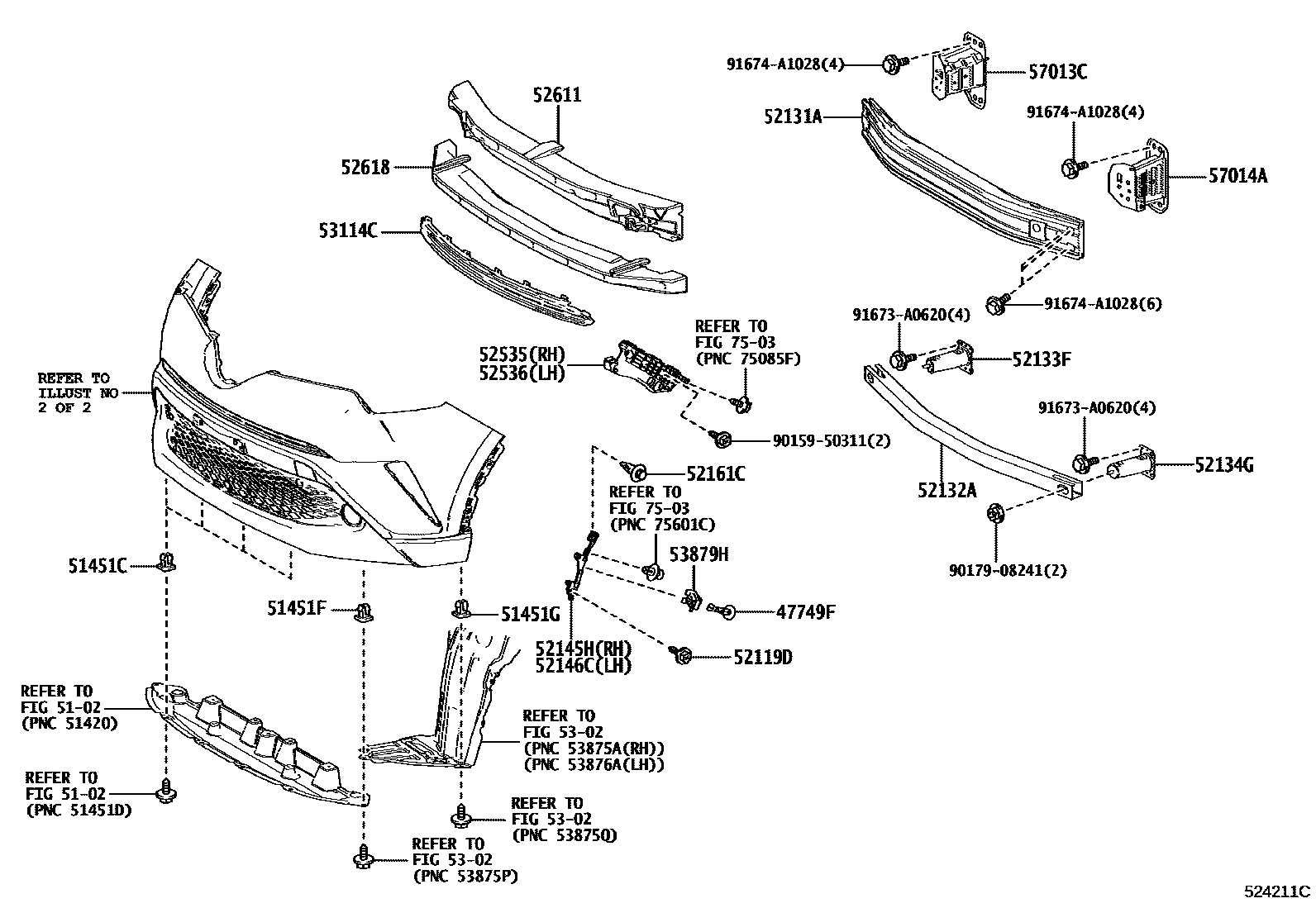

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102
51451CGROMMET(FOR ENGINE UNDER COVER)
51451FGROMMET, NO.1
51451GGROMMET, NO.2
52119DSCREW, NO.1
52131AREINFORCEMENT, FRONT BUMPER
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52133FBRACKET, FRONT BUMPER, RH
52134GBRACKET, FRONT BUMPER, LH
52145HSTAY, FRONT BUMPER SIDE, RH
52146CSTAY, FRONT BUMPER SIDE, LH
52161CPIECE, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5302
53114CGRILLE, RADIATOR, INNER
53879HRETAINER, FRONT FENDER LINER
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
7503
9015950311
main90159-50311
9017908241
main90179-08241
91673A0620
main91673-A0620
91674A1028
main91674-A1028
27 parts on this diagram · 6 diagrams in section
