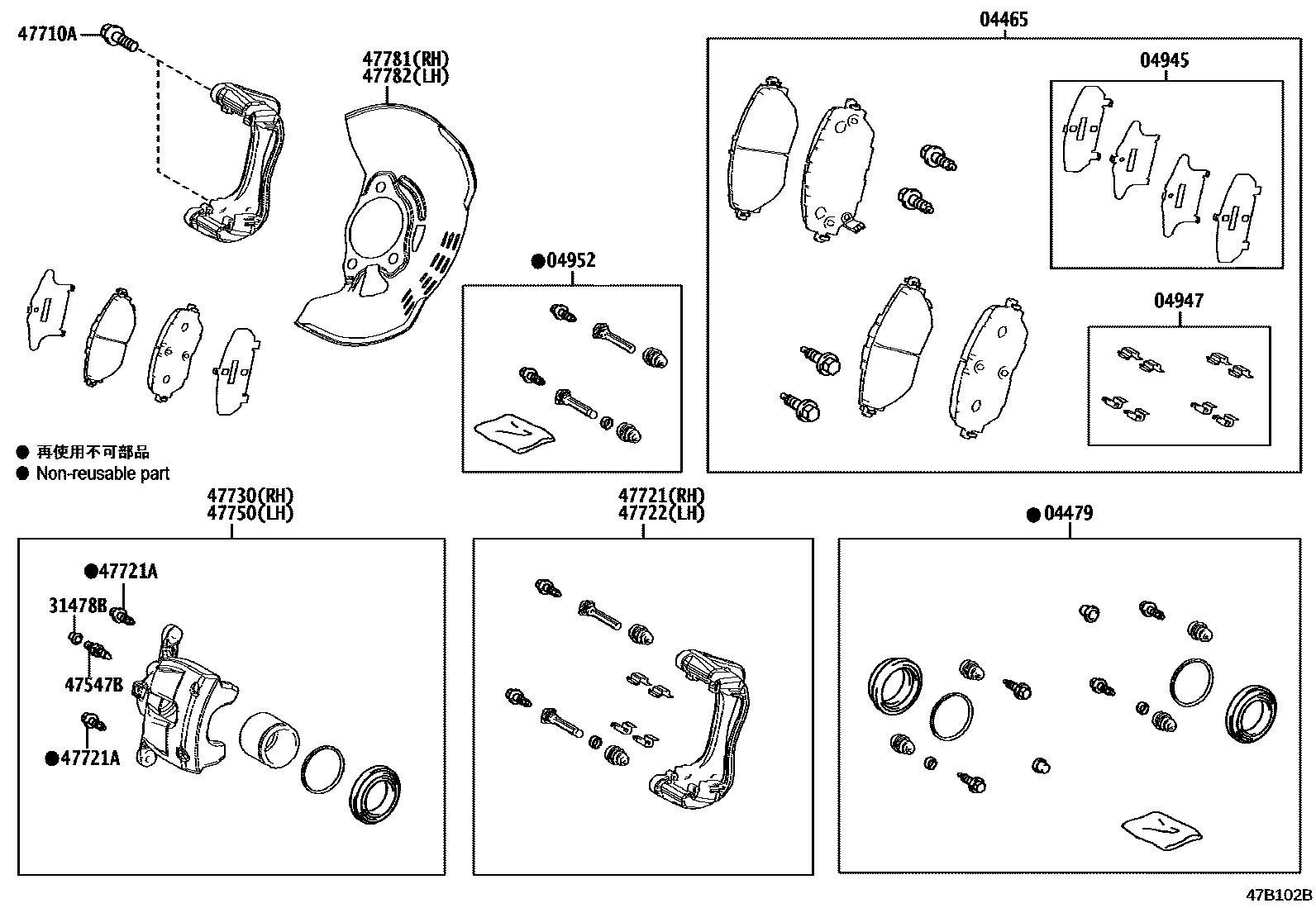

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iNGX10,50,ZYX11¥9,400201910

main04465-F4020iNGX10,50,ZYX10¥12,500201612-201910

sub04465-F4021¥12,500

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iNGX10,50,ZYX11¥2,200201910

main04478-F4010iNGX10,50,ZYX10¥2,200201612-201910

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-76010iNGX10,50,ZYX11¥1,850201910

main04945-F4010iNGX10,50,ZYX10¥820201612-201910

sub04945-F4020¥680

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iNGX10,50,ZYX10¥2,080201612-201910

main04947-33281iNGX10,50,ZYX11¥2,080201910

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02221iNGX10,50,ZYX10¥2,030201612-201910

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNGX10,50,ZYX11¥160201910

main90069-39026iNGX10,50,ZYX10¥100201612-201910

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNGX10,50,ZYX11¥200201910

main90069-39025iNGX10,50,ZYX10¥190201612-201910

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNGX10,50,ZYX11¥160201612-201910

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-76010iNGX10,50,ZYX11¥6,400201910

main47721-F9010iNGX10,50,ZYX10¥6,400201612-201910

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iNGX10,50,ZYX10¥750201612-201910

sub47715-28060¥620

main90105-08164iNGX10,50,ZYX11¥90201910

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-76010iNGX10,50,ZYX11¥6,400201910

main47722-F9010iNGX10,50,ZYX10¥6,400201612-201910

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-76010iNGX10,50,ZYX11¥29,700201910

main47730-F4020iNGX10,50,ZYX10¥32,800201612-201910

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-76010iNGX10,50,ZYX11¥29,700201910

main47750-F4020iNGX10,50,ZYX10¥32,800201612-201910

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080iNGX10,50,ZYX10¥1,050201612-201910

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080iNGX10,50,ZYX10¥1,050201612-201910

15 parts on this diagram · 2 diagrams in section
