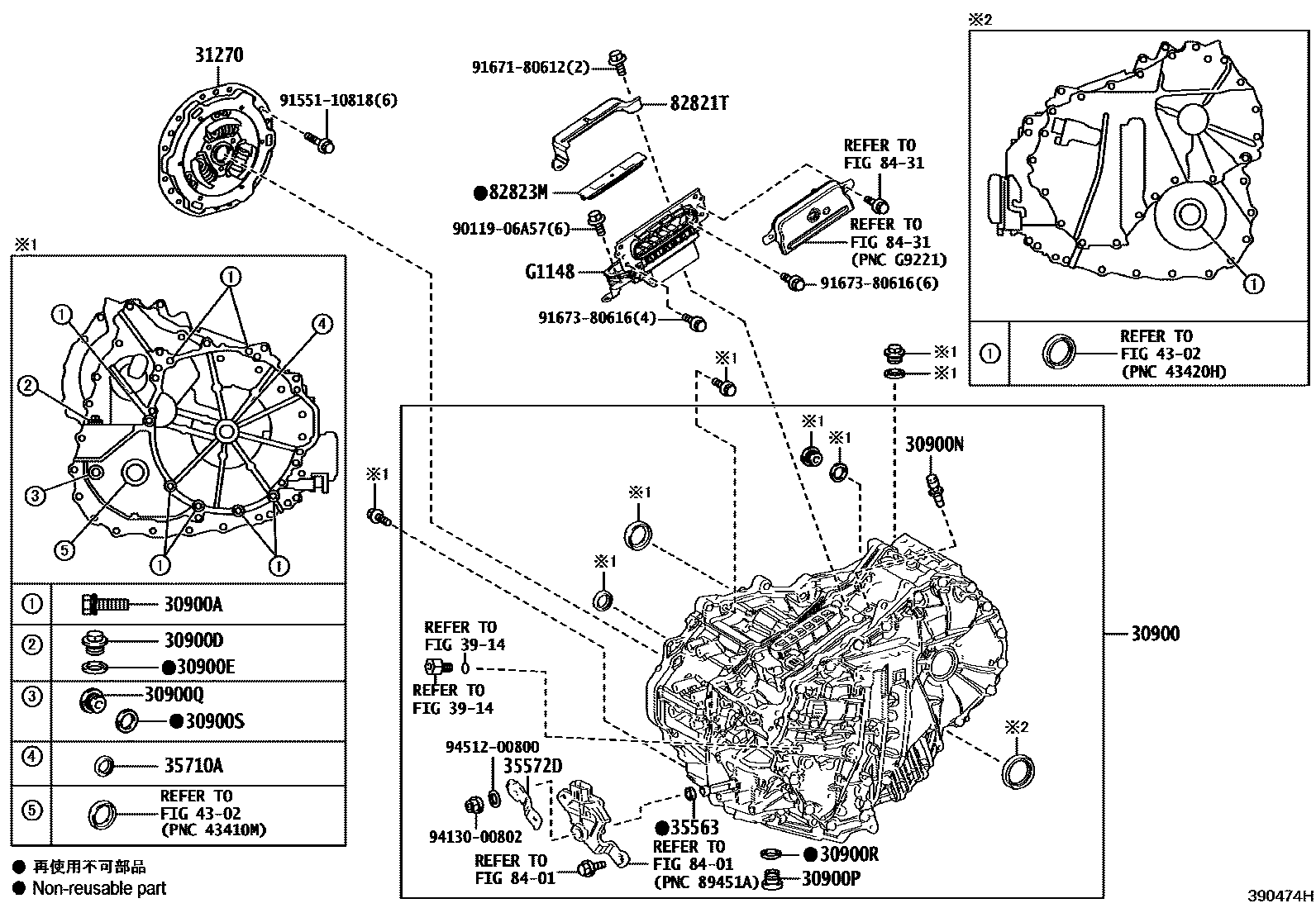

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47110iZYX10201612-201910

sub30900-47150

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045iZYX10201612-201910

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZYX10201612-201910

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZYX10201612-201910

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZYX10201612-201910

30900PPLUG, DRAIN(HEV)

main90341-18016iZYX10201612-201910

30900QPLUG, FILLER(HEV)

main90341-18016iZYX10201612-201910

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZYX10201612-201910

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZYX10201612-201910

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-47070iZYX10201612-201910

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZYX10201612-201910

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZYX10201612-201910

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZYX10201612-201910

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iZYX10201612-201910

82823MCAP, TERMINAL

main82823-47040iZYX10201612-201910

8401

8431

G1148CABLE, MOTOR

mainG114847070iZYX10201612-201910

9011906A57

main90119-06A57

9155110818

main91551-10818

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

26 parts on this diagram · 1 diagram in section
