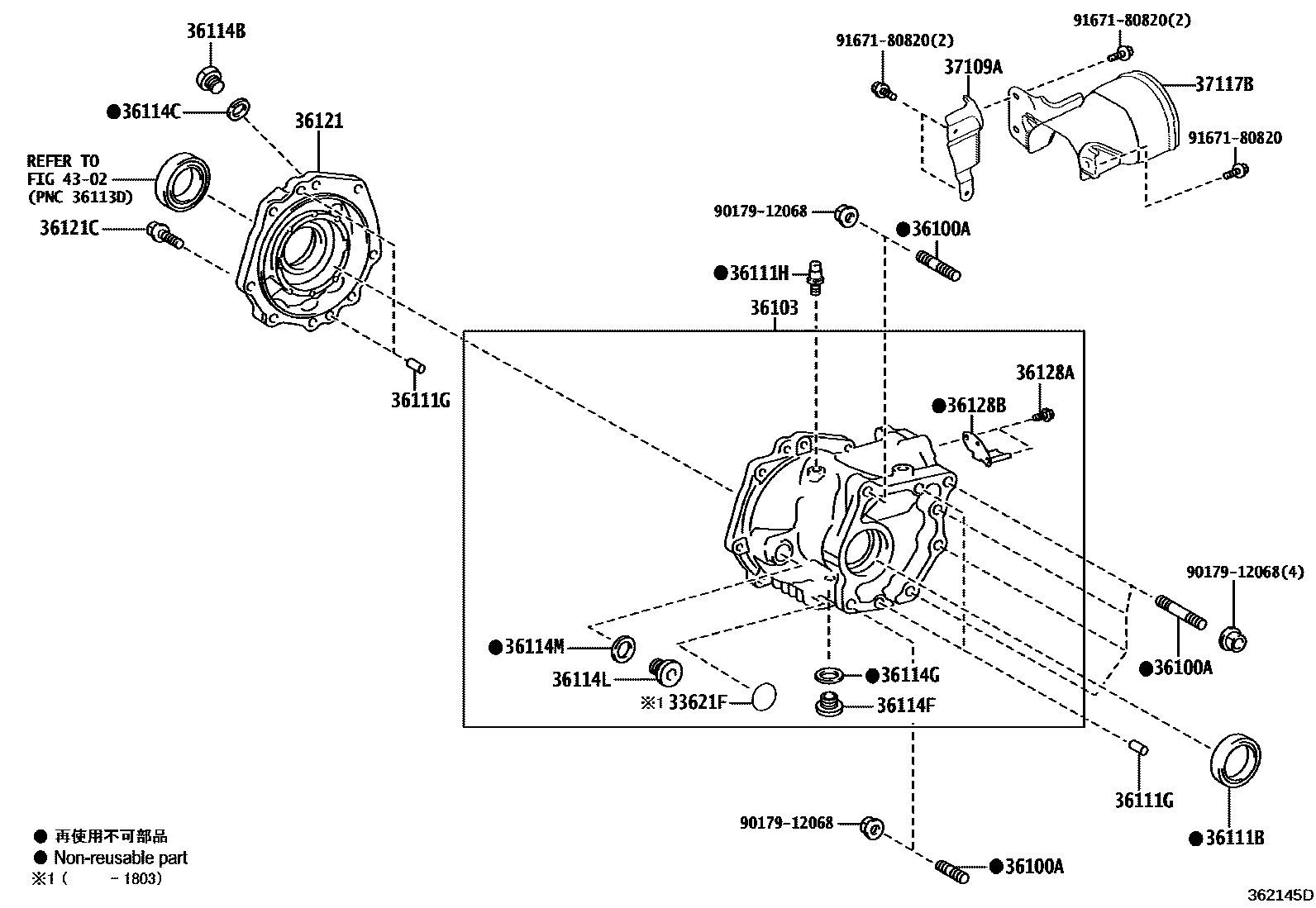

TRANSFER CASE & EXTENSION HOUSING
33621FLABEL, TRANSAXLE OIL INFORMATION
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
36103CASE SUB-ASSY, TRANSFER
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR
37117BINSULATOR, PROPELLER SHAFT HEAT
4302
9017912068
main90179-12068
9167180820
main91671-80820
21 parts on this diagram · 1 diagram in section
