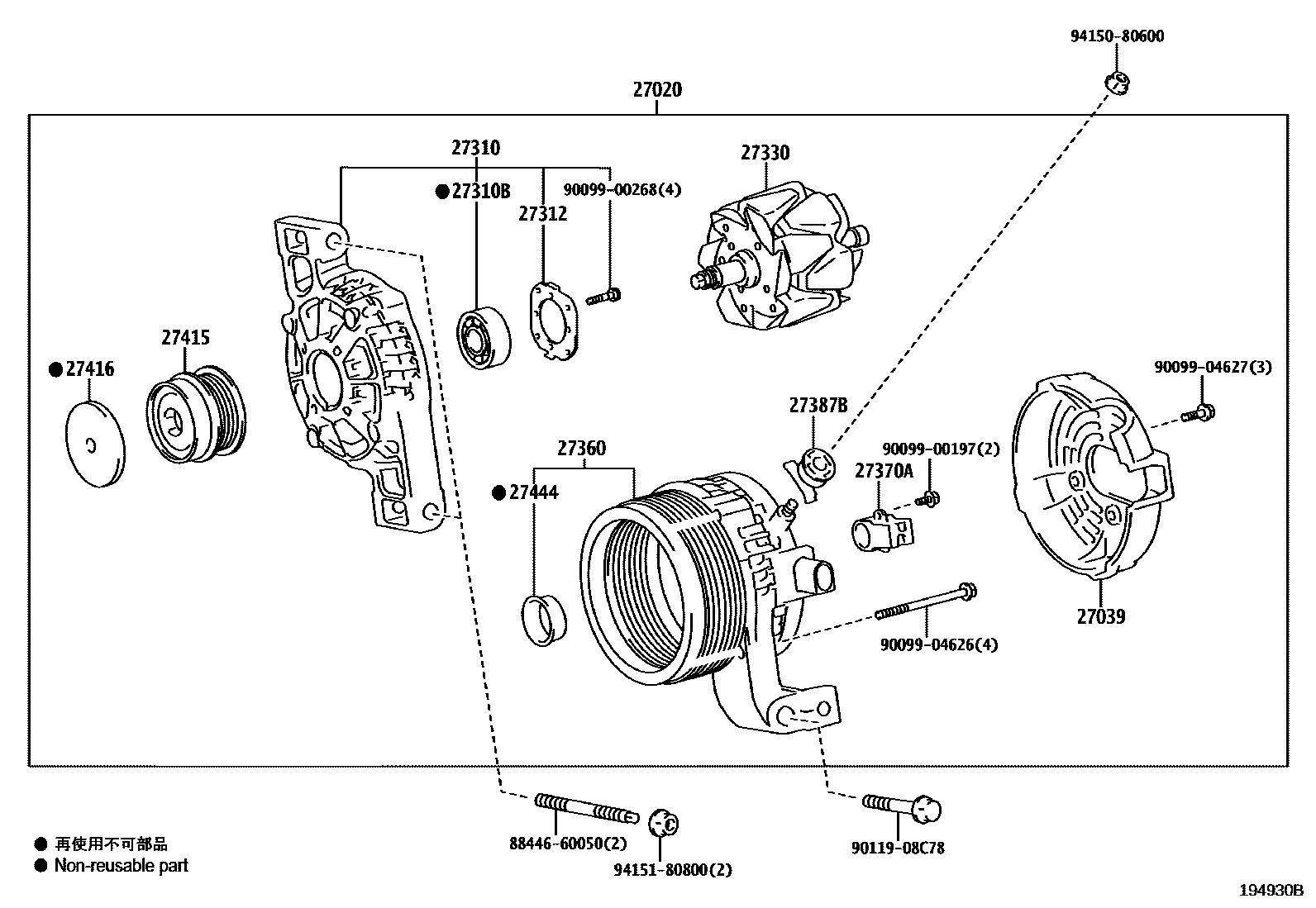

ALTERNATOR

27020ALTERNATOR ASSY

main27060-47191i8NRFTS..NGX10,50201612-201910

27039COVER, ALTERNATOR REAR END

main27039-37220i8NRFTS..NGX10,50201612-201910

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-47431i8NRFTS..NGX10,50201612-201910

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i8NRFTS..NGX10,50201612-201910

27312PLATE, RETAINER

main27312-72100i8NRFTS..NGX10,50201612-201910

27330ROTOR ASSY, ALTERNATOR

main27330-47330i8NRFTS..NGX10,50201612-201910

27360COIL ASSY, ALTERNATOR

main27360-47431i8NRFTS..NGX10,50201612-201910

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i8NRFTS..NGX10,50201612-201910

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i8NRFTS..NGX10,50201612-201910

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-47050i8NRFTS..NGX10,50201612-201910

27416CAP, ALTERNATOR PULLEY

main27416-47020i8NRFTS..NGX10,50201612-201910

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i8NRFTS..NGX10,50201612-201910

8844660050BOLT, IDLE PULLEY

main88446-60050

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

9415080600

main94150-80600

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
