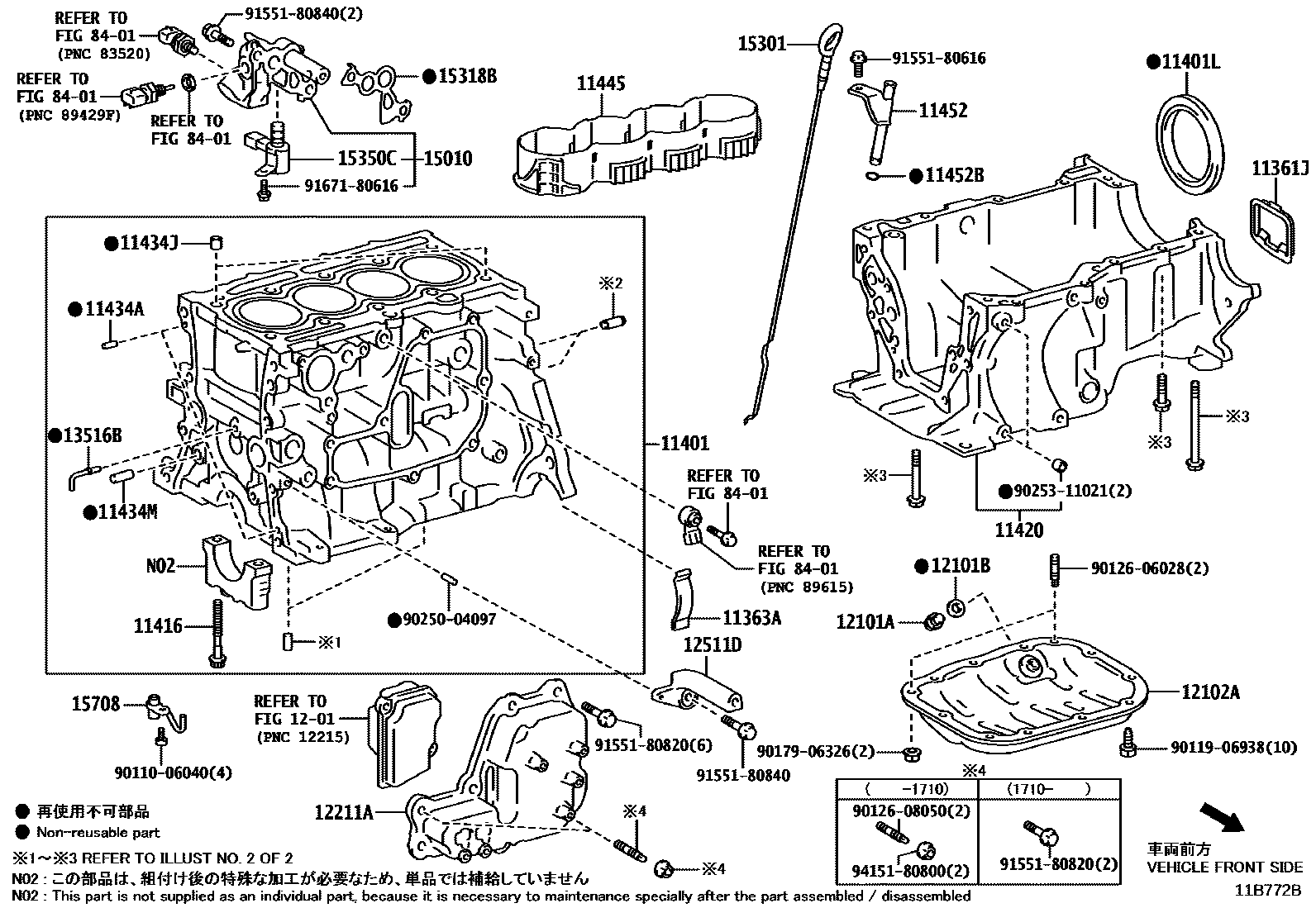

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i8NRFTS..NGX10,50¥490201612-202111

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-33010i8NRFTS..NGX10,50¥200201612-201910

11401BLOCK SUB-ASSY, CYLINDER

main11410-39226i2ZRFXE..ZYX10¥142,000201612-202110

sub11410-39295¥142,000

sub16278-37021¥2,300

sub16281-37071¥600

sub16281-37190¥880

sub16295-37021¥390

sub25601-37050¥14,900

sub25601-37060

main11410-39295i2ZRFXE..ZYX11¥142,000202110-202303

sub11410-39296¥129,000

main11410-39296i2ZRFXE..ZYX11¥129,000202303

main11410-49065i8NRFTS..NGX10,50¥108,000201612-201910

11401LSEAL, ENGINE REAR OIL

main90311-78002i8NRFTS..NGX10,50¥2,020201612-202106

main90311-78008i2ZRFXE..ZYX10¥1,510201612-201910

main90311-78010i8NRFTS..NGX10,50¥2,020202107

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02163i2ZRFXE..ZYX10¥190201612-201910

11420CRANKCASE ASSY, STIFFENING

main11420-37030i2ZRFXE..ZYX11¥30,800201612-202111

sub11420-37040¥28,000

main11420-37040i2ZRFXE..ZYX11¥28,000202111

main11420-47010i8NRFTS..NGX10,50¥30,800201612-201910

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i8NRFTS..NGX10,50¥50201612-201910

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001i2ZRFXE..ZYX11¥90201612-201910

main90253-14003i8NRFTS..NGX10,50¥140201612-201910

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i8NRFTS..NGX10,50¥160201612-201910

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-37010i2ZRFXE..ZYX10¥1,830201612-201910

main11445-47040i8NRFTS..NGX10,50¥1,870201612-201910

11452GUIDE, OIL LEVEL GAGE

main11452-37040i2ZRFXE..ZYX11¥2,080201612-201910

main11452-47030i8NRFTS..NGX10,50¥740201612-201910

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i2ZRFXE..ZYX10¥190201612-202211

main96723-19010i8NRFTS..NGX10,50¥140202212

1201

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i8NRFTS..NGX10,50¥160201612-201910

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ZRFXE..ZYX10¥90201612-201910

12102APAN SUB-ASSY, OIL, NO.2

main12102-37010i2ZRFXE..ZYX10¥3,780201612-201910

main12102-47030i8NRFTS..NGX10,50¥4,160201612-201910

12211ACASE, VENTILATION, NO.1

main12211-47010i8NRFTS..NGX10,50¥7,400201612-201910

12511DBRACKET, ALTERNATOR

main12511-47010i8NRFTS..NGX10,50¥1,620201612-201910

13516BJET, OIL

main13516-40010i8NRFTS..NGX10,50¥360201612-201910

15010HOUSING ASSY, OIL PUMP RELIEF VALVE

main15010-47010i8NRFTS..NGX10,50¥15,900201612-201910

15301GAGE SUB-ASSY, OIL LEVEL

main15301-37010i2ZRFXE..ZYX10¥750201612-201910

main15301-47070i8NRFTS..NGX10,50¥830201612-201910

15318BGASKET, OIL REGULATOR BODY

main15318-47010i8NRFTS..NGX10,50¥300201612-201910

15350CVALVE ASSY, OIL PRESSURE SWITCHING

main15350-47010i8NRFTS..NGX10,50¥6,400201612-201910

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-37012i2ZRFXE..ZYX10¥770201612-201910

main15708-47070i8NRFTS..NGX10,50¥850201612-201910

8401

9011006040

main90110-06040¥60

9011906938

main90119-06938¥60

9012606028

main90126-06028¥60

9012608050

main90126-08050¥80

9017906326

main90179-06326¥60

9025004097

main90250-04097¥50

9025311021

main90253-11021¥120

9155180616

main91551-80616¥60

9155180820

main91551-80820¥80

9155180840

main91551-80840¥120

9167180616

main91671-80616¥60

9415180800

main94151-80800¥80

37 parts on this diagram · 4 diagrams in section
