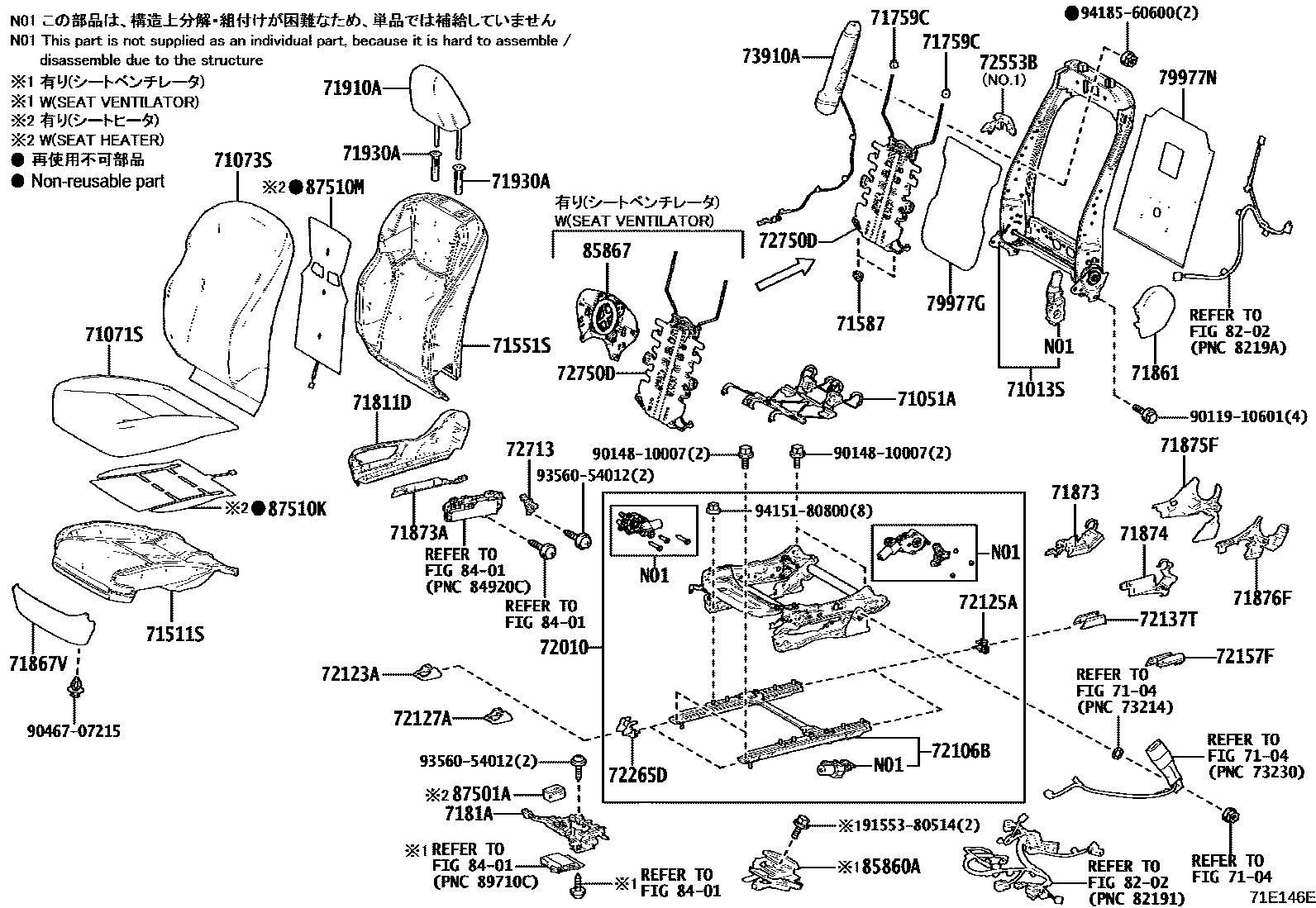

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK/RICH CREAM,TRIM0#
BLACK/BLACK,TRIM2#
DK.ROSE/BLACK,TRIM3#
HAZEL/HAZEL,TRIM4#
BLACK/BLACK,TRIM2#
DK.ROSE/BLACK,TRIM3#
HAZEL/BLACK,TRIM4#
FROMAGE,TRIM0#
BLACK/RICH CREAM,TRIM0#
BLACK/BLACK,TRIM2#
DK.ROSE/BLACK,TRIM3#
HAZEL/BLACK,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK/RICH CREAM,TRIM0#
BLACK/BLACK,TRIM2#
DK.ROSE/BLACK,TRIM3#
HAZEL/BLACK,TRIM4#
BLACK/BLACK,TRIM2#
DK.ROSE/BLACK,TRIM3#
HAZEL/BLACK,TRIM4#
BLACK/RICH CREAM,TRIM0#
FROMAGE,TRIM0#
BLACK/BLACK,TRIM2#
DK.ROSE/BLACK,TRIM3#
HAZEL/BLACK,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759CHOOK, FRONT SEATBACK, NO.1
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71867VSHIELD, FRONT SEAT CUSHION, FRONT RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873ASHIELD, FRONT SEAT CUSHION, LOWER
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
71910AHEADREST ASSY, FRONT SEAT
WHITE,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
HAZEL,TRIM4#
BLACK,TRIM0#,2#
DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
HAZEL,TRIM4#
FROMAGE,TRIM0#
BLACK/LT.GRAY,TRIM2#
BLACK/ORANGE,TRIM0#
DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
HAZEL,TRIM4#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72106BRAIL SUB-ASSY, SEAT TRACK, UPPER RH
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
72125ACOVER, SEAT TRACK, UPPER REAR
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
72265DCOVER, SEAT TRACK UPPER RAIL
72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
79977GFELT, FRONT SEATBACK, RH
79977NFELT, SEATBACK
8202
8401
85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
9011910601
main90119-10601
9014810007
main90148-10007
9046707215
main90467-07215
9155380514
main91553-80514
9356054012
main93560-54012
9415180800
main94151-80800
9418560600
main94185-60600
48 parts on this diagram · 4 diagrams in section
