ENGINE OIL COOLER

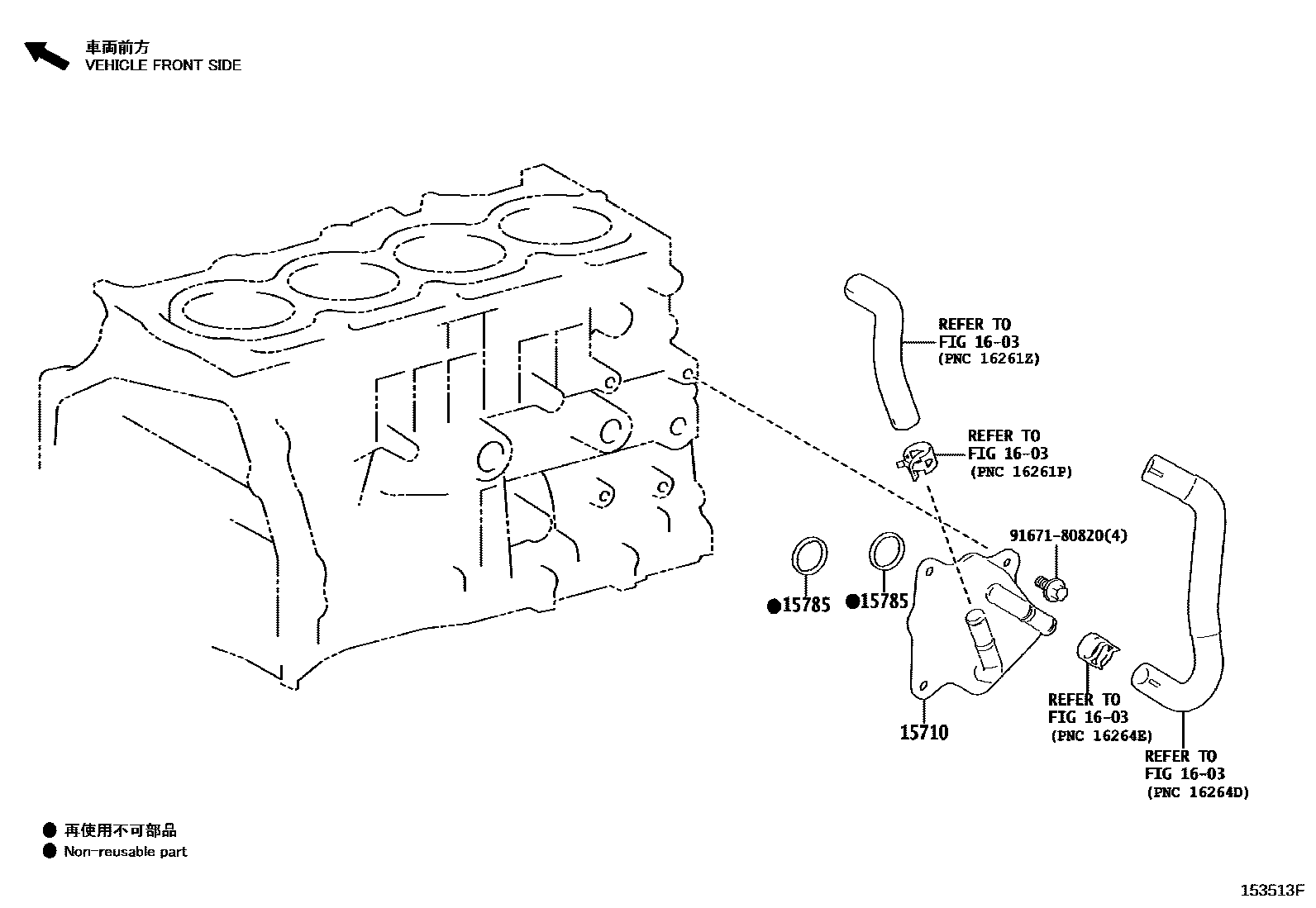

Parts diagram

15710COOLER ASSY, OIL

main15710-25010i202111-202506

main15710-25040i202111-202403

15785GASKET, OIL COOLER

main15785-25010i202111-202506

main15785-25020i202111-202403

1603

9167180820

main91671-80820

4 parts on this diagram · 2 diagrams in section
