STANDARD TOOL

0001 1 0002 1

09105BOX SET, JACK

main09105-78010iAAZA2#202111-202506

main09105-78020iAAZH26202111-202403

09110JACK ASSY

main09110-0W080iAAZA2#,AAZH2#,TAZA25202208-202506

main09111-0W150iAAZA2#,AAZH2#,TAZA25202111-202208

sub09111-0W151

09113HANDLE, JACK

main09113-42030iAAZA2#202111-202506

09120BAG, TOOL

main09120-48010iAAZH2#,TAZA25202111-202506

main09120-48010iAAZH2#,TAZA25202111-202506

09130PLIERS

main09130-50040iAAZH2#,TAZA25202111-202506

main09130-50040iAAZA2#202111-202506

09135DRIVER, SCREW

main99915-10700iAAZA2#202111-202507

09141SPANNER

main09141-60010iAAZA2#202111-202506

main09141-60010iAAZH2#,TAZA25202111-202506

main09141-60020iAAZA2#,AAZH2#,TAZA25202111-202506

main09141-60020iAAZA2#202111-202506

09151WRENCH, HUB BOLT BOX

main09151-78010iAAZA2#202111-202506

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iAAZH2#,TAZA25202111-202506

0915BPIN, WHEEL GUIDE

main0915B-53010iAAZA2#,AAZH2#,TAZA25202111-202506

51960HOOK ASSY, FRONT

main51961-42060iAAZA2#202111-202506

6404

67217DSTOPPER, REAR DOOR GLASS

main67217-78010iAAZH20,25202403

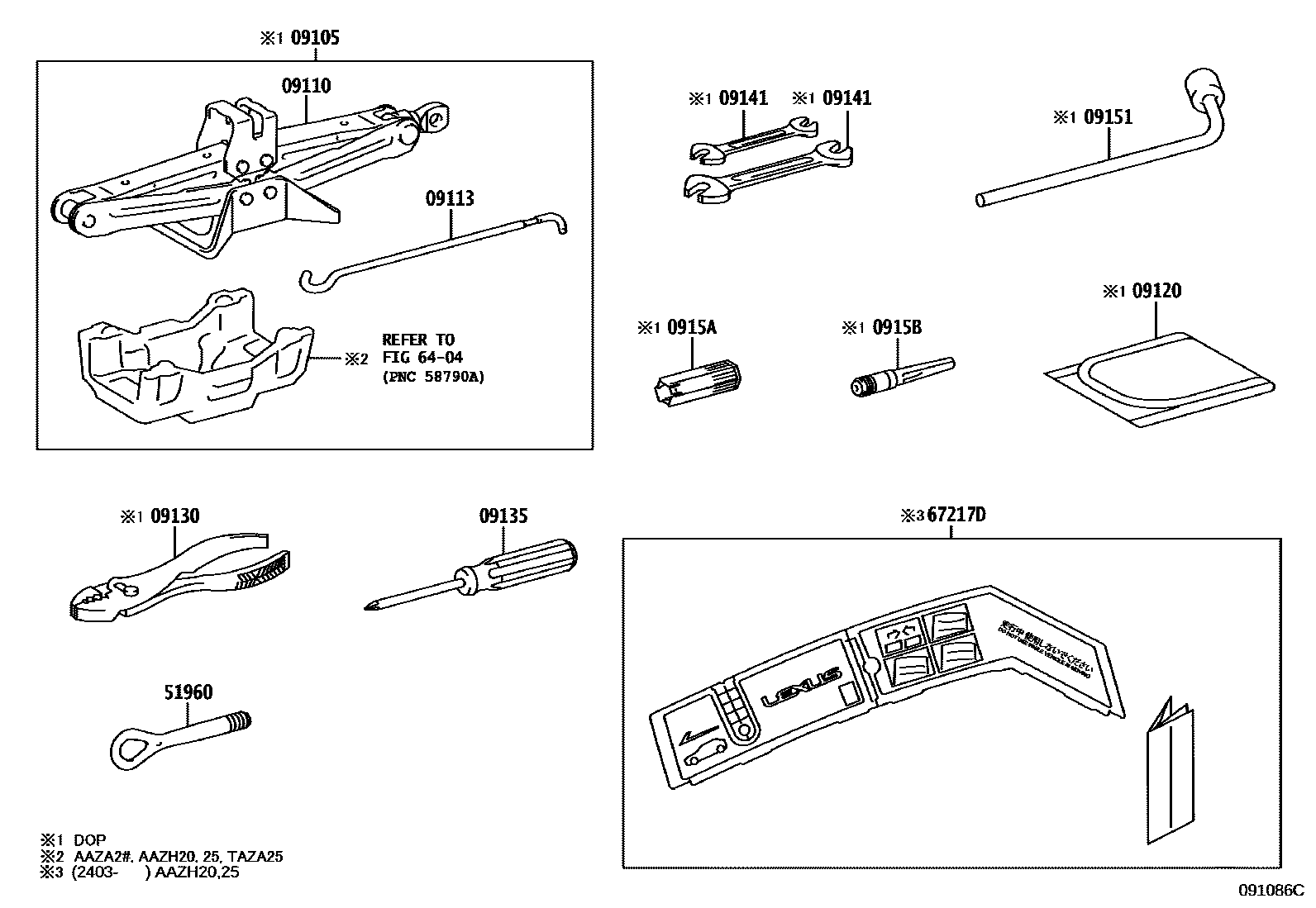

13 parts on this diagram · 2 diagrams in section
