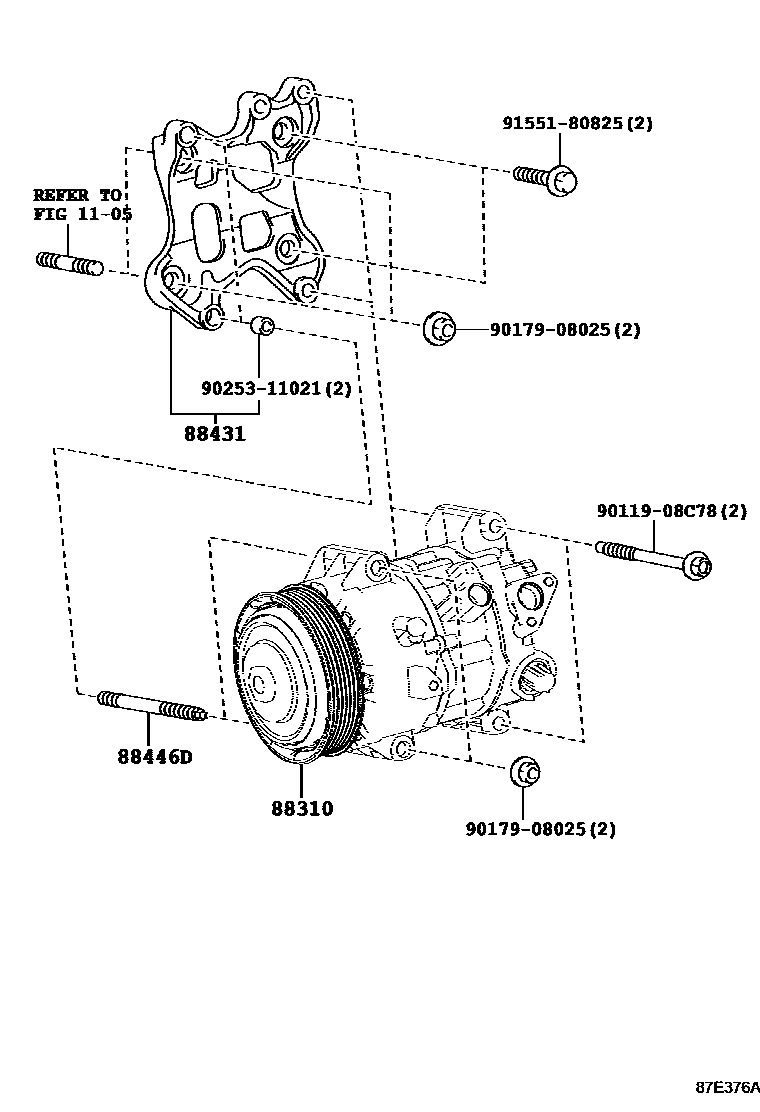

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1105

88310COMPRESSOR ASSY, W/PULLEY

main88310-78010iAGZ1#201407-201604

sub88310-78011

main88310-78011iAGZ1#201605-201709

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iAGZ1#201407-201709

main88431-33050iAYZ1#201407-201709

88446DBOLT, COOLER

main88446-42030iAGZ1#201407-202107

main88446-60050iAGZ1#202107

9011908C78

main90119-08C78

9017908025

main90179-08025

9025311021

main90253-11021

9155180825

main91551-80825

8 parts on this diagram · 2 diagrams in section
