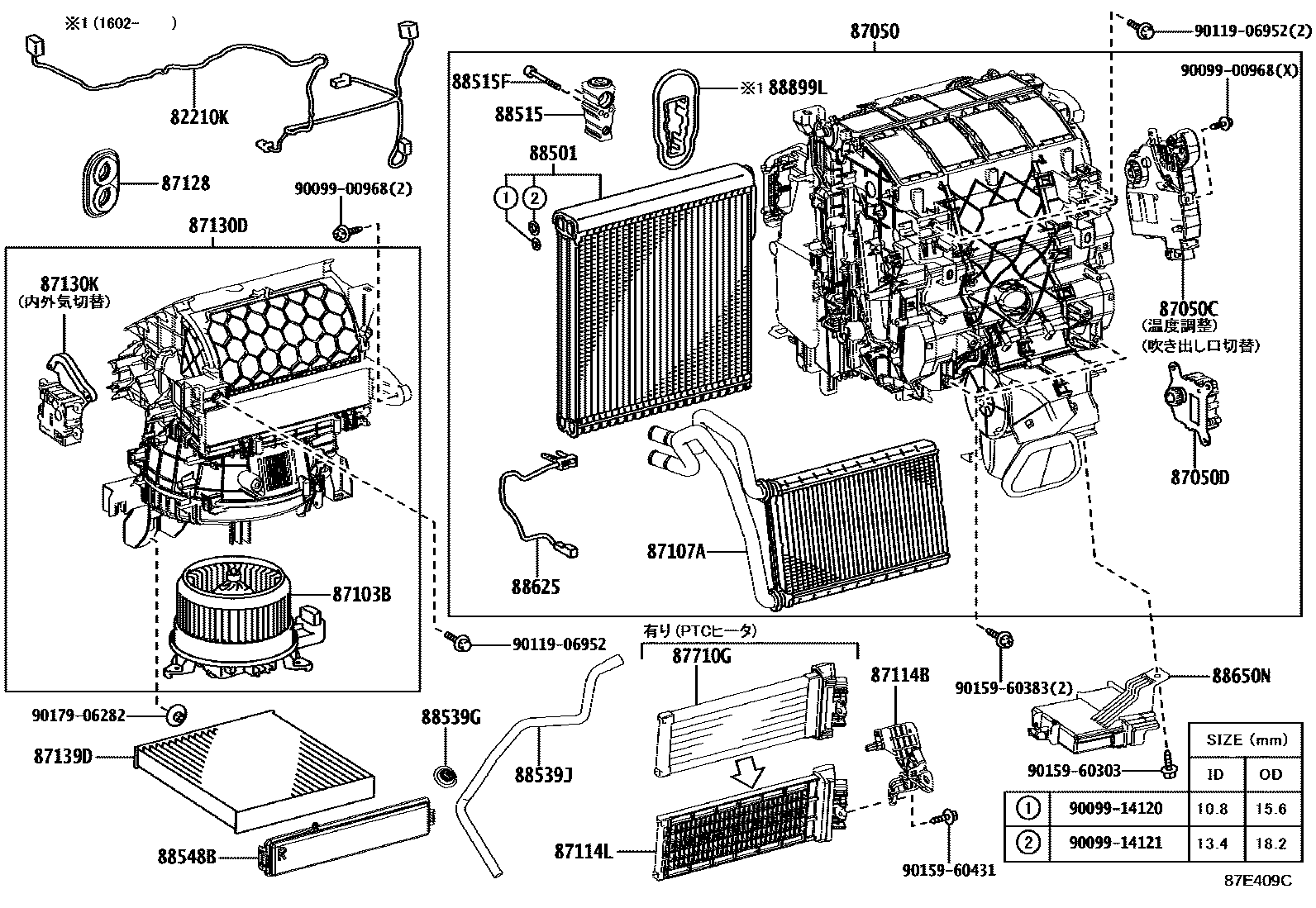

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-48030iAGZ1#,AYZ1#201407-201709

main82212-78020iAGZ1#,AYZ1#201709

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48390iAYZ1#201407-201501

sub87050-48391

main87050-78060iAGZ1#201407-201409

sub87050-78061

main87050-78061iAGZ1#201410-201709

main87050-78062iAGZ1#201709-202109

main87050-78120iAYZ1#201501-202109

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iAGZ1#,AYZ1#201407-201709

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48180iAGZ1#,AYZ1#201407-201709

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-48160iAGZ1#,AYZ1#201407-201709

main87103-78020iAGZ1#,AYZ1#201709

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48110iAGZ1#,AYZ1#201407-201709

87114BCOVER, HEATER

main87114-48120iAGZ1#,AYZ1#201407-201709

87114LCOVER, HEATER, NO.2

main87114-48110iAGZ1#201407-201709

87128GROMMET, HEATER

main87128-76010iAGZ1#,AYZ1#201407-201709

87130DBLOWER ASSY

main87130-48310iAGZ1#,AYZ1#201407-201709

main87130-78020iAGZ1#,AYZ1#201709

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-48190iAGZ1#,AYZ1#201407-201709

87139DELEMENT, AIR REFINER

main87139-50100iAGZ1#,AYZ1#201407-202109

87710GQUICK HEATER ASSY

main87710-48020iAYZ1#201407-201709

main87710-48020iAYZ1#201709-201905

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48340iAYZ1#201407-202109

main88501-78030iAGZ1#201407-201709

sub88501-78060

main88501-78060iAGZ1#201709-202109

88515VALVE, COOLER EXPANSION

main88515-48100iAGZ1#201407-201409

sub88515-48120

main88515-48110iAYZ1#201407-201709

main88515-48120iAGZ1#201410-201709

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iAGZ1#,AYZ1#201407-201709

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iAGZ1#,AYZ1#201407-201709

88539JHOSE, DRAIN COOLER

main88539-78020iAGZ1#,AYZ1#201407-201709

88548BCASE, AIR FILTER

main88548-42010iAGZ1#,AYZ1#201407-201709

88625THERMISTOR, COOLER, NO.1

main88620-28050iAYZ1#201407-201709

main88620-28060iAGZ1#201407-201709

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-78010iAGZ1#201407-201509

sub88650-78130

main88650-78020iAYZ1#201407-201509

sub88650-78140

main88650-78130iAGZ1#201509-201709

main88650-78140iAYZ1#201509-201709

main88650-78200iAGZ1#201709

main88650-78240iAYZ1#201709

88899LPARTS, COOLING UNIT

main88899-78020iAGZ1#,AYZ1#201602-201709

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

30 parts on this diagram · 1 diagram in section
