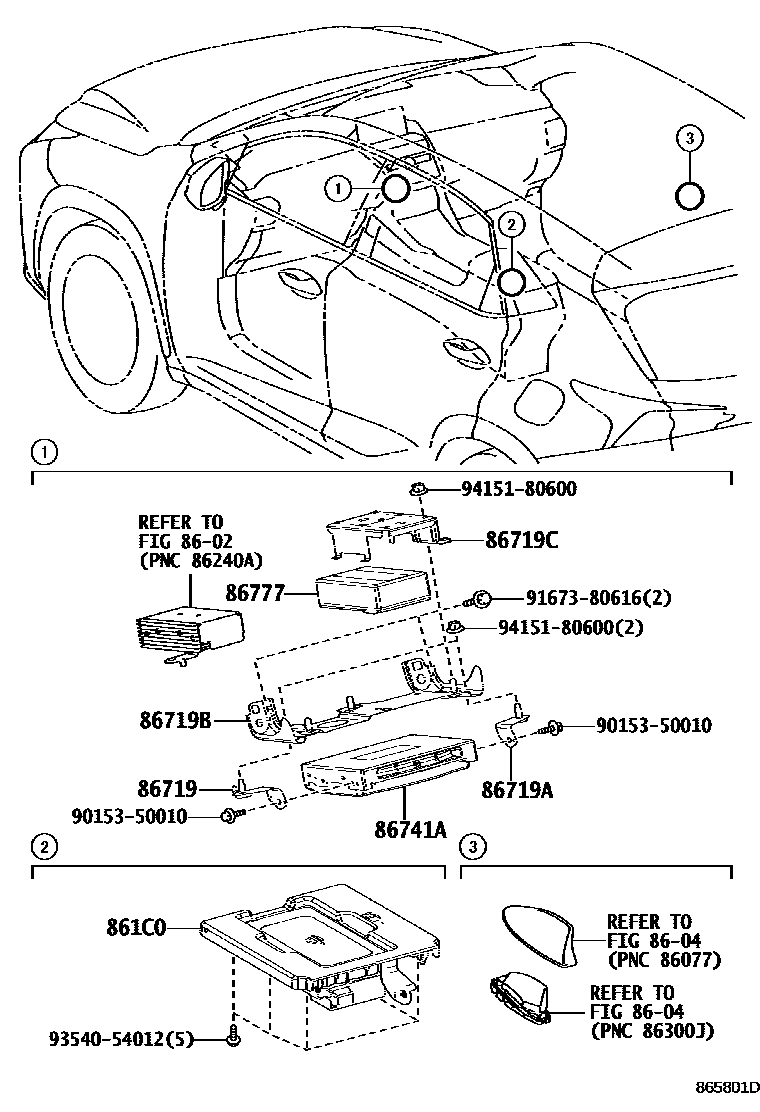

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

8602

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-78010iAGZ1#,AYZ1#201407-201709

sub861C0-78011

main861C0-78020iAGZ1#,AYZ1#201709-201801

sub861C0-78021

main861C0-78021iAGZ1#,AYZ1#201802-201910

sub861C0-78022

main861C0-78022iAGZ1#,AYZ1#201911

86719BRACKET, TELEPHONE

main86719-78010iAGZ1#,AYZ1#201407-201609

86719ABRACKET, TELEPHONE NO.1

main86719-78020iAGZ1#,AYZ1#201407-201609

86719BBRACKET, TELEPHONE NO.2

main86719-78030iAGZ1#,AYZ1#201407-201709

main86719-78060iAGZ1#,AYZ1#201709

86719CBRACKET, TELEPHONE NO.3

main86719-78040iAGZ1#,AYZ1#201407-201609

86741ATRANSCEIVER, TELEMATICS

main86740-78060iAGZ1#,AYZ1#201609-201709

main86740-78110iAGZ1#,AYZ1#201709-202007

main86741-11041iAGZ1#,AYZ1#202007-202106

sub86741-11042

main86741-11042iAGZ1#,AYZ1#202107

main86741-78050iAGZ1#,AYZ1#201407-201609

sub86740-78060

86777BATTERY, MAYDAY

main86777-76040iAGZ1#,AYZ1#201407-201609

9015350010

main90153-50010

9167380616

main91673-80616

9354054012

main93540-54012

9415180600

main94151-80600

13 parts on this diagram · 3 diagrams in section
