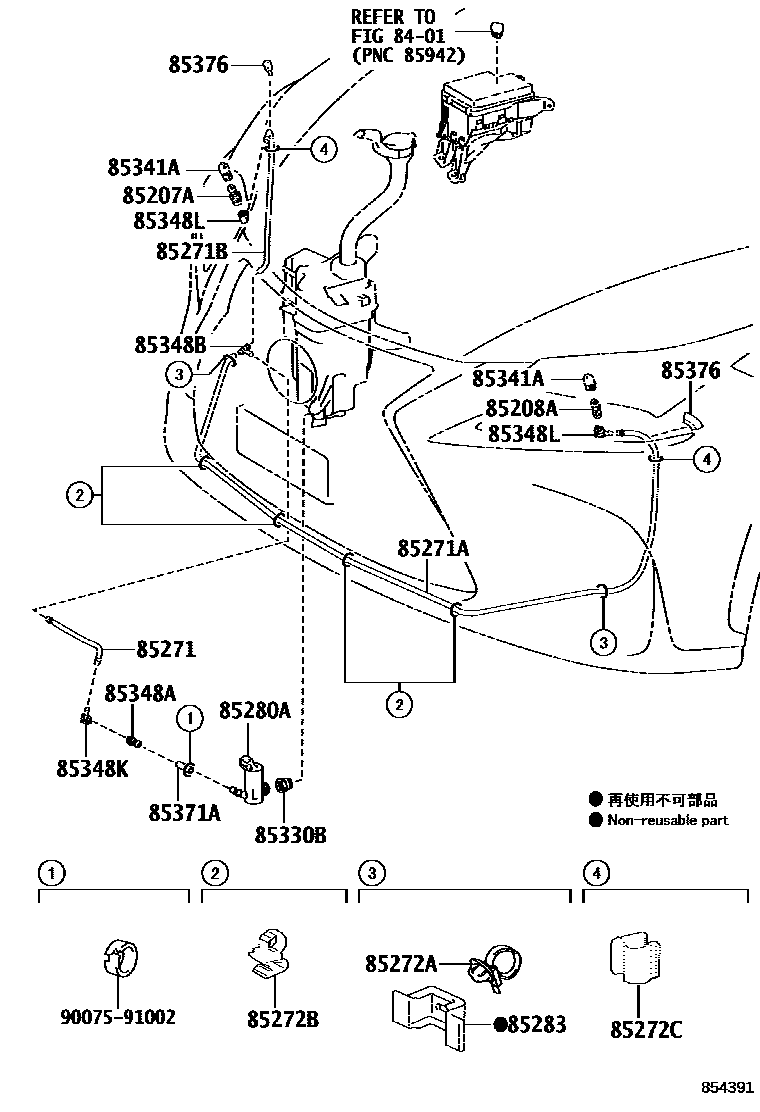

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85283BRACKET, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
9007591002
main90075-91002
20 parts on this diagram · 2 diagrams in section
