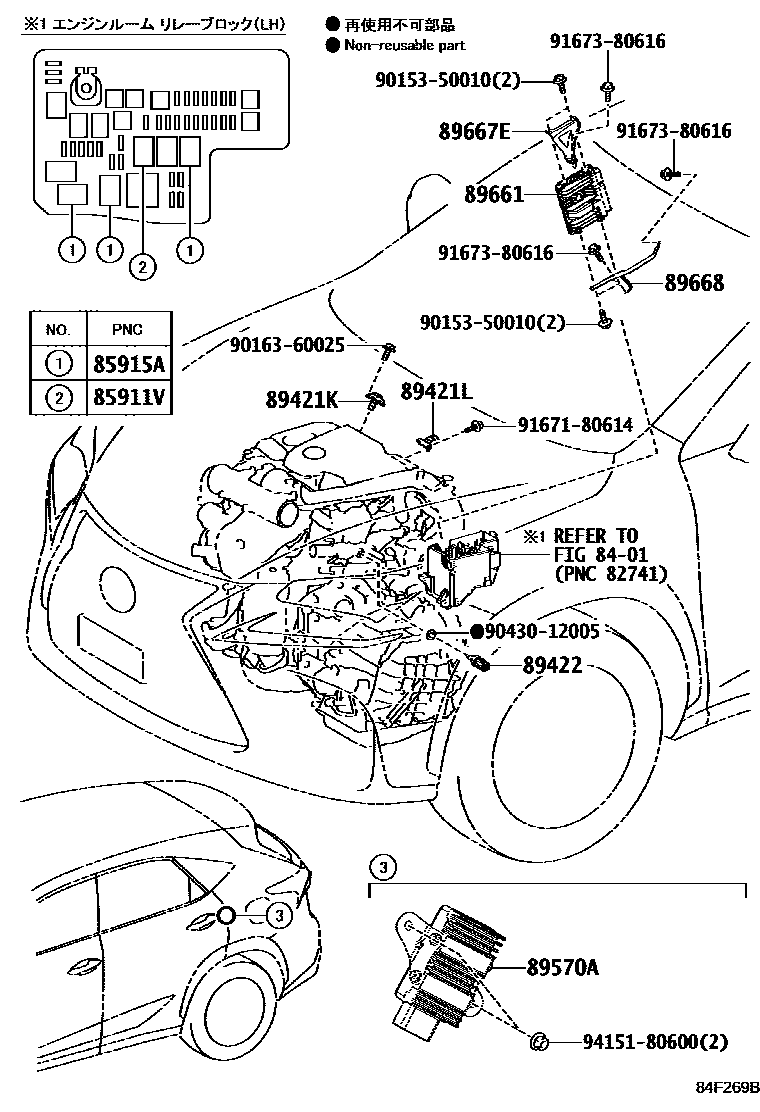

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85911VRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iAGZ1#201407-201709

85915ARELAY, MAIN

main90987-02027iAYZ1#201407-201709

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAYZ1#201407-201709

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78010iAGZ1#201407-201709

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78020iAGZ1#201407-201709

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAGZ1#,AYZ1#201407-201709

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-78010iAGZ1#,AYZ1#201407-201709

89661COMPUTER, ENGINE CONTROL

main89661-78030iAGZ10201407-201511

sub89661-78031

main89661-78031iAGZ10201512-201606

main89661-78032iAGZ10201607-201709

main89661-78040iAGZ15201407-201606

main89661-78041iAGZ15201607-201709

main89661-78220iAYZ1#201407-201609

main89661-78360iAYZ1#201609-201709

main89661-78520iAYZ1#201709-201805

main89661-78580iAGZ10201709-201805

main89661-78590iAGZ15201709-201805

main89661-78700iAGZ10201805-201905

main89661-78710iAGZ15201805-201905

main89661-78780iAYZ1#201805-202007

main89661-78A90iAGZ10201905-201912

sub89661-78A91

main89661-78A91iAGZ10202001-202007

main89661-78B00iAGZ15201905-201912

sub89661-78B01

main89661-78B01iAGZ15202001-202007

main89661-78F00iAGZ10202007-202109

main89661-78F10iAGZ15202007-202109

main89661-78G20iAYZ1#202007-202109

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42060iAYZ1#201407-202109

main89667-78010iAGZ1#201407-202109

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48180iAYZ1#201407-202109

main89668-78010iAGZ1#201407-202109

9015350010

main90153-50010

9016360025

main90163-60025

9043012005

main90430-12005

9167180614

main91671-80614

9167380616

main91673-80616

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
