WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1����� 0004 1����� 0005 1������������ & ����� 0006 1��� 0007 1��� & ��� 0008 1��� 0009 1��������� 0010 1����� & ������ 0011 1����� & ������ 0012 1���������� 0013 1���� 1/2 0014 1���� 2/2

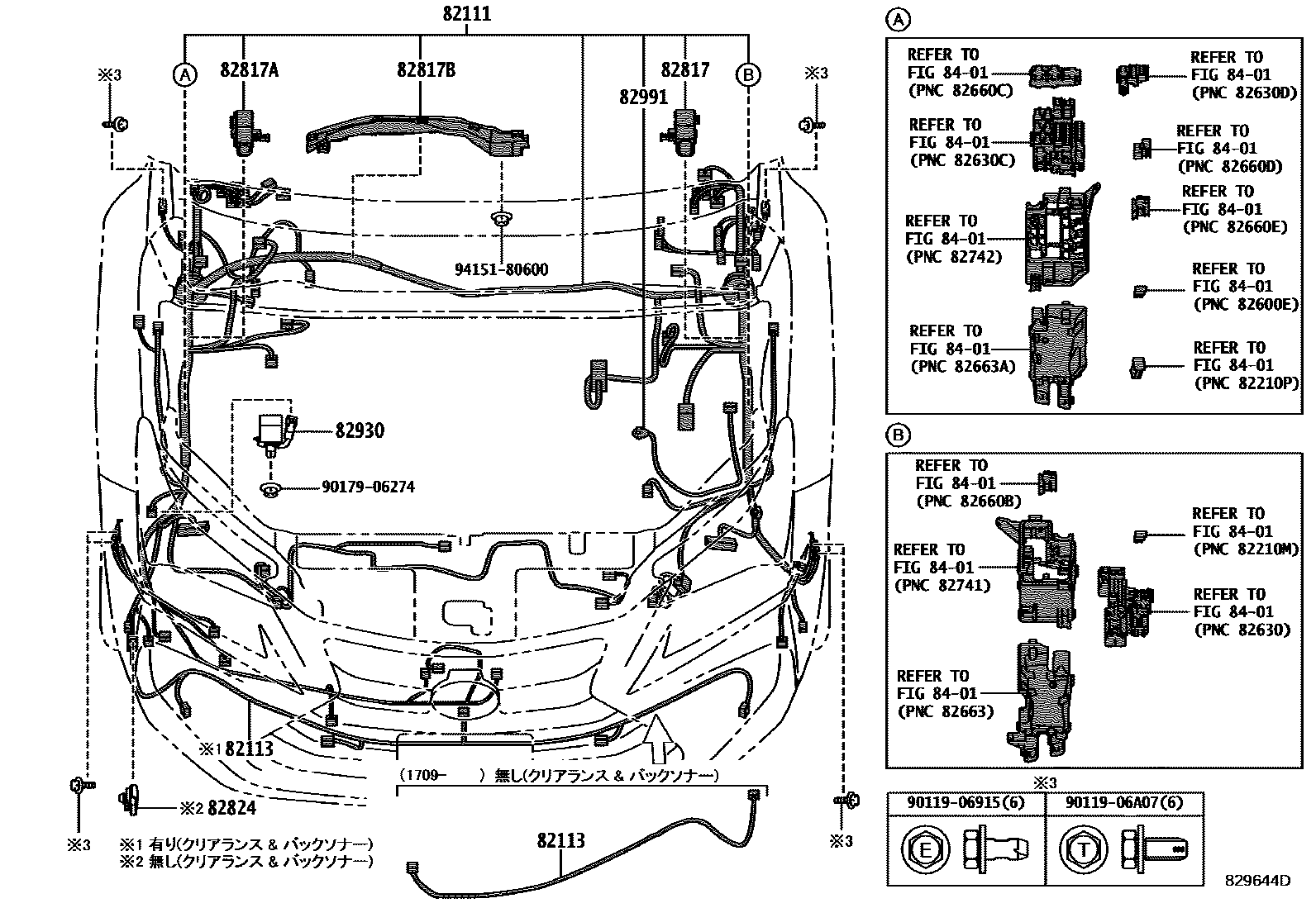

82111WIRE, ENGINE ROOM MAIN

main82111-78220iAGZ1#201407-201709

main82111-78350iAGZ1#201709-201905

main82111-78380iAYZ1#201407-201709

main82111-78540iAYZ1#201709-201905

main82111-78570iAGZ1#201709-201905

main82111-78620iAYZ1#201709-201905

main82111-78770iAGZ1#201905-202007

main82111-78780iAYZ1#201905-202007

main82111-78800iAGZ1#201905-202007

main82111-78810iAYZ1#201905-202007

main82111-78D40iAGZ1#202007

main82111-78D50iAGZ1#202007

main82111-78E10iAYZ1#202007

main82111-78E30iAYZ1#202007

82113WIRE, ENGINE ROOM, NO.3

main82113-78020iAGZ1#,AYZ1#201407-201709

main82113-78050iAGZ1#,AYZ1#201407-201709

main82113-78060iAGZ1#,AYZ1#201905-202007

main82113-78070iAGZ1#,AYZ1#201905-202007

main82113-78070iAGZ1#,AYZ1#202007

main82113-78070iAGZ1#,AYZ1#201905-202007

main82113-78080iAGZ1#,AYZ1#201709-201905

main82113-78100iAGZ1#,AYZ1#201709-201905

main82113-78100iAGZ1#,AYZ1#201709-201905

main82113-78120iAGZ1#,AYZ1#201709-201905

main82113-78120iAGZ1#,AYZ1#201709-201905

main82113-78210iAGZ1#,AYZ1#201905-202007

main82113-78210iAGZ1#,AYZ1#201905-202007

main82113-78210iAGZ1#,AYZ1#202007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42750iAGZ1#,AYZ1#201407-201709

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-42760iAGZ1#,AYZ1#201407-201709

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-42470iAGZ1#201407-201709

main82817-48L00iAYZ1#201407-201709

82824CONNECTOR, WIRING HARNESS

main82824-78100iAGZ1#,AYZ1#201407-202007

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-53010iAGZ1#,AYZ1#201407-201709

82991WIRE, FUSIBLE LINK REPAIR

main82991-78010iAGZ1#201407-201709

8401

9011906915

main90119-06915

9011906A07

main90119-06A07

9017906274

main90179-06274

9415180600

main94151-80600

13 parts on this diagram · 14 diagrams in section
